Nitum_R
88568Z15
Indoor / Downlights
Downlights
3 x powerLED 2 W DC 220 mA
IP | IP44 |
---|---|
Optisch | Spot |
Grad | 19° |
CCT | RGB K |
Leuchten Lichtstrom | 114 lm |
Ausrüstungen | Weiß |
Einbaulage | Wand, Decke |
Kontrolle | |
Wirkungsgrad | 55.1 lm/W |
Quelle Typ | powerLED |
Technische Beschreibung

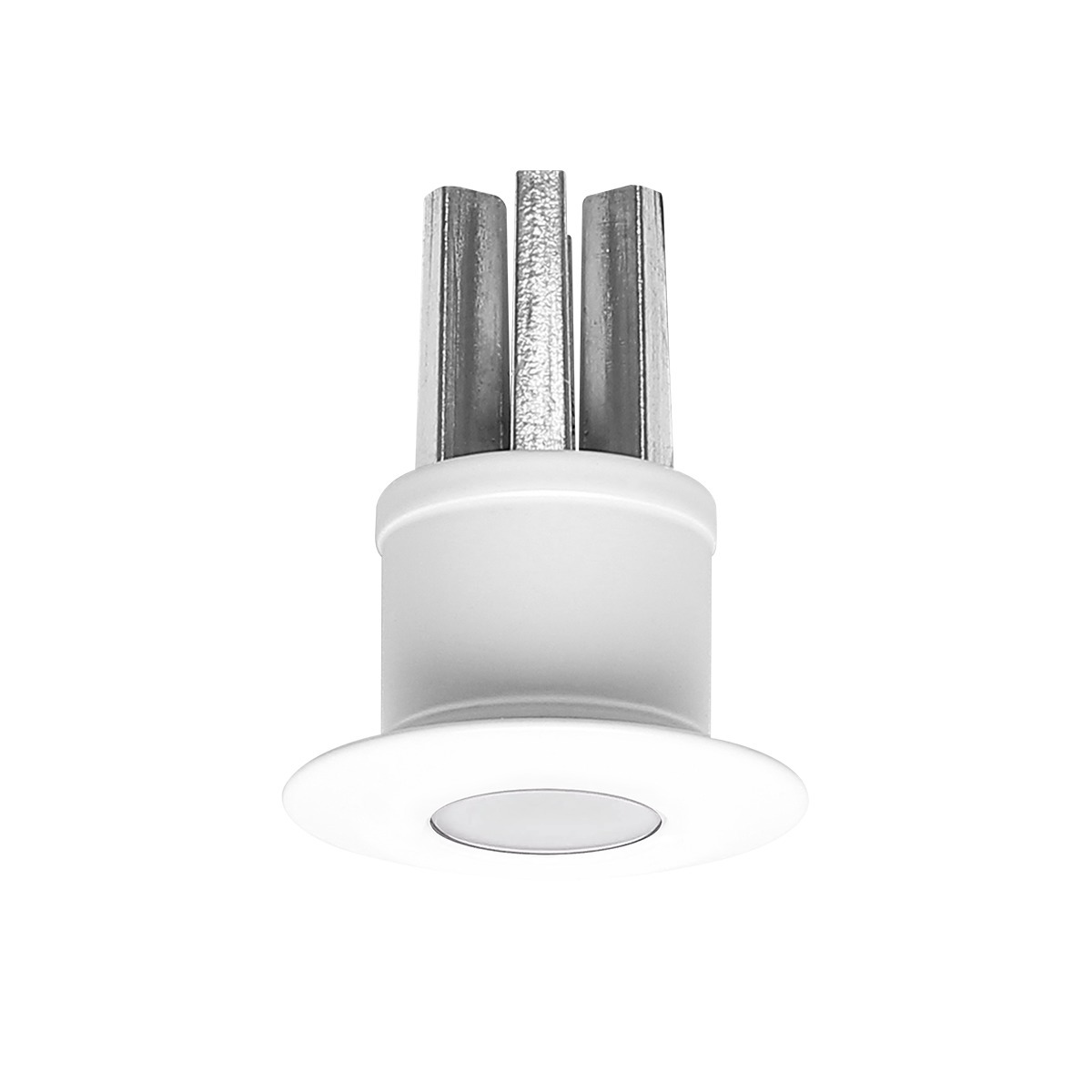

Single emission recessed downlights for indoor application. The RGB LED light source with a spot light distribution is composed of 3 powerled LEDs.
The device body is made of brass and features a white finish, processed by means of coating. The ingress protection degree is IP44; the total weight is of 0.072 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 2 W. The power supply cable is included and features a 0.12 m length.
The device features protection class III and can be wall lights or ceiling-mounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 84901(for concrete or masonry).
Compliant with the EN 60598-1 standard and its specific provisions.
Elektronik
Code C-E500015
Real-T_PRO | DMX/RDM Multi Channel and Power 4Ch 220mA | Multi Channel 4ch. 19~50V DC
Familie | Multi Channel |
---|---|
IP | IP40 |
Operation | CC |
