Silicone
C0054NDI05019
Outdoor / Flex Lights
LED Strip | 800 topLED 60 W DC 24 V
12 W/m | 1464 Lm/m
| IP | IP67 |
|---|---|
| Optisch | Diffused |
| Grade | 129° |
| CCT | 4000 K |
| CRI | 85 |
| Leuchten Lichtstrom | 8266 lm |
| Einbaulage | Wand, Decke |
| Kontrolle | |
| Wirkungsgrad | 137.8 lm/W |
| Quelle Typ | topLED |
| Listenpreis (exkl. MwSt.) | 110,00 € |
| Produktkategorie | A |
Technische Beschreibung

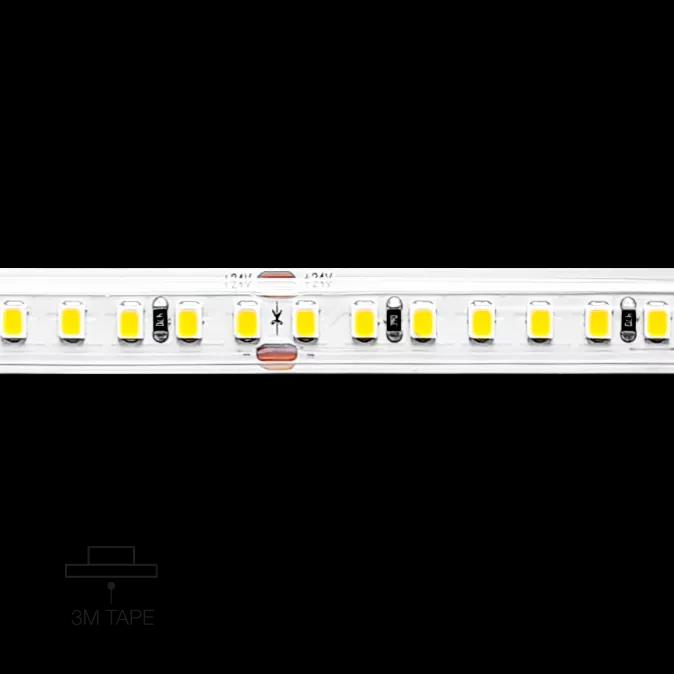

Single emission led strip for outdoor application. The natural white LED light source with a diffused light distribution is composed of 800 stripled LEDs with CCT of 4000 K and a CRI 85; the source luminous flux is 8266 lm, with a 137.8 lm/W nominal luminous efficacy.
The device body is made of technopolymer and features a white finish.
The ingress protection degree is IP67; the total weight is of 0.4 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 60 W The power supply cable is included and features a 0.3 m length.
The device features protection class III and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Elektronik
Code 99374
Reson_75 | On/Off Driver - Output 3.12A 24V 1-75W | On/Off Driver 198~264V AC / 176~275V DC 75 W
| Familie | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CV |
Code 99332
Reson_150 | 0/1-10V Driver 24 V - Output 6.25A 24V 1-150W | 1-10V Controller
| Familie | Controller |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 99331
Reson_150 | On/Off Driver 24V - Output 6.25A 24V 1-150W | On/Off Driver 198~264V AC / 176~275V DC 150 W
| Familie | On/Off Driver |
|---|---|
| IP | IP65 |
| Operation | CV |
Code 83333
Power | DALI2 PUSH driver 24V - Output 6.3A 24V 1-150W | Push and Simply Dim Controller
| Familie | Controller |
|---|---|
| IP | IP67 |
| Operation |
Sie haben 4 Produkte aus 5 gesehen
Herunterladen
Dokumentation

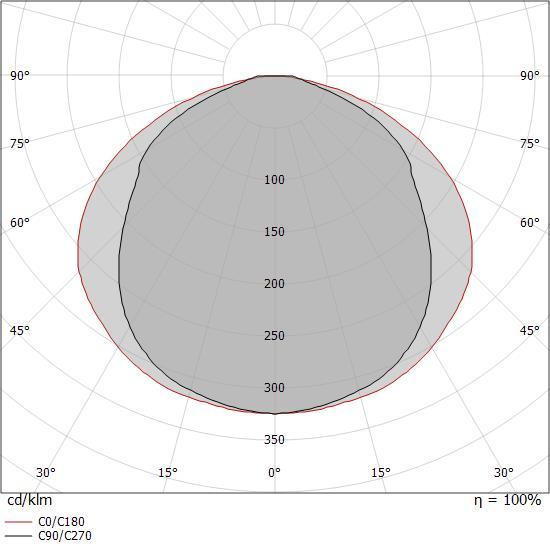

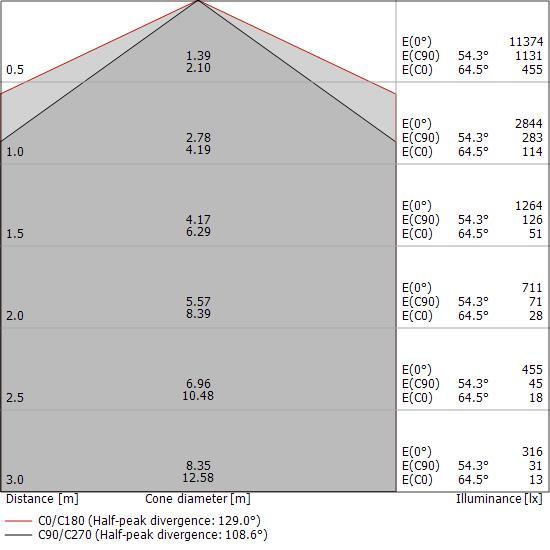

Photometrische Daten
File BIM .rfa
2D/3D Zeichnung
Zubehör
