Tara_B
9016
Indoor / Deckenlampen
Deckenleuchten | 198-264 V
4 topLED 38 W DC - 44 W AC








| IP | IP40 |
|---|---|
| Optisch | Diffused |
| Grade | 115.6° |
| CCT | 3000 K |
| CRI | 90 |
| Leuchten Lichtstrom | 2963 lm |
| Ausrüstungen | Text black RAL 9005 |
| Einbaulage | Wand, Decke |
| Kontrolle | |
| Wirkungsgrad | 67.3 lm/W |
| Quelle Typ | topLED |
| Listenpreis (exkl. MwSt.) | 285,00 € |
| _availabilityClass | A |
Technische Beschreibung

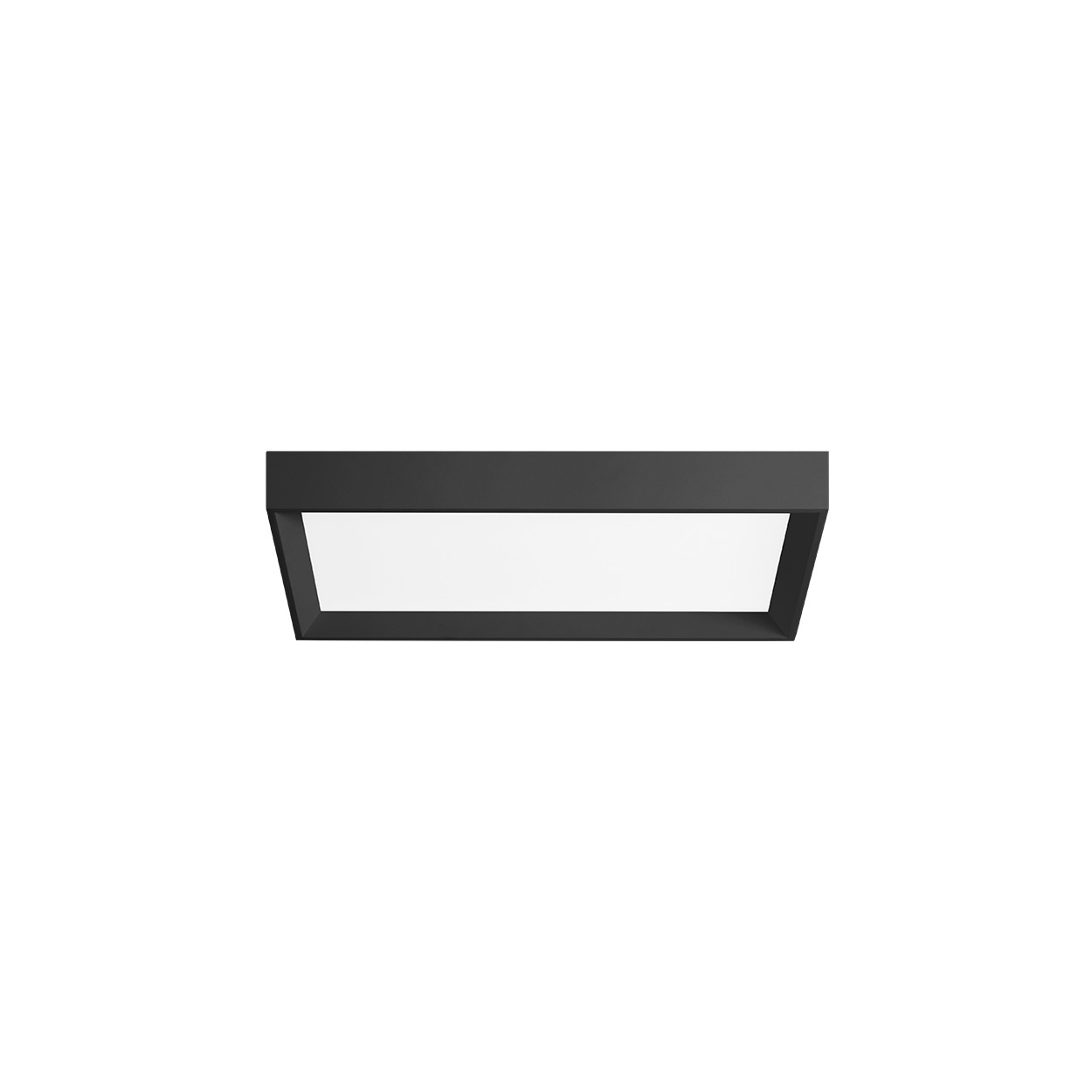

Single emission ceiling downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 4 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 4680 lm, with a 123.2 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a black ral 9005 finish, processed by means of coating; the diffuser is made of pmma with a sandblasting treatment; the mounting frame is made of iron, with a zinc finish, processed by means of washing.
The ingress protection degree is IP40; the total weight is of 4.000 kg.
The total absorbed power is 44 W
The device features protection class I and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
