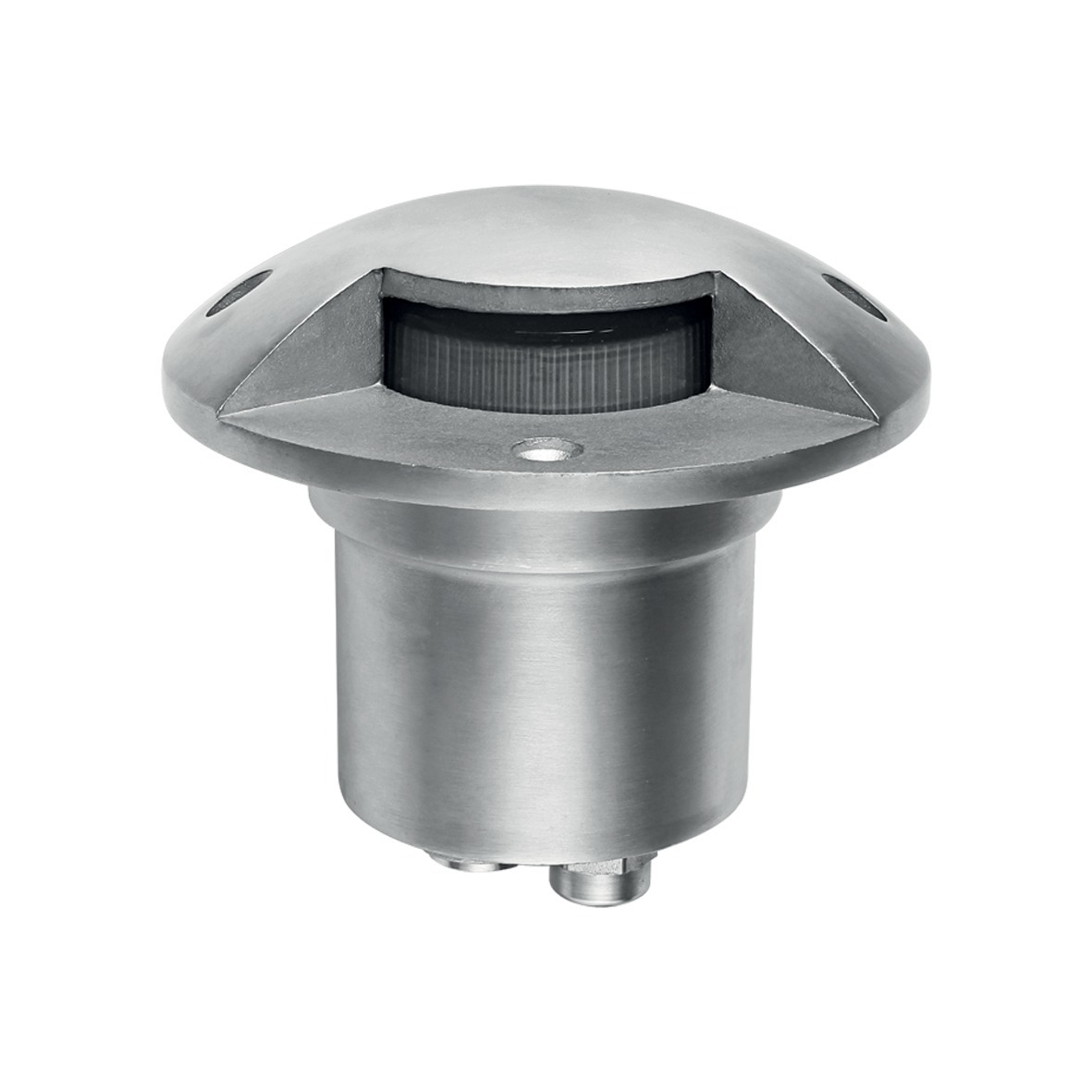

Alcor316_R1
C00715SEMRU
Outdoor / Uplights, Step lights
Uplights | 180-264 V AC /230-280 V DC
1 arrayLED 4.5 W DC - 6.3 W AC
| IP | IP67 |
|---|---|
| IK | 10 |
| Optic | Radial Mono-directional Emission |
| Degrees | 180° |
| CCT | 2700 K |
| CRI | 80 |
| Delivered lumens | 39 lm |
| Finishes | Stainless Steel |
| Installation position | Floor |
| Control | |
| Efficiency | 6.2 lm/W |
| Source Type | arrayLED |
Technical description
Single emission uplights for outdoor application. The super warm white LED light source with a radial mono-directional emission light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 646 lm, with a 143.6 lm/W nominal luminous efficacy.
The device body is made of aisi 316 steel and features a steel finish, processed by means of electropolishing. The ingress protection degree is IP67; the total weight is of 1.3 kg.
The total absorbed power is 6.3 W. The power supply cable is included and features a 1 m length.
The device features protection class I and can be floor-mounted with an outer casing, code 84341(for concrete or masonry).
Compliant with the EN 60598-1 standard and its specific provisions.
