Antigua_FL

9316

Indoor / Table and Floor Lamps

Floor Lamp | 220-240 V

1 stripLED 32 W DC - 39 W AC

IP
IP20
Optic
Diffused
Degrees
180°
CCT
3000 K
CRI
90
Delivered lumens
2000 lm
Finishes
Black
Installation position
Floor
Control
Efficiency
51.3 lm/W
Source Type
stripLED

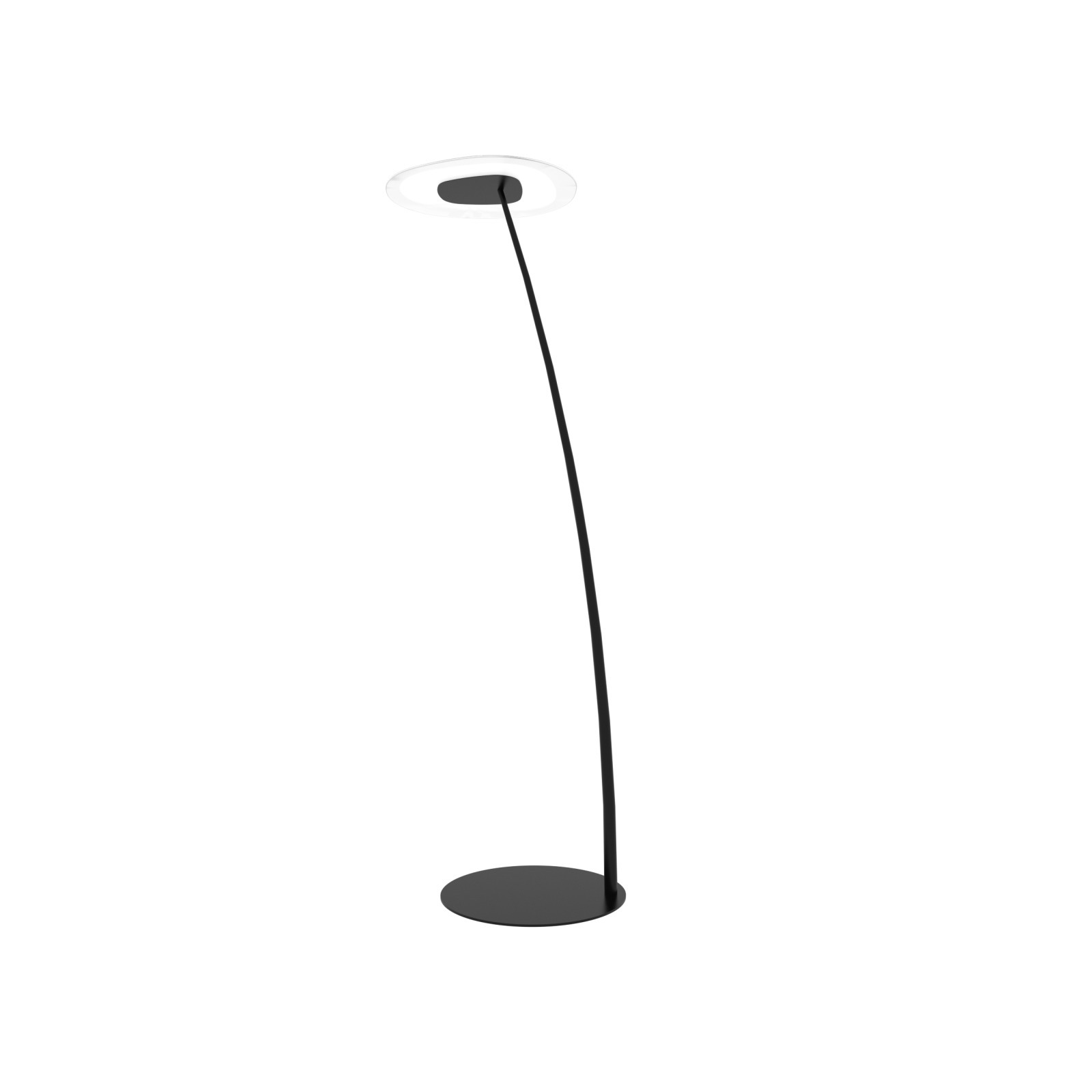

Double emission floor lamp for indoor application. The warm white LED light source with a diffused light distribution is composed of 96 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 2796 lm, with a 87.4 lm/W nominal luminous efficacy.

The device body is made of iron and features a black finish, processed by means of coating; the diffuser is made of glass with a sandblasting treatment; the mounting frame is made of iron, with a black finish, processed by means of coating. The ingress protection degree is IP20; the total weight is of 16.750 kg.

The total absorbed power is 39 W. The power supply cable is included and features a 3 m length.

The device features protection class II and can be floor-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.
