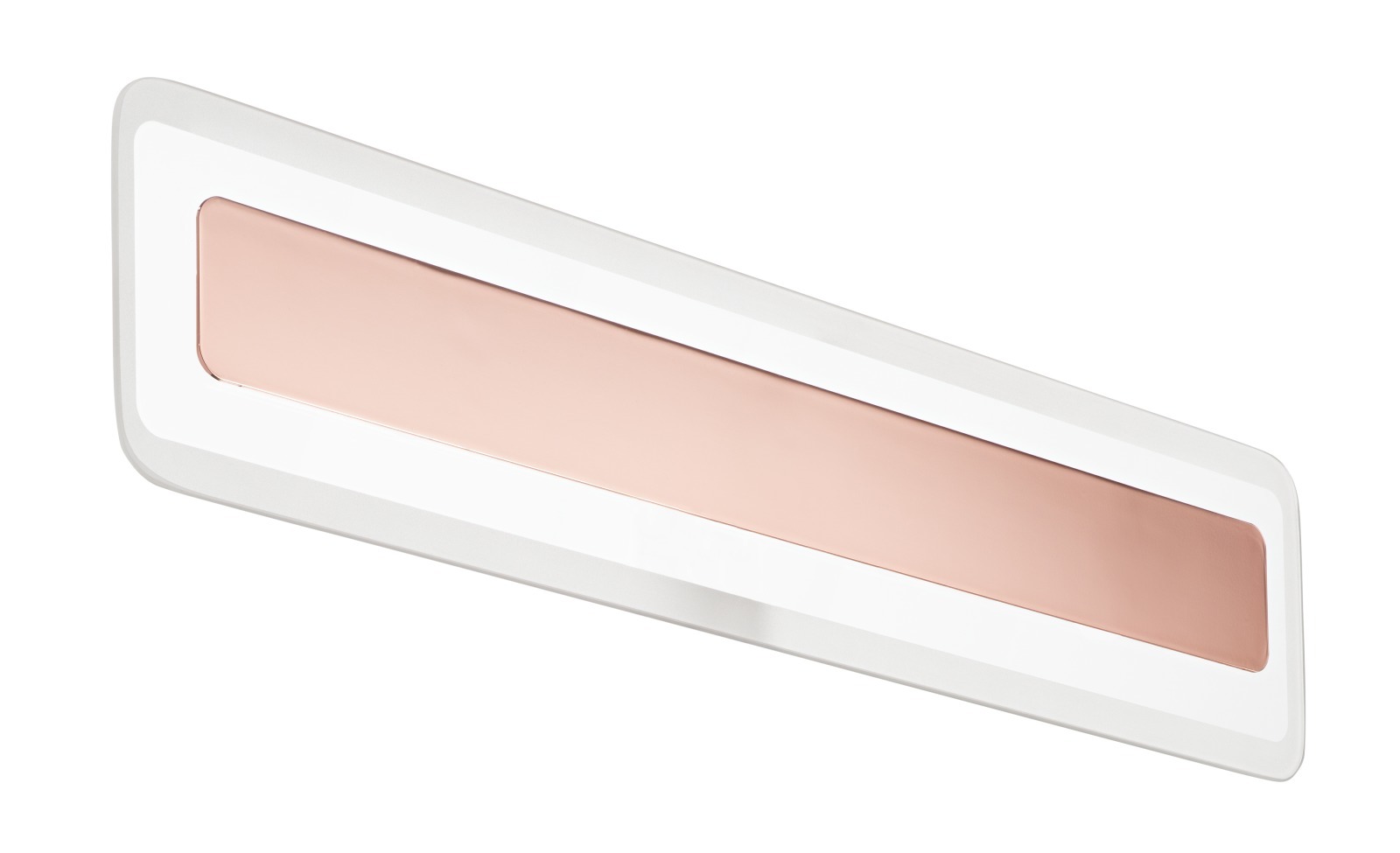

Antille_S
8887
Indoor / Ceiling Lights, Wall Mounted Lights
Wall Lights - Ceiling Downlights | 220-240 V
2 stripLED 23 W DC - 28 W AC










IP | IP20 |
---|---|
Optic | Diffused |
Degrees | 159.4° |
CCT | 3000 K |
CRI | 90 |
Delivered lumens | 2912 lm |
Finishes | Copper |
Installation position | Wall lights, Ceiling |
Control | |
Efficiency | 104.0 lm/W |
Source Type | stripLED |
Technical description
Double emission wall lights, ceiling downlights or ceiling downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 176 stripled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 3363 lm, with a 146.2 lm/W nominal luminous efficacy.
The device body is made of iron and features a copper finish, processed by means of electroplating; the diffuser is made of glass with a sandblasting treatment; the mounting frame is made of iron, with a white finish, processed by means of coating. The ingress protection degree is IP20;
The total absorbed power is 28 W.
The device features protection class I and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
