Archiline_A
92100Q25
Outdoor / Linear Lighting
Lines | 85-277 V
12 x powerLEDs 13.2 W DC - 14.5 W AC















IP | IP67 |
---|---|
IK | 10 |
Optic | Elliptical |
CCT | RGB-W 4000 K |
Delivered lumens | -- |
Finishes | Anodized aluminum |
Installation position | Wall lights, Floor |
Control | DMX-RDM |
Source Type | powerLEDs |
Technical description

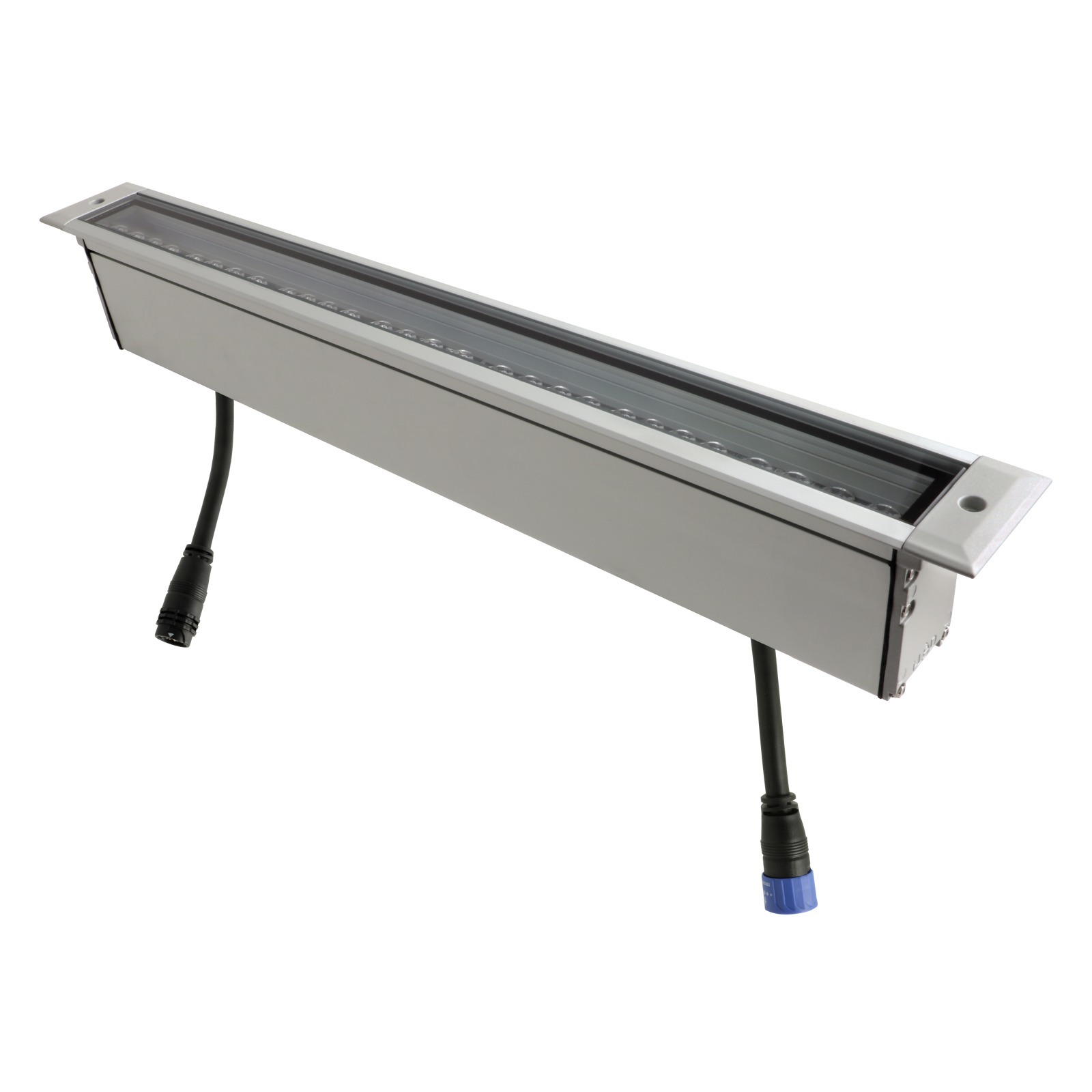

Single emission lines for outdoor application. The RGBW - 4000 K LED light source with a elliptical light distribution is composed of 12 powerled LEDs with CCT of RGB-W 4000 K.
The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg.
The total absorbed power is 13.2 W. The power supply cable is included and features a 0.2 m length.
The device features protection class I and can be wall lights or floor-mounted with an outer casing, code 98671(for concrete or masonry).
Compliant with the EN 60598-1 standard and its specific provisions.
