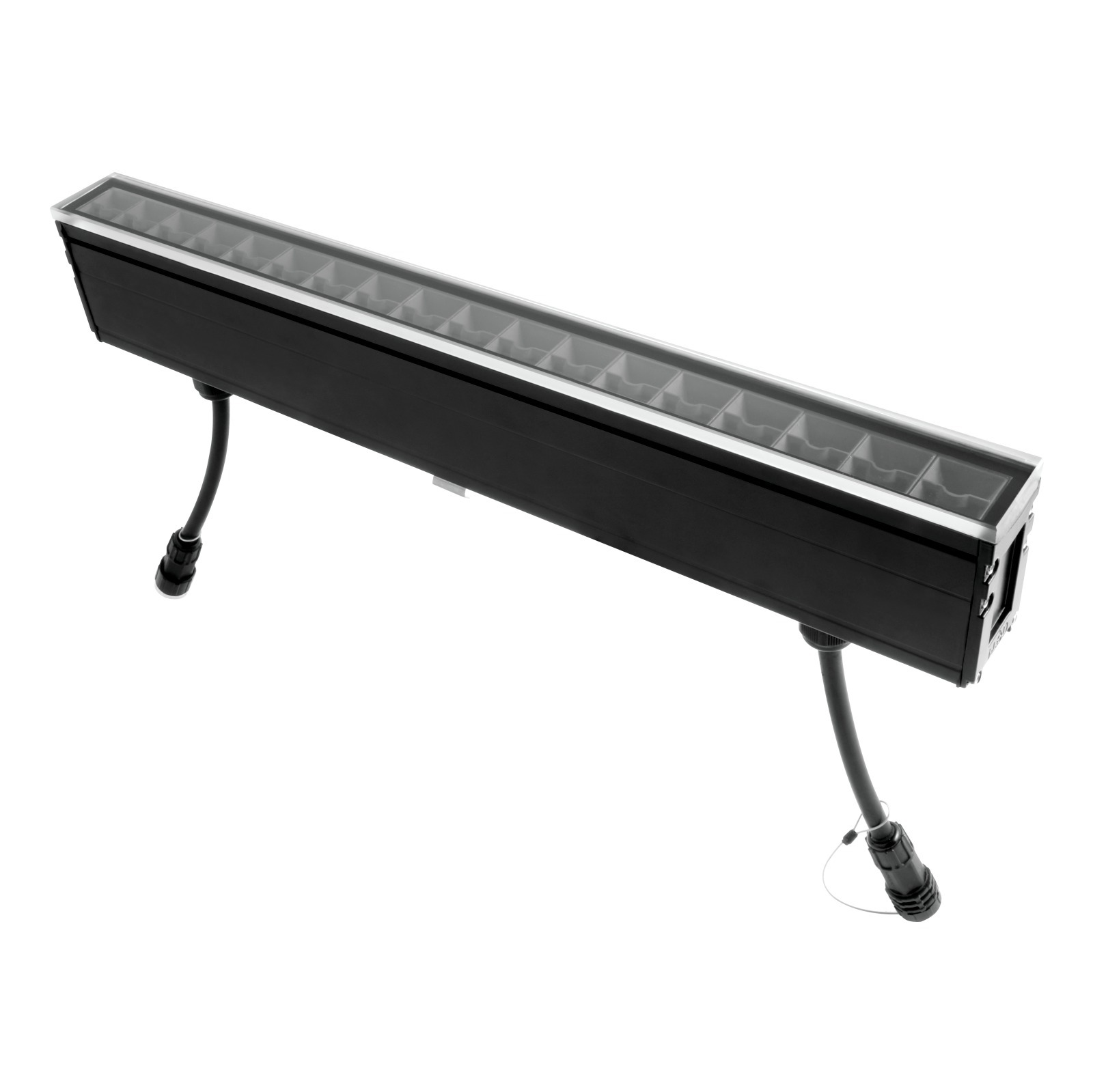

Archiline_F Anti-glare

81594N15

Outdoor / Linear Lighting

Lines | 220-240 V

11 x powerLEDs 11.2 W DC - 14 W AC

IP
IP67
IK
10
Optic
Spot
CCT
4000 K
CRI
80
Delivered lumens
809 lm
Finishes
Black anodised aluminum
Installation position
Floor
Control
DALI
Efficiency
64.7 lm/W
Source Type
powerLEDs

Single emission lines for outdoor application. The natural white LED light source with a spot light distribution is composed of 11 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 1958 lm, with a 174.8 lm/W nominal luminous efficacy.

The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg.

The total absorbed power is 14 W. The power supply cable is included and features a 0.2 m length.

The device features protection class I and can be floor-mounted with an outer casing, code 98724(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.
