Archiline_F Anti-glare

81595N25

Outdoor / Linear Lighting

Lines | 220-240 V

18 x powerLEDs 18.3 W DC - 20.5 W AC

IP
IP67
IK
10
Optic
Elliptical
CCT
4000 K
CRI
80
Delivered lumens
1479 lm
Finishes
Black anodised aluminum
Installation position
Floor
Control
DALI
Efficiency
72.1 lm/W
Source Type
powerLED

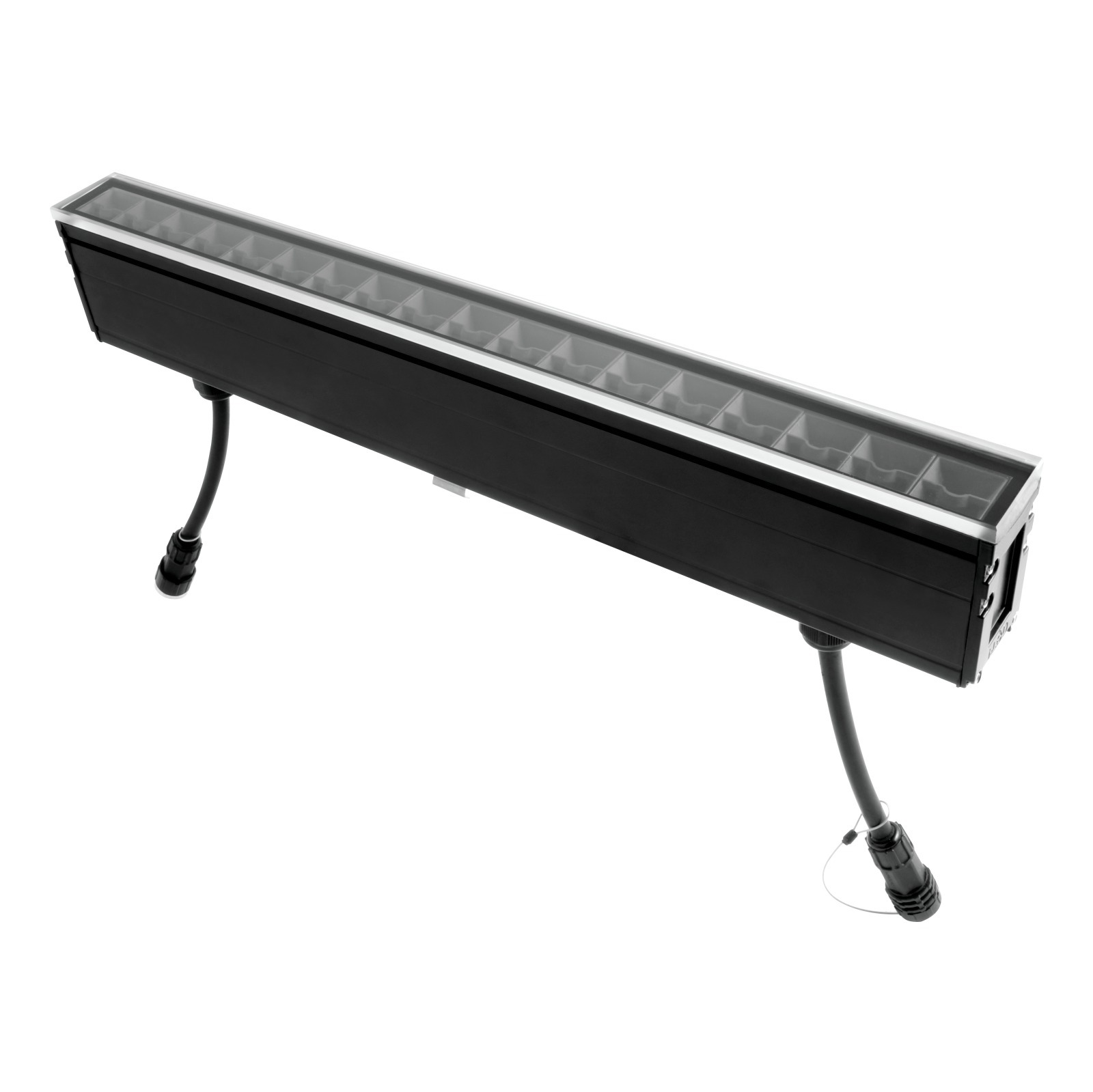

Single emission lines for outdoor application. The natural white LED light source with a elliptical light distribution is composed of 18 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 3204 lm, with a 175.1 lm/W nominal luminous efficacy.

The device body is made of aluminium 6060 and features a anodised black finish, processed by means of 15 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.8 kg.

The total absorbed power is 20.5 W. The power supply cable is included and features a 0.2 m length.

The device features protection class I and can be floor-mounted with an outer casing, code 98725(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.
