Archiline_W

92072Q30

Outdoor / Wall lighting, Linear Lighting

Wall Lights - Lines | 220-240 V

24 x powerLEDs 26.4 W DC - 29 W AC

IP
IP67
IK
10
Optic
Flood
CCT
RGB-W 4000 K
Delivered lumens
--
Finishes
Anodized aluminum
Installation position
Wall lights
Control
DMX-RDM
Source Type
powerLEDs

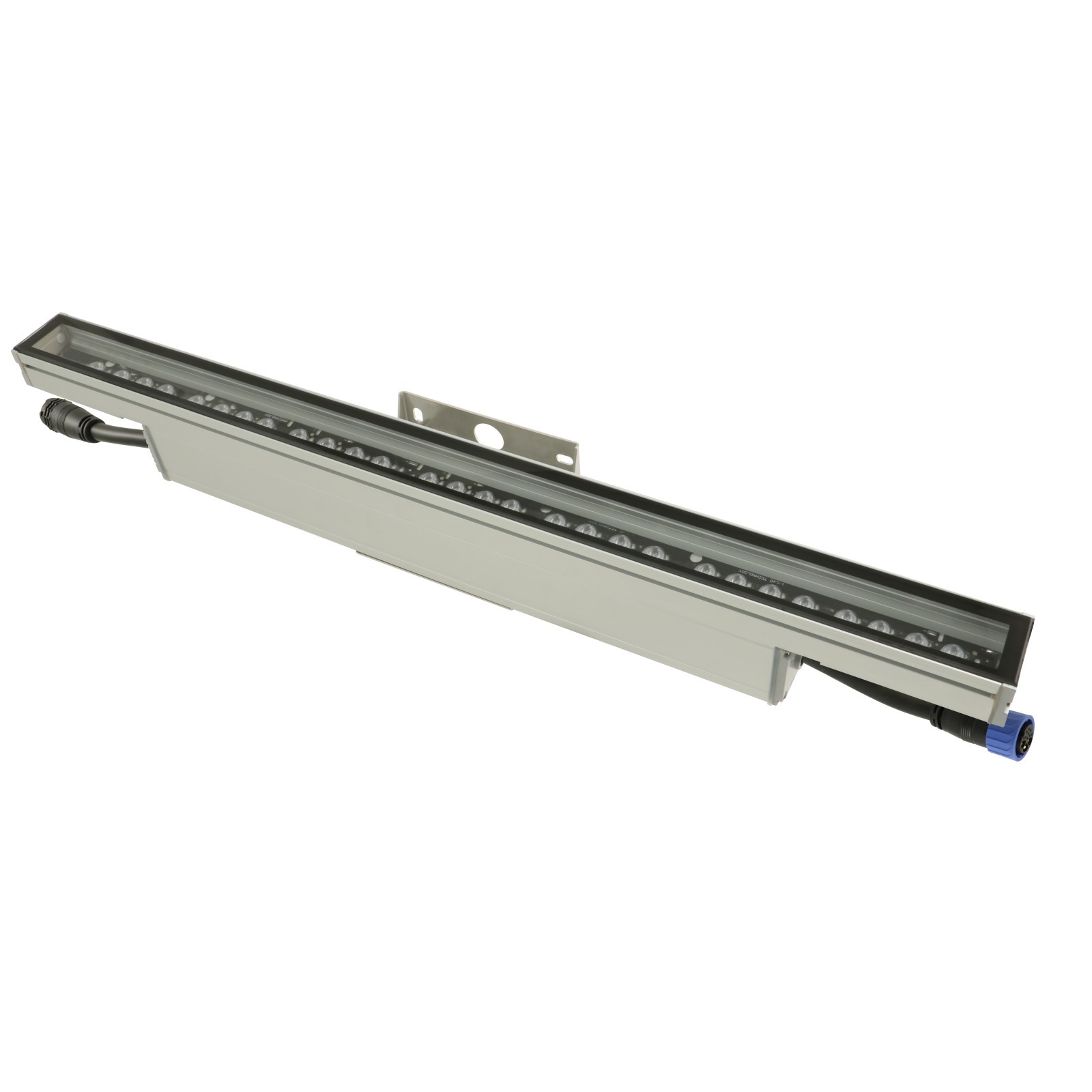

Single emission wall lights or lines for outdoor application. The RGBW - 4000 K LED light source with a flood light distribution is composed of 24 powerled LEDs with CCT of RGB-W 4000 K.

The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2 kg.

The total absorbed power is 26.4 W. The power supply cable is included and features a 0.2 m length.

The device features protection class I and can be wall lights-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

2D/3D Drawings

TM66

Accessories
