Aruba_P
8930
Indoor / Pendant Lights
Pendant Luminaires | 220-240 V
1 stripLED 17 W DC - 19 W AC









IP | IP20 |
---|---|
Optic | Diffused |
Degrees | 180° |
CCT | 3000 K |
CRI | 90 |
Delivered lumens | 1794 lm |
Finishes | Copper |
Installation position | Ceiling |
Control | |
Efficiency | 94.4 lm/W |
Source Type | stripLED |
Technical description

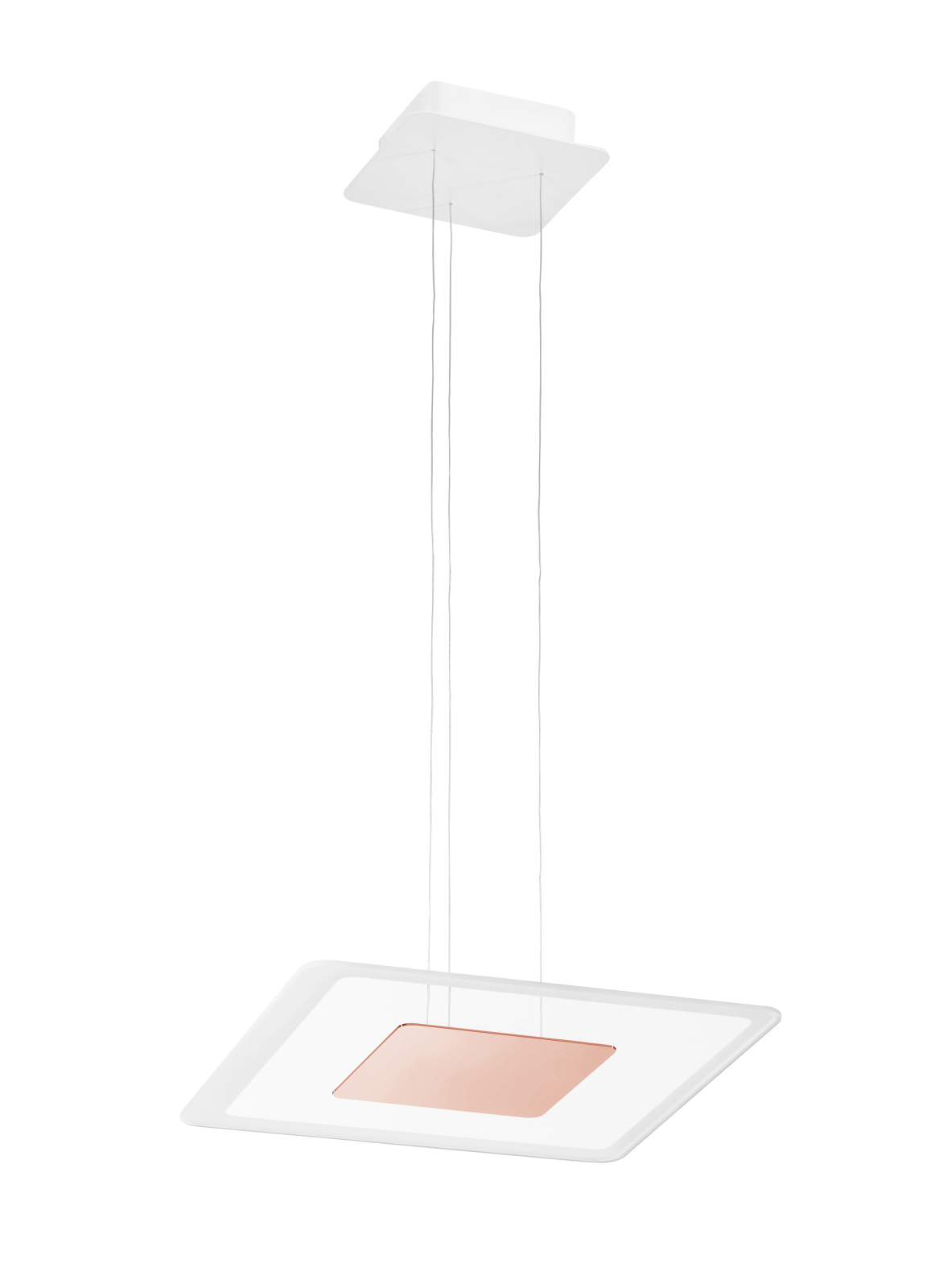

Double emission pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 72 stripled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 2212 lm, with a 130.1 lm/W nominal luminous efficacy.
The device body is made of iron and features a copper finish, processed by means of electroplating; the diffuser is made of glass with a sandblasting treatment; the mounting frame is made of iron, with a white finish, processed by means of powder coating. The ingress protection degree is IP20;
The total absorbed power is 19 W. The power supply cable is included and features a 2.5 m length.
The device features protection class I and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
