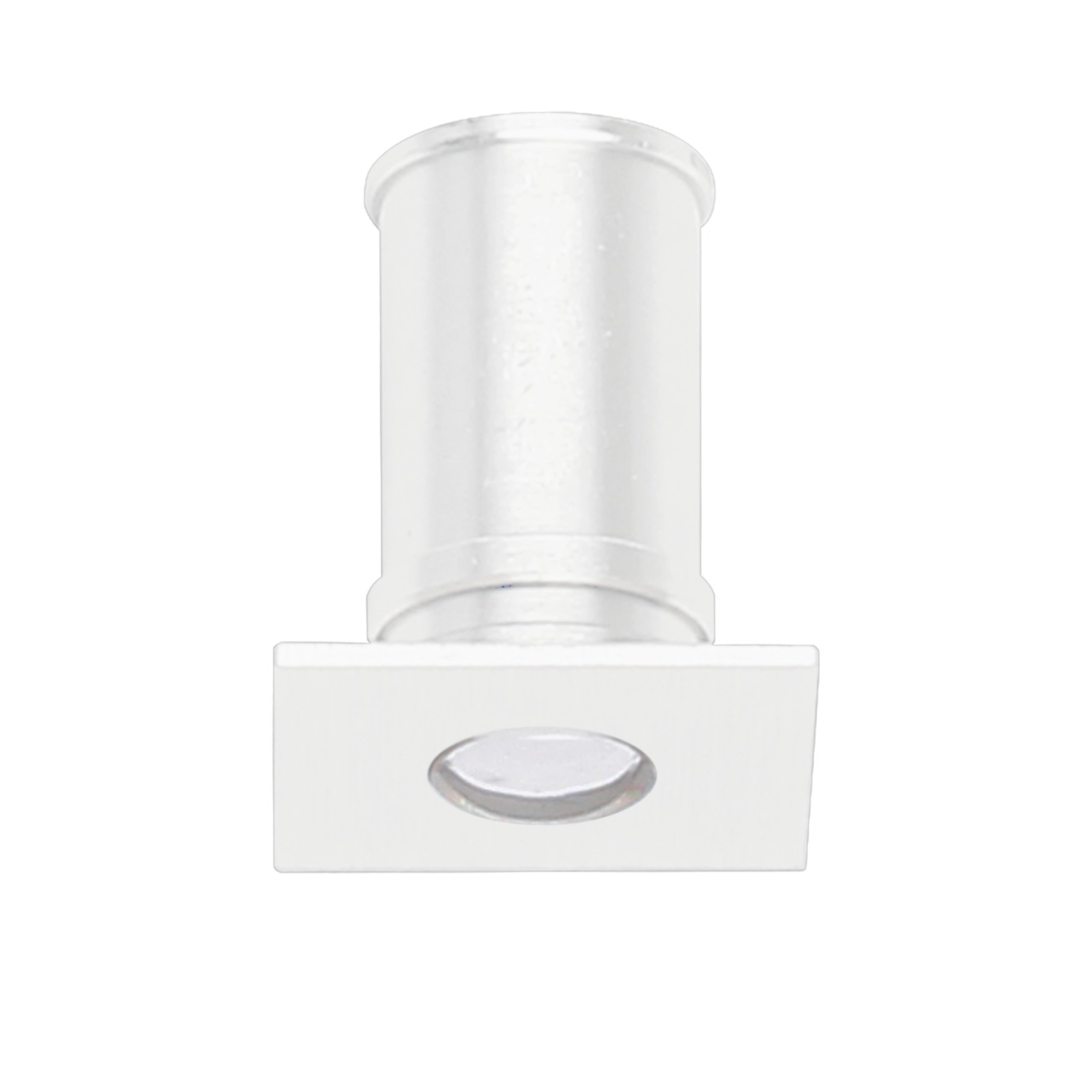

Aspho_Q
91341W70
Indoor / Recessed Downlights
Downlights
1 x powerLED 1 W DC 350 mA
| IP | IP44 |
|---|---|
| Optic | Medium Wide Flood |
| Degrees | 41.6° |
| CCT | 3000 K |
| CRI | 80 |
| Delivered lumens | 91 lm |
| Finishes | White |
| Installation position | Wall lights, Ceiling |
| Control | |
| Efficiency | 91.0 lm/W |
| Source Type | powerLED |
Technical description
Single emission recessed downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 107 lm, with a 107.0 lm/W nominal luminous efficacy.
The device body is made of brass and features a white finish, processed by means of coating. The ingress protection degree is IP44; the total weight is of 0.017 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 1 W. The power supply cable is included and features a 0.12 m length.
The device features protection class III and can be wall lights or ceiling-mounted, with a 15 mm diameter hole (in plasterboard) with an outer casing, code 84916(for concrete or masonry).
Compliant with the EN 60598-1 standard and its specific provisions.
Electronics
Code 99374
Reson_75 - On/Off Driver - 3.13 A 24 V | On/Off Driver 198~264V AC / 176~275V DC 75 W
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CV |
Code 99708
Slim - 0/1-10V Converter - 350mA 3-18V 1.6W | 1-10V Converter 24V DC
| Family | Converter |
|---|---|
| IP | IP40 |
| Operation | CC |
Code 89144
Slim - On/Off Driver - 350mA 6.6V 1-2W | On/Off Driver 198~264V AC / 180~275V DC
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CC |
Code 89145
Slim - On/Off Driver - 350mA 20V 3-6W / 350mA 20V 3.5-7W | On/Off Driver 198~264V AC / 180~275V DC
| Family | On/Off Driver |
|---|---|
| IP | IP40 |
| Operation | CC |
