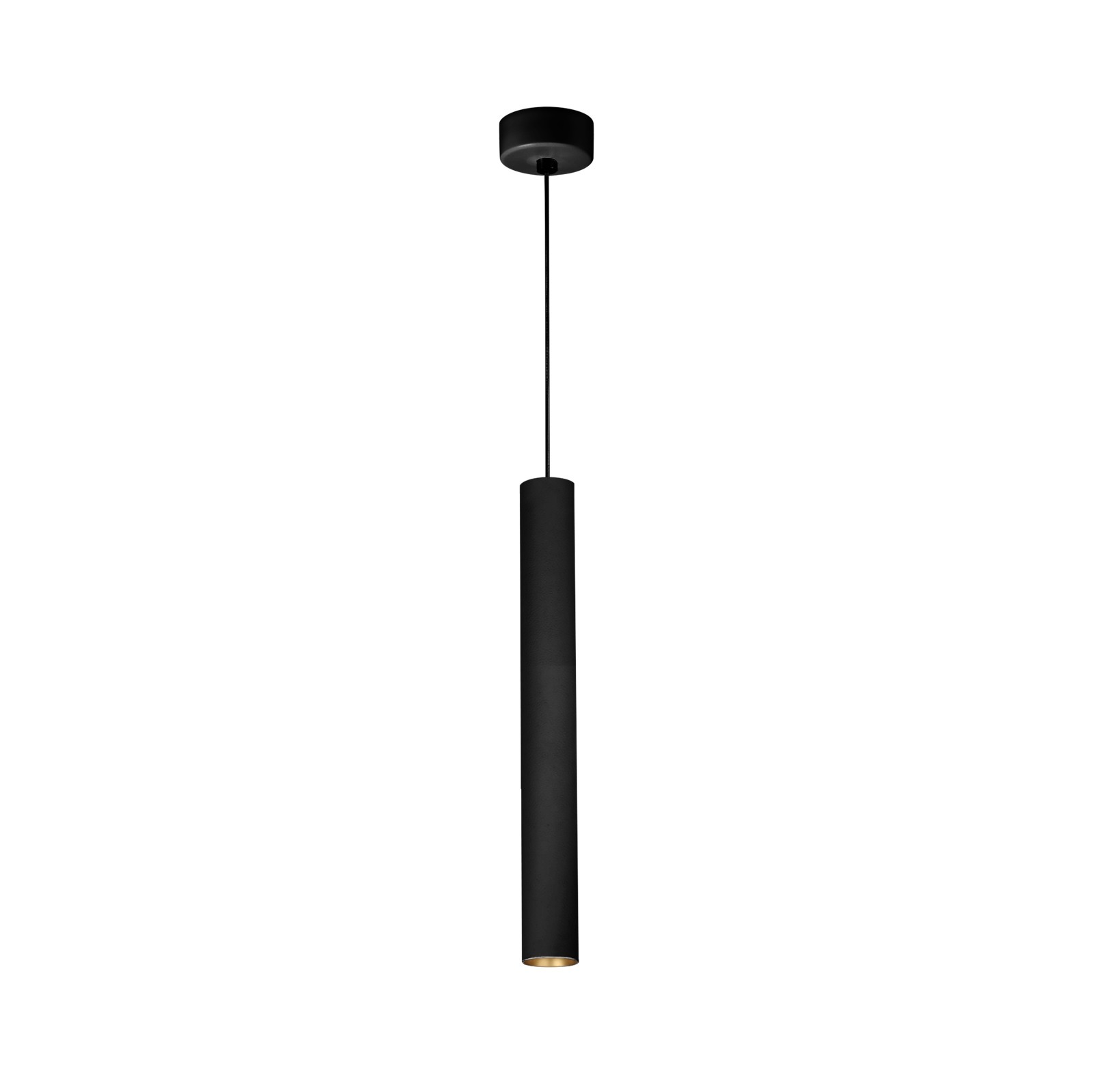

Baton_P
C00317BDWWF
Indoor / Pendant Lights
Pendant Luminaires | 220-240 V AC /176-276 V DC
1 arrayLED 3 W DC - 5 W AC
| IP | IP40 |
|---|---|
| Optic | Wide Flood |
| Degrees | 59.2° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 268 lm |
| Finishes | Gold |
| Installation position | Ceiling |
| Control | |
| Efficiency | 53.6 lm/W |
| Source Type | arrayLED |
Technical description
Single emission pendant luminaires for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 321 lm, with a 107.0 lm/W nominal luminous efficacy.
The device body is made of iron and features a black finish, processed by means of powder coating The device body is made of aluminium 6060 and features a gold finish, processed by means of liquid painting; the diffuser is made of pmma. The ingress protection degree is IP40; the total weight is of 0.62 kg.
The total absorbed power is 5 W. The power supply cable is included and features a 1,7 m length.
The device features protection class II and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
