Beebo_W Switch
7972
Indoor / Projectors, Wall Mounted Lights
Wall Lights - Projectors | 220-240 V
1 arrayLED 4 W DC - 5.1 W AC
| IP | IP20 |
|---|---|
| Optic | Medium Flood |
| Degrees | 37.6° |
| CCT | 3000 K |
| CRI | 90 |
| Optical compartment IP | IP40 |
| Delivered lumens | 434 lm |
| Finishes | White |
| Installation position | Wall lights |
| Control | |
| Efficiency | 85.1 lm/W |
| Source Type | arrayLED |

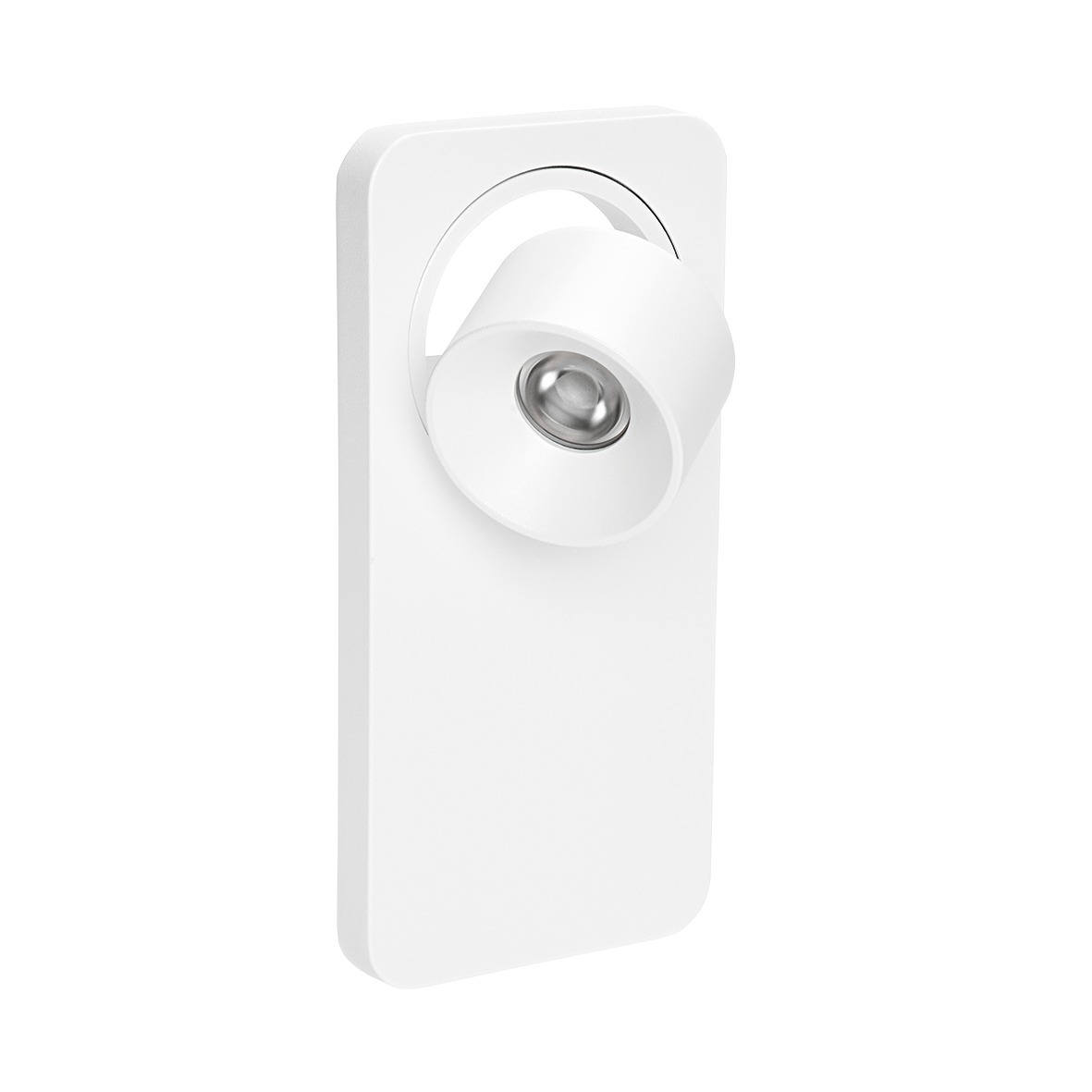

Technical description
Single emission wall lights, projectors or projectors for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 627 lm, with a 156.8 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a white finish, processed by means of coating; the diffuser is made of PC; the mounting frame is made of aluminium, with a white finish, processed by means of coating. The ingress protection degree is IP20; the total weight is of 0.645 kg.
The total absorbed power is 5.1 W.
The device features protection class I and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Downloads
Documentation
Photometric data
File BIM .rfa
2D/3D Drawings
