Blum Projector

C00005BNWSP

New

Outdoor / Bollards and poles

Bollard & Pole | 198-264 V

3 arrayLED 12.2 W DC - 14.2 W AC

IP
IP65
IK
08
Optic
Spot
CCT
3000 K
CRI
80
Delivered lumens
--
Finishes
Brown
Installation position
Floor
Control
Source Type
arrayLED

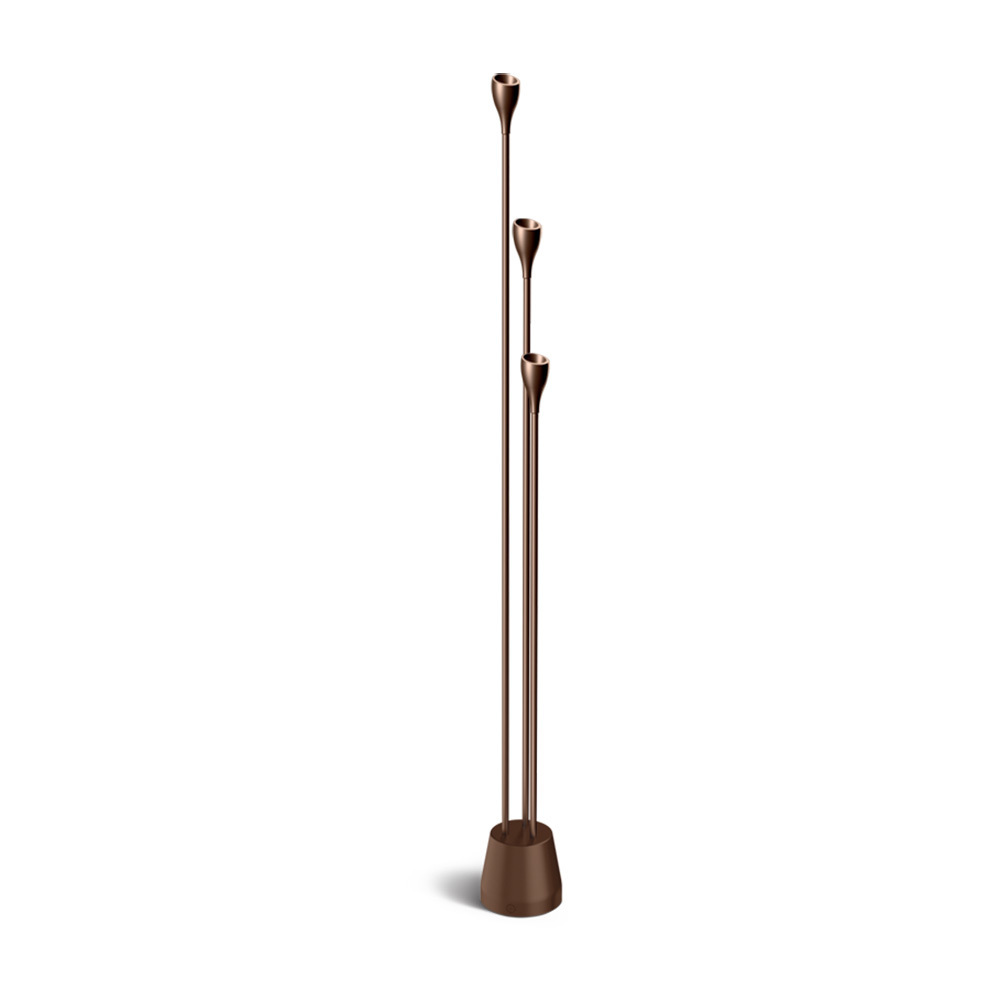

Single emission bollard & pole for outdoor application. The warm white LED light source with a spot light distribution is composed of 3 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1848 lm, with a 151.5 lm/W nominal luminous efficacy.

The device body and features a brown finish; the diffuser is made of uv resistant polymethylmethacrylate with a sandblasting treatment. The ingress protection degree is IP65; the total weight is of 0.043 kg.

The total absorbed power is 14.2 W. The power supply cable is included and features a 1 m length.

The device features protection class II and can be floor-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

2D/3D Drawings

Accessories
