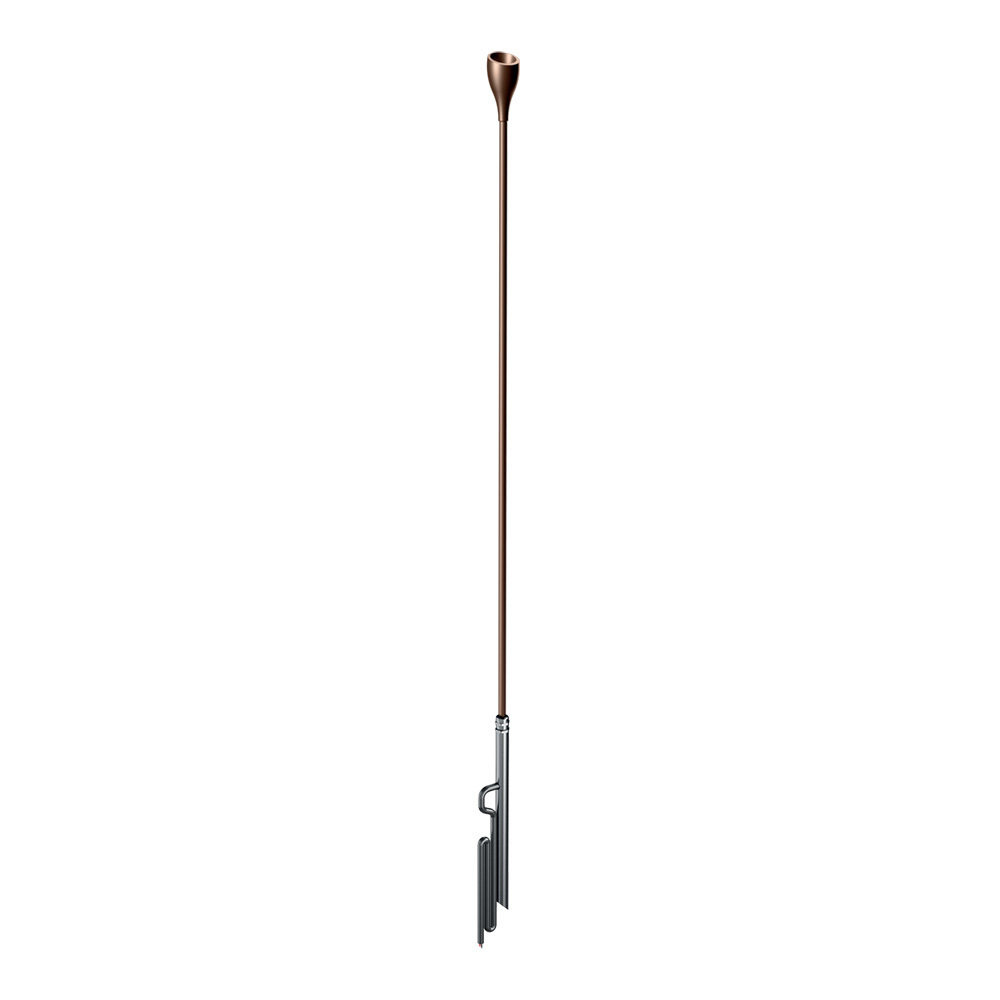

Single emission bollard & pole for outdoor application. The natural white LED light source with a wide flood light distribution is composed of 1 arrayled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 711 lm, with a 158.0 lm/W nominal luminous efficacy.The device body and features a brown finish; the diffuser is made of uv resistant polymethylmethacrylate with a sandblasting treatment. The ingress protection degree is IP65; the total weight is of 1.5 kg. The power supply driver is not provided and is to be ordered separately.The total absorbed power is 4.5 W. The power supply cable is included and features a 1 m length.The device features protection class III and can be floor-mounted.Compliant with the EN 60598-1 standard and its specific provisions.

Data sheet

3d_Step

Instruction sheet

Base IESNA C00006BNNWF

Base Eulumdat C00006BNNWF

Product dimensions

Product image

Specification text

Blum Projector

ProductLeaf

Maxi_Aqualed - On/Off Driver - 20 W DC arrayLED - 500mA 39V / 9-18 W DC powerLEDs |   On/Off Driver 198~264V AC

Aqualed_Slim - On/Off Driver - 10W DC 500mA 9-20V |   On/Off Driver 198~264V AC / 180~275V DC

Blum

C00006BNNWF

Ciao, hai ricevuto una richiesta di contatto dal sito Linealight.
Riepiloghiamo qui le informazioni che l'utente ci ha lasciato:

Name: [[NAME]]
Surname: [[SURNAME]]
Email: [[EMAIL]]
Phone: [[PHONE]]
Country: [[COUNTRY]]
City: [[CITY]]
Profession: [[PROFESSION]]
Company: [[COMPANY]]
Subject: [[SUBJECT]]
Message: [[MESSAGE]]


Sei pregato di ricontattarlo al più presto.

Ciao, hai una nuova iscrizione alla newsletter.
Riepiloghiamo qui i dati che l'utente ci ha lasciato.

Name: [[NAME]]
Surname: [[SURNAME]]
Email: [[EMAIL]]
Country: [[COUNTRY]]
Professionist: [[PROFESSIONIST]]

Grazie

Ciao, hai ricevuto una nuova richiesta di garanzia dal sito.
Riepiloghiamo qui di seguito i dati lasciati dall'utente:

Contact Name: [[CONTACT_NAME]]
Email: [[EMAIL]]
Phone: [[PHONE]]
Company: [[COMPANY]]
Order Number: [[ORDER_NUMBER]]
Project Name: [[PROJECT_NAME]]
Address: [[ADDRESS]]
Installer Company: [[INSTALLER_COMPANY]]
Installer Company Contact: [[INSTALLER_COMPANY_CONTACT]]
Applications: [[APPLICATIONS]]

Grazie

Dear Customer,
we confirm that the completion of the 5-Year Warranty form, on the Linealight website, was successful.
We summarize below the data you provided:

Contact Name: [[CONTACT_NAME]]
Email: [[EMAIL]]
Phone: [[PHONE]]
Company: [[COMPANY]]
Order Number: [[ORDER_NUMBER]]
Project Name: [[PROJECT_NAME]]
Address: [[ADDRESS]]
Installer Company: [[INSTALLER_COMPANY]]
Installer Company Contact: [[INSTALLER_COMPANY_CONTACT]]
Applications: [[APPLICATIONS]]

Thank you for choosing Linealight Group.

Ciao, hai ricevuto una nuova candidatura dal sito.
Riepiloghiamo i dati che l'utente ci ha lasciato.

Name: [[NAME]]
Surname: [[SURNAME]]
Email: [[EMAIL]]
Position: [[POSITION]]
Branch: [[BRANCH]]
CV: [[CV]]
Message: [[MESSAGE]]

Grazie

Your application to Linealight Group has been successfully submitted.
You have applied for:

Position: [[POSITION]]
Branch: [[BRANCH]]

Dear Candidate,
Thank you for your recently submitted application.
We will make sure to contact you in case of future collaboration opportunities.

Best regards,
The HR team at Linea Light Group

Dear Customer, thank you for using our <a title="Modus Configurator" href="[CONFIGURATOR_URL]" target="_blank">Modus Configurator</a>.
Attached you will find the configuration data sheet Ref. [GUID] with its legend. Below are all the technical data sheets of the components used for the configuration:
[PRODUCT_SUMMARY]
You can view and change the configuration at any time at this address:
<a title="View or modify your Modus configuration" href="[CONFIGURATION_URL]" target="_blank">[CONFIGURATION_URL]</a>
 Discover LineaLight's other Configurators by visiting the new<a title="Configurators" href="[CONFIGURATORS_URL]">Configurators </a>section of the site.
Goodbye and thank you
Linea Light S.r.l. Italy Via Della Fornace 59 31023 Castelminio di Resana TV Italy Phone: +39 0423 7868 info@linealight.com
 [THANKS_MESSAGE]

This message was sent through an automated system. Please do not respond to this email directly.

New products and latest trends from lighting.

Subscribe to our newsletter

Fill out the form with the details of your request to receive support from the Customer Care team as soon as possible.

Contact Us

Do you want to discover the news of the Linea Light Group world?

Configure the D-Wave with your preferred sources and download the photometric files related to them.
Within the new D-Wave, you will have the possibility to insert different types of LED strips.

In this section, you will be able to configure your Downlight Evo and download the photometric file with accessory included! Attention, you will find the photometric files of downlights without accessory in the code section

Application

The Client declares to have read and approve the content of the “Warranty declaration” and of this web page.

IP	IP65
IK	08
Optic	Wide Flood
Degrees	56°
CCT	4000 K
CRI	80
Delivered lumens	533 lm
Finishes	Brown
Installation position	Floor
Control
Efficiency	118.4 lm/W
Source Type	arrayLED

Blum Projector

C00006BNNWF

Technical description

Electronics

Maxi_Aqualed - On/Off Driver - 20 W DC arrayLED - 500mA 39V / 9-18 W DC powerLEDs | On/Off Driver 198~264V AC

Aqualed_Slim - On/Off Driver - 10W DC 500mA 9-20V | On/Off Driver 198~264V AC / 180~275V DC

Downloads

Family	On/Off Driver
IP	IP67
Operation	CC

Family	On/Off Driver
IP	IP67
Operation	CC
