Box_SB

8260

Indoor / Ceiling Lights

Ceiling Downlights | 220-240 V

4 topLED 24 W DC - 26 W AC

IP
IP40
Optic
Diffused
Degrees
128.8°
CCT
3000 K
CRI
80
Delivered lumens
1995 lm
Finishes
White
Installation position
Wall lights, Ceiling
Control
PHASE-CUT
Efficiency
76.7 lm/W
Source Type
topLED

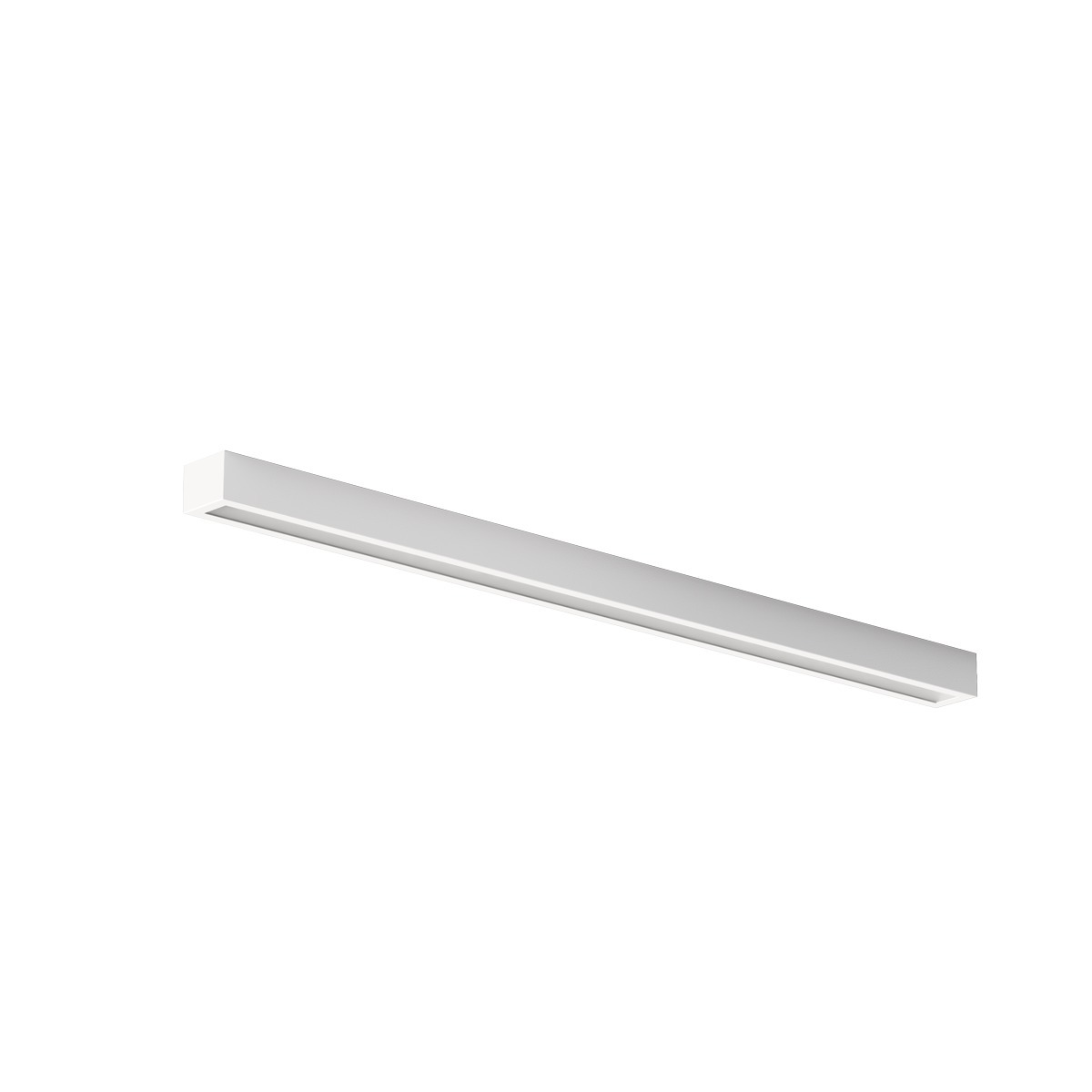

Single emission ceiling downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 72 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 3490 lm, with a 145.4 lm/W nominal luminous efficacy.

The device body is made of iron and features a white finish, processed by means of coating; the diffuser is made of pmma with a satin finishing treatment; the mounting frame is made of iron, with a zinc finish, processed by means of washing. The ingress protection degree is IP40; the total weight is of 4.350 kg.

The total absorbed power is 26 W.

The device features protection class I and can be wall lights or ceiling-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Spares parts

.pdf

Instruction sheet

.pdf

General

.pdf

Product image

.jpeg

Specification text

.txt

Photometric data

2D/3D Drawings

Accessories
