Box_SR
8236N
Indoor / Ceiling Lights
Ceiling Downlights | 220-240 V
1 topLED 6 W DC - 7 W AC
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 111.6° |
| CCT | 4000 K |
| CRI | 80 |
| Delivered lumens | 635 lm |
| Finishes | White |
| Installation position | Ceiling |
| Control | |
| Efficiency | 90.7 lm/W |
| Source Type | topLED |
Technical description

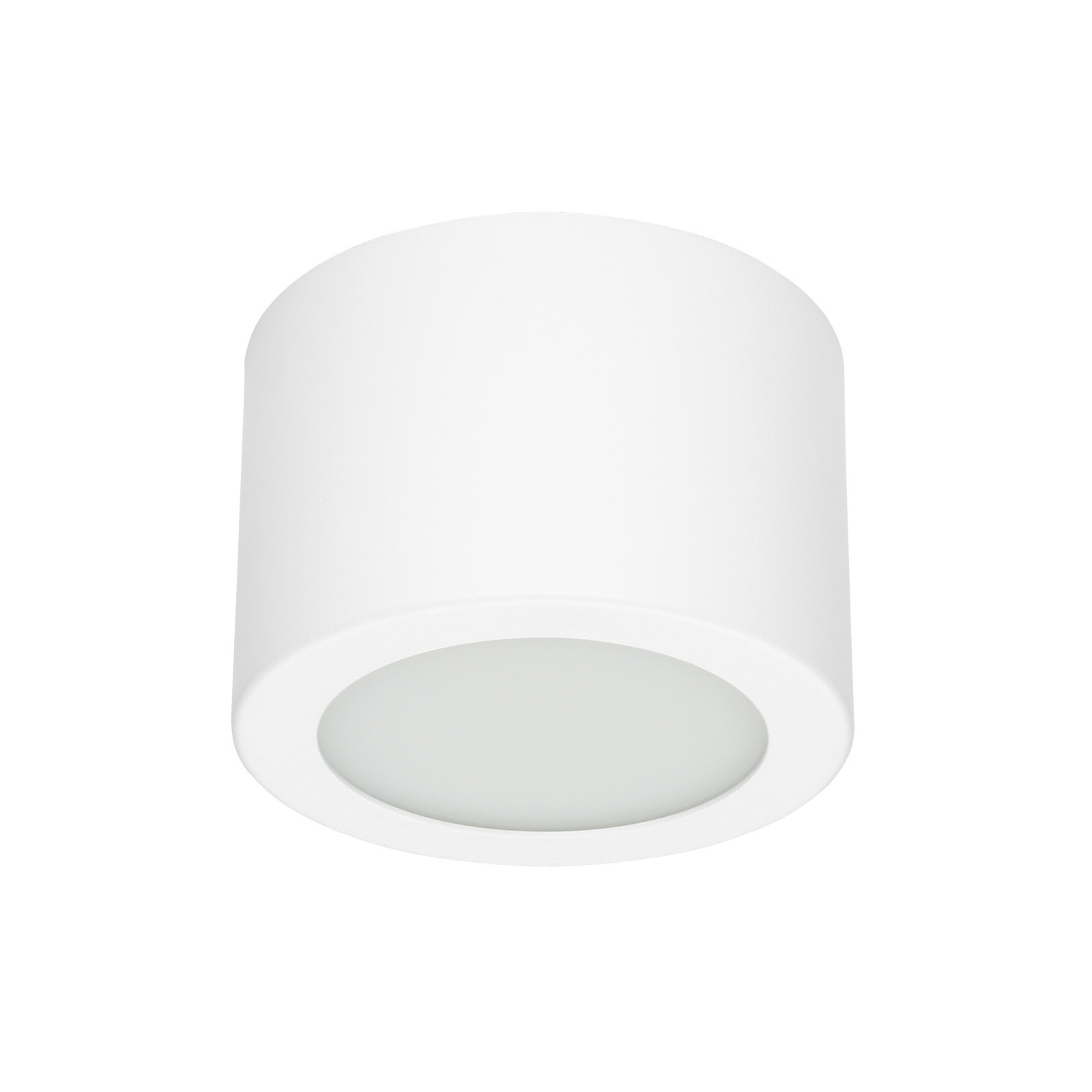

Single emission ceiling downlights for indoor application. The natural white LED light source with a diffused light distribution is composed of 24 topled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 830 lm, with a 138.3 lm/W nominal luminous efficacy.
The device body is made of iron and features a white finish, processed by means of coating; the diffuser is made of pmma with a satin finishing treatment. The ingress protection degree is IP40; the total weight is of 0.480 kg.
The total absorbed power is 7 W.
The device features protection class I and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
