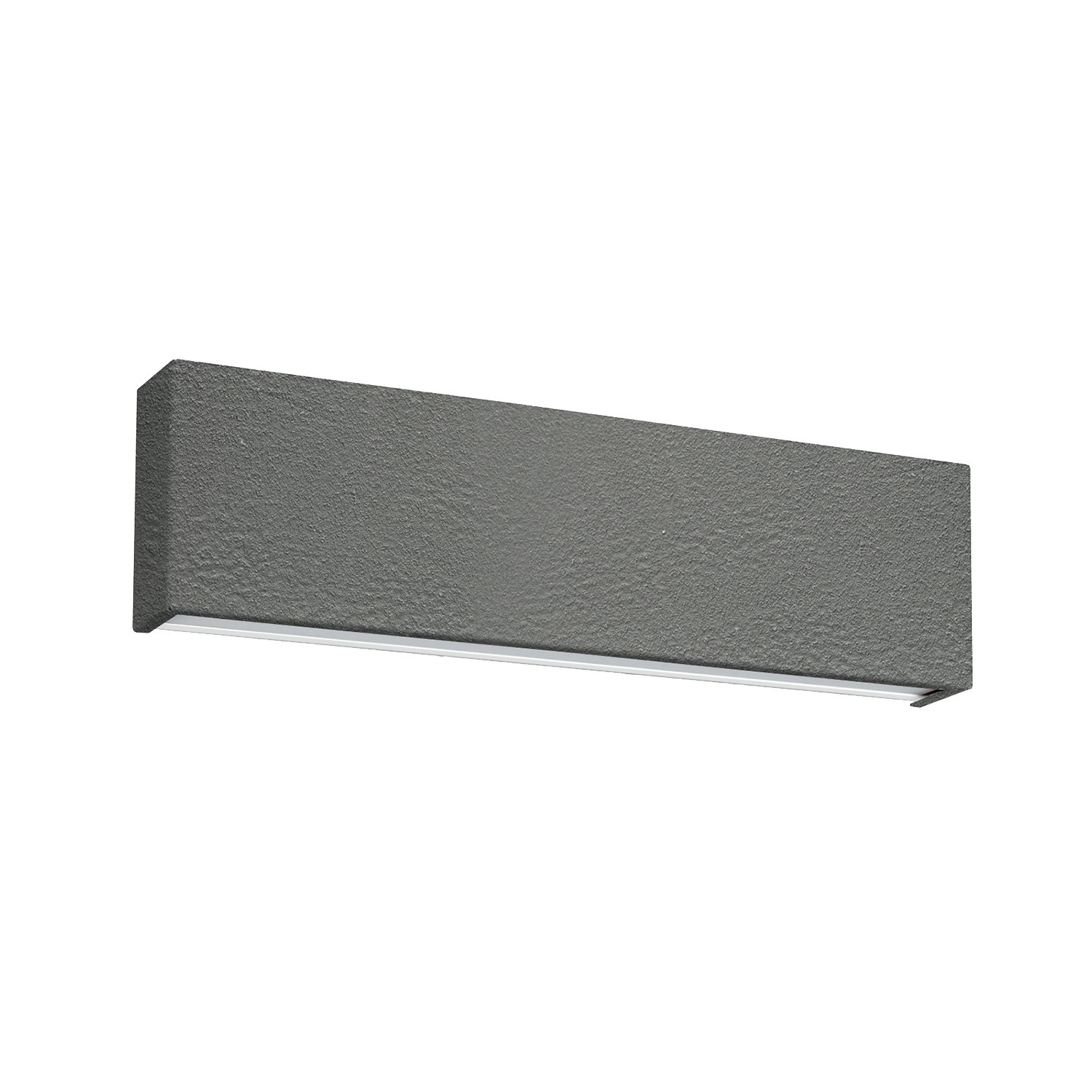

Box_W1 Mono Emission
8773M
Indoor / Wall Mounted Lights
Wall Lights | 220-240 V
1 topLED 13 W DC - 14 W AC
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 126.4° |
| CCT | 2700 K |
| CRI | 80 |
| Delivered lumens | 1004 lm |
| Finishes | Concrete |
| Installation position | Wall lights |
| Control | PHASE-CUT |
| Efficiency | 71.7 lm/W |
| Source Type | topLED |
Technical description
Single emission wall lights for indoor application. The super warm white LED light source with a diffused light distribution is composed of 1 topled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 1484 lm, with a 114.2 lm/W nominal luminous efficacy.
The device body is made of iron and features a concrete dark grey finish, processed by means of coating; the diffuser is made of pmma. The ingress protection degree is IP40; the total weight is of 1 kg.
The total absorbed power is 14 W.
The device features protection class I and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
