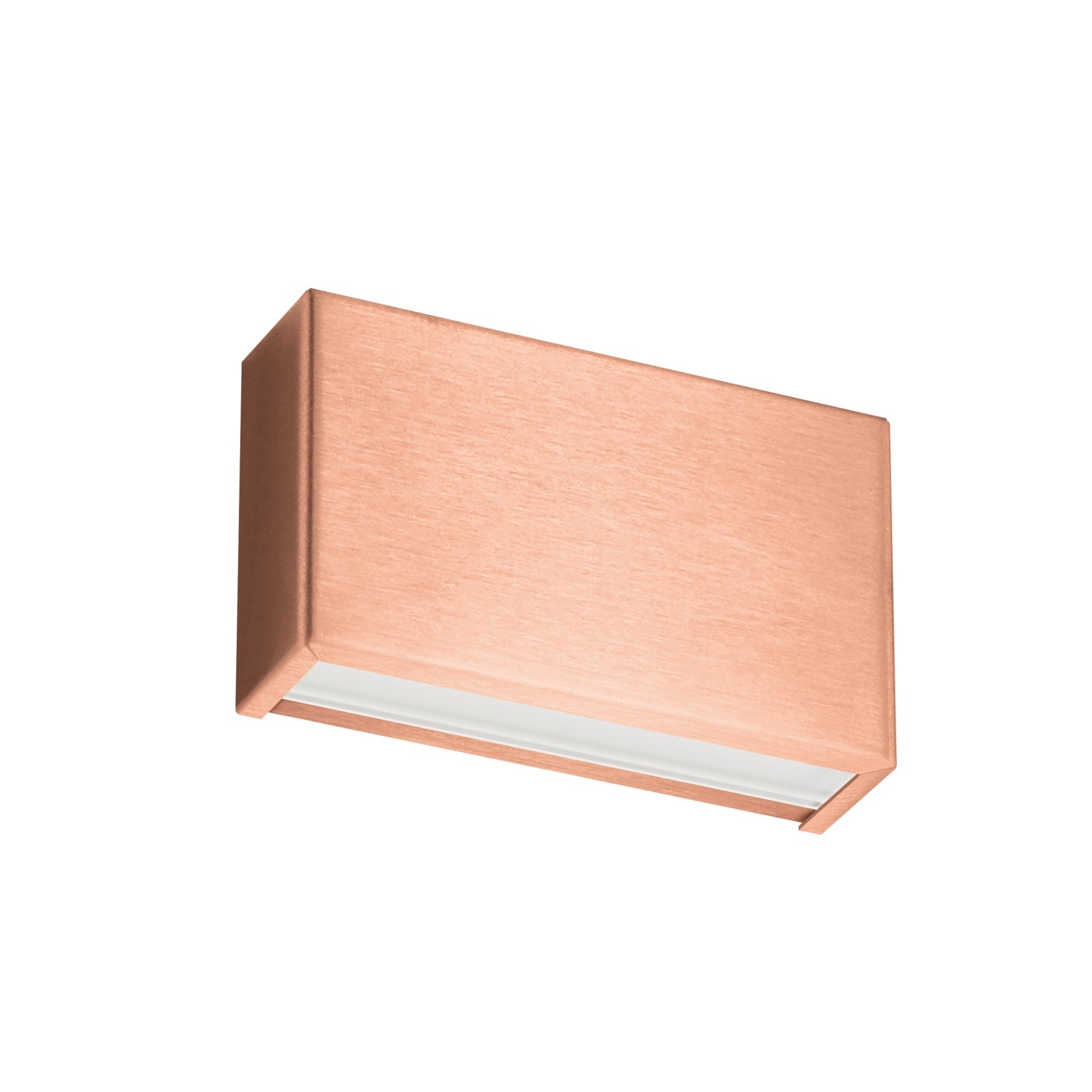

Box_W1 Mono Emission
8912
Indoor / Wall Mounted Lights
Wall Lights | 220-240 V
1 topLED 5 W DC - 6 W AC
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 126.4° |
| CCT | 3000 K |
| CRI | 80 |
| Delivered lumens | 499 lm |
| Finishes | Copper |
| Installation position | Wall lights |
| Control | PHASE-CUT |
| Efficiency | 83.2 lm/W |
| Source Type | topLED |
Technical description
Single emission wall lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 12 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 540 lm, with a 108.0 lm/W nominal luminous efficacy.
The device body is made of copper; the diffuser is made of pmma; the mounting frame is made of aluminium, with a white finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.55 kg.
The total absorbed power is 6 W.
The device features protection class I and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
