Box_W2 Bi Emission
8257N
Indoor / Wall Mounted Lights
Wall Lights | 220-240 V
4 topLED 24 W DC - 28 W AC
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 120° |
| CCT | 4000 K |
| CRI | 80 |
| Delivered lumens | 2501 lm |
| Finishes | White |
| Installation position | Wall lights |
| Control | PHASE-CUT |
| Efficiency | 89.3 lm/W |
| Source Type | topLED |
Technical description

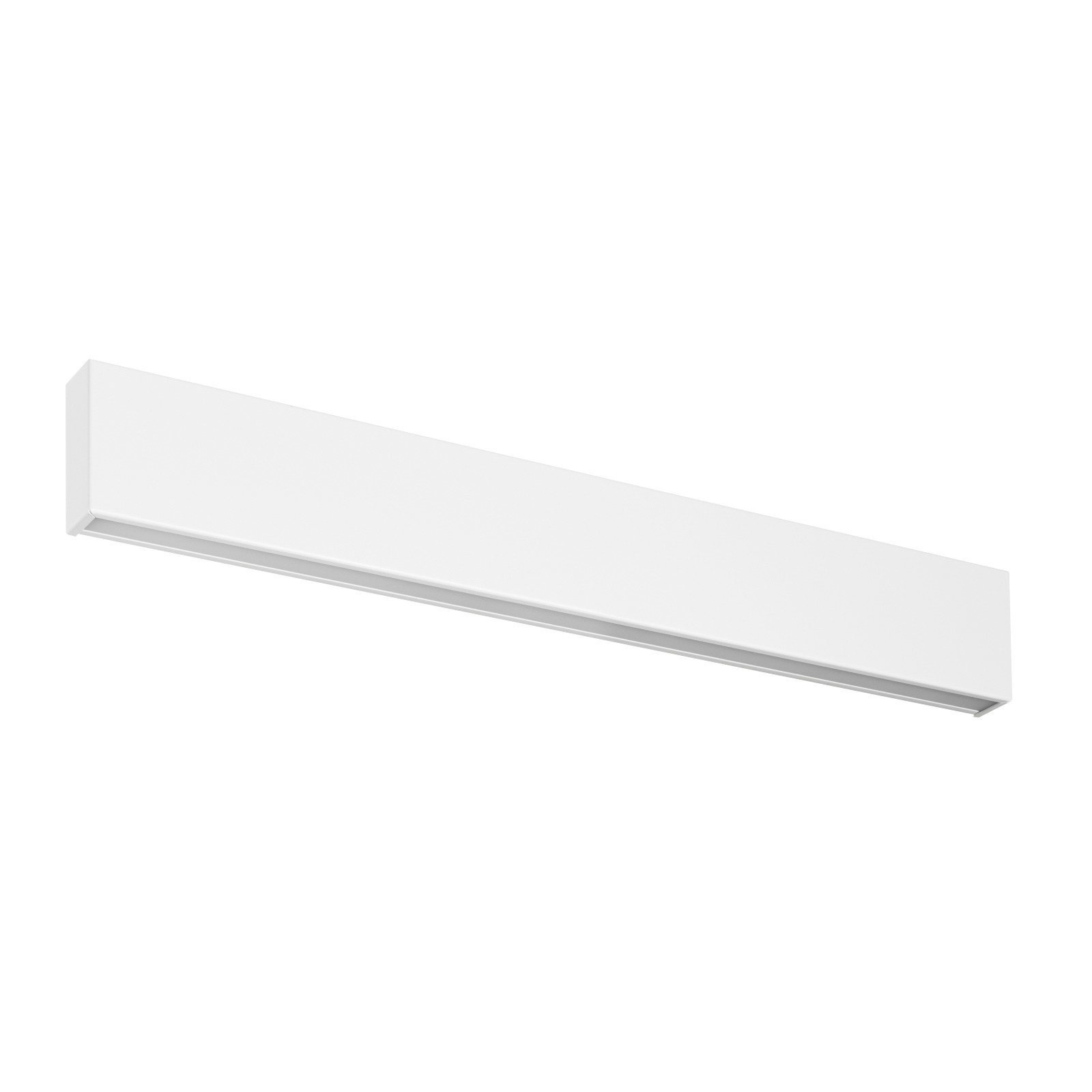

Double emission wall lights for indoor application. The natural white LED light source with a diffused light distribution is composed of 72 topled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 3839 lm, with a 160.0 lm/W nominal luminous efficacy.
The device body is made of iron and features a white finish, processed by means of coating; the diffuser is made of pmma. The ingress protection degree is IP40; the total weight is of 2.1 kg.
The total absorbed power is 28 W.
The device features protection class I and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
