Box_W2 Bi Emission
8258
Indoor / Wall Mounted Lights
Wall Lights | 220-240 V
6 topLED 37 W DC - 41 W AC











IP | IP40 |
---|---|
Optic | Diffused |
Degrees | 120° |
CCT | 3000 K |
CRI | 80 |
Delivered lumens | 3255 lm |
Finishes | White |
Installation position | Wall lights |
Control | PHASE-CUT |
Efficiency | 79.4 lm/W |
Source Type | topLED |
Technical description

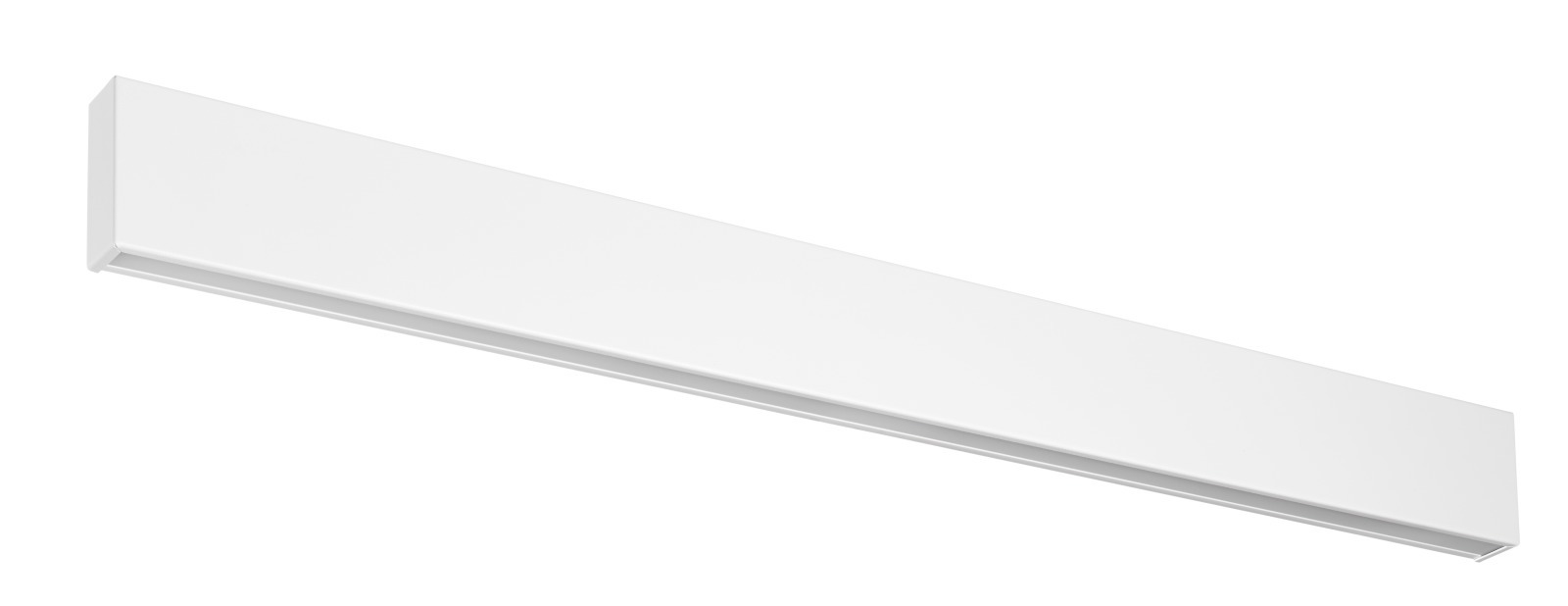

Double emission wall lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 108 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 5235 lm, with a 141.5 lm/W nominal luminous efficacy.
The device body is made of iron and features a white finish, processed by means of coating; the diffuser is made of pmma. The ingress protection degree is IP40;
The total absorbed power is 41 W.
The device features protection class I and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
