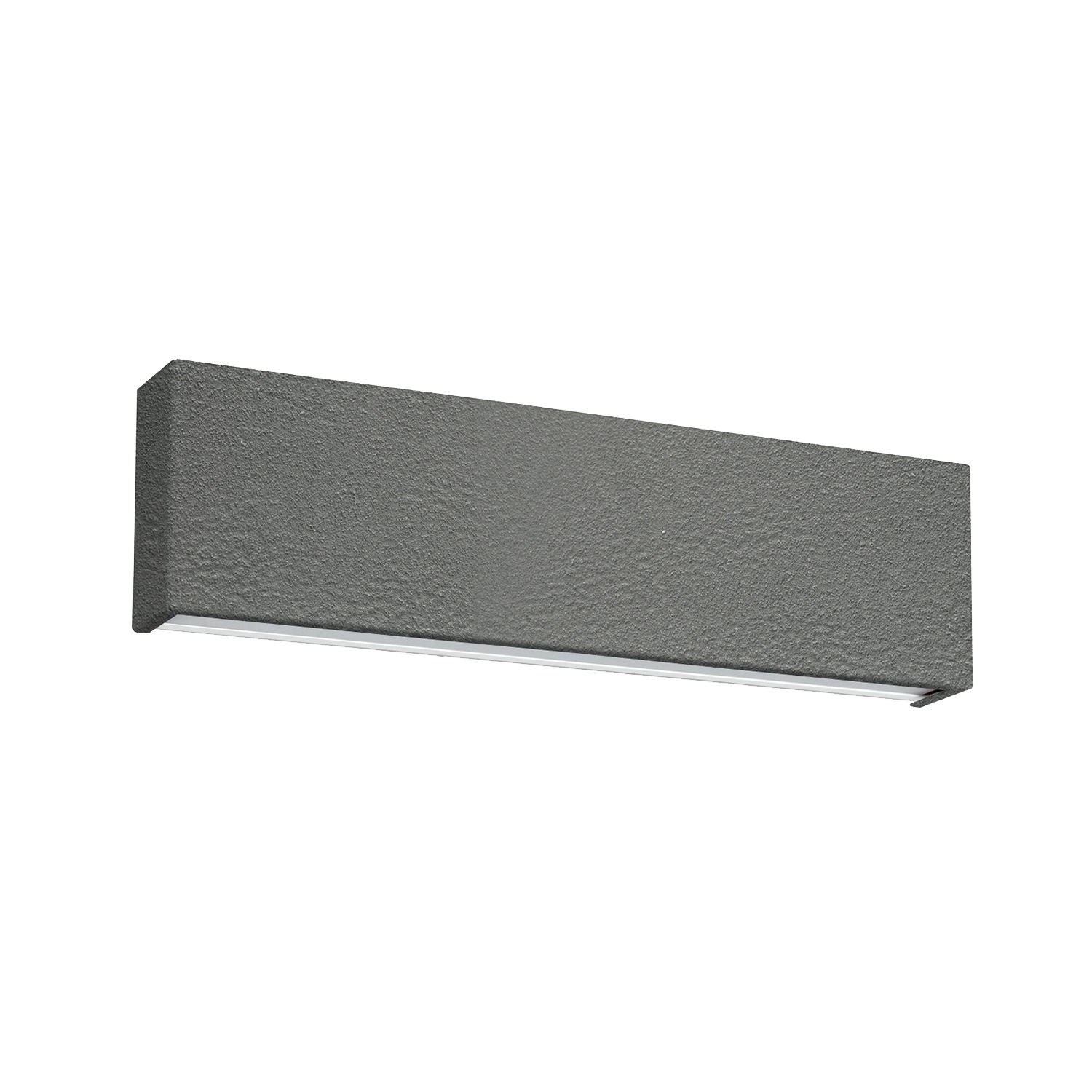

Box_W2 Bi Emission
8262
Indoor / Wall Mounted Lights
Wall Lights | 220-240 V
2 topLED 18 W DC - 19 W AC
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 120° |
| CCT | 3000 K |
| CRI | 80 |
| Delivered lumens | 1510 lm |
| Finishes | Concrete |
| Installation position | Wall lights |
| Control | PHASE-CUT |
| Efficiency | 79.5 lm/W |
| Source Type | topLED |
Technical description
Double emission wall lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 72 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 2370 lm, with a 131.7 lm/W nominal luminous efficacy.
The device body is made of iron and features a concrete dark grey finish, processed by means of coating; the diffuser is made of pmma. The ingress protection degree is IP40; the total weight is of 1 kg.
The total absorbed power is 19 W.
The device features protection class I and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
