Box_W2 Bi Emission
9537
Indoor / Wall Mounted Lights
Wall Lights | 220-240 V
4 topLED 24 W DC - 28 W AC
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 120° |
| CCT | 3000 K |
| CRI | 80 |
| Delivered lumens | 2225 lm |
| Finishes | Brass |
| Installation position | Wall lights |
| Control | PHASE-CUT |
| Efficiency | 79.5 lm/W |
| Source Type | topLED |
Technical description

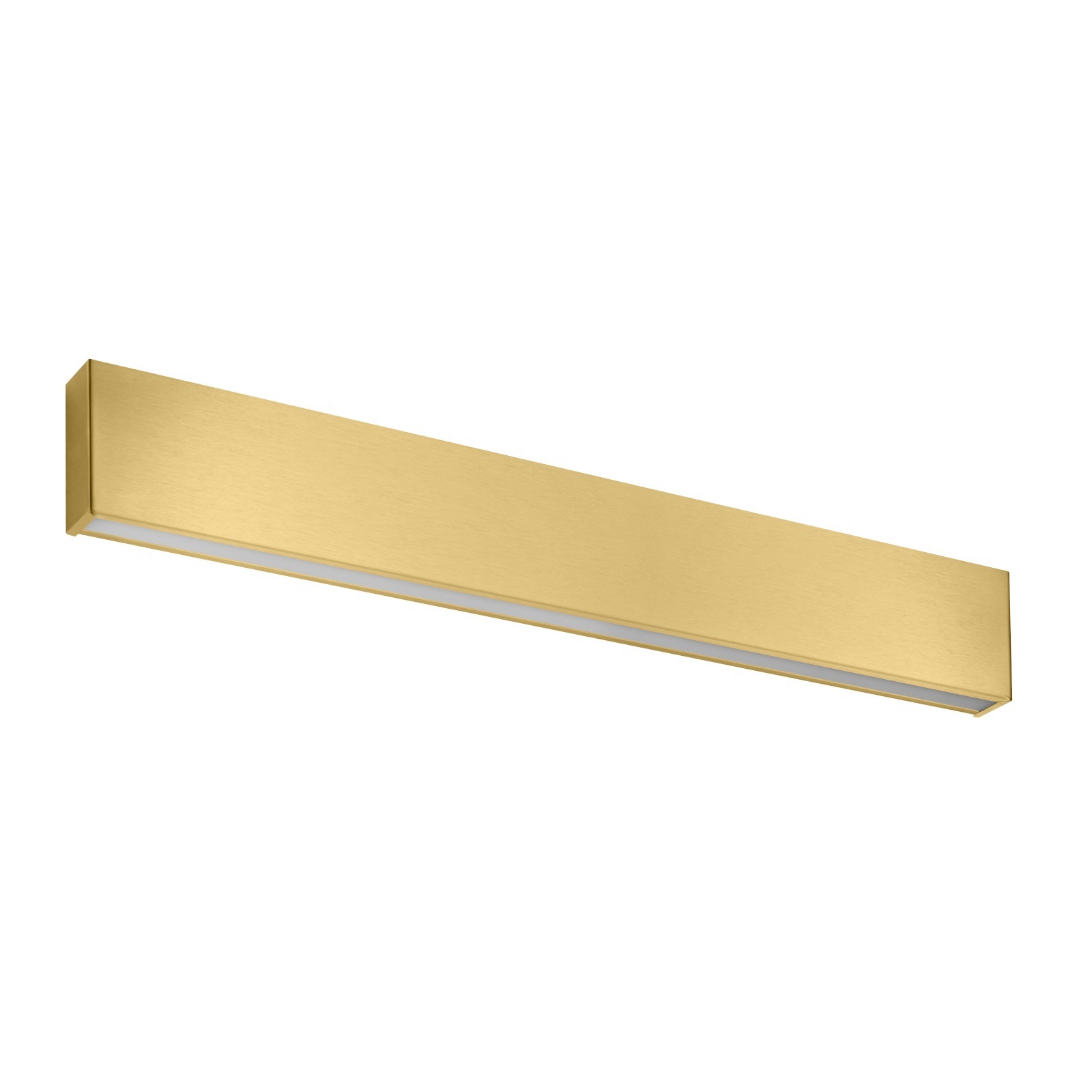

Double emission wall lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 3490 lm, with a 145.4 lm/W nominal luminous efficacy.
The device body is made of brass; the diffuser is made of pmma with a satin finishing treatment; the mounting frame is made of aluminium, with a white finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 2.1 kg.
The total absorbed power is 28 W.
The device features protection class I and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Downloads
Documentation
Photometric data
2D/3D Drawings
Accessories
