Buzzer Pro

C00014DBNRD

New

Outdoor / Bollards and poles

Bollard & Pole | 180-264 V AC /230-280 V DC

1 arrayLED 9.3 W DC - 11 W AC

IP
IP65
IK
09
Optic
Asymmetric 360°
Degrees
161.6°
CCT
4000 K
CRI
80
Delivered lumens
351 lm
Finishes
Dark brown
Installation position
Floor
Control
DALI-2
Efficiency
31.9 lm/W
Source Type
arrayLED

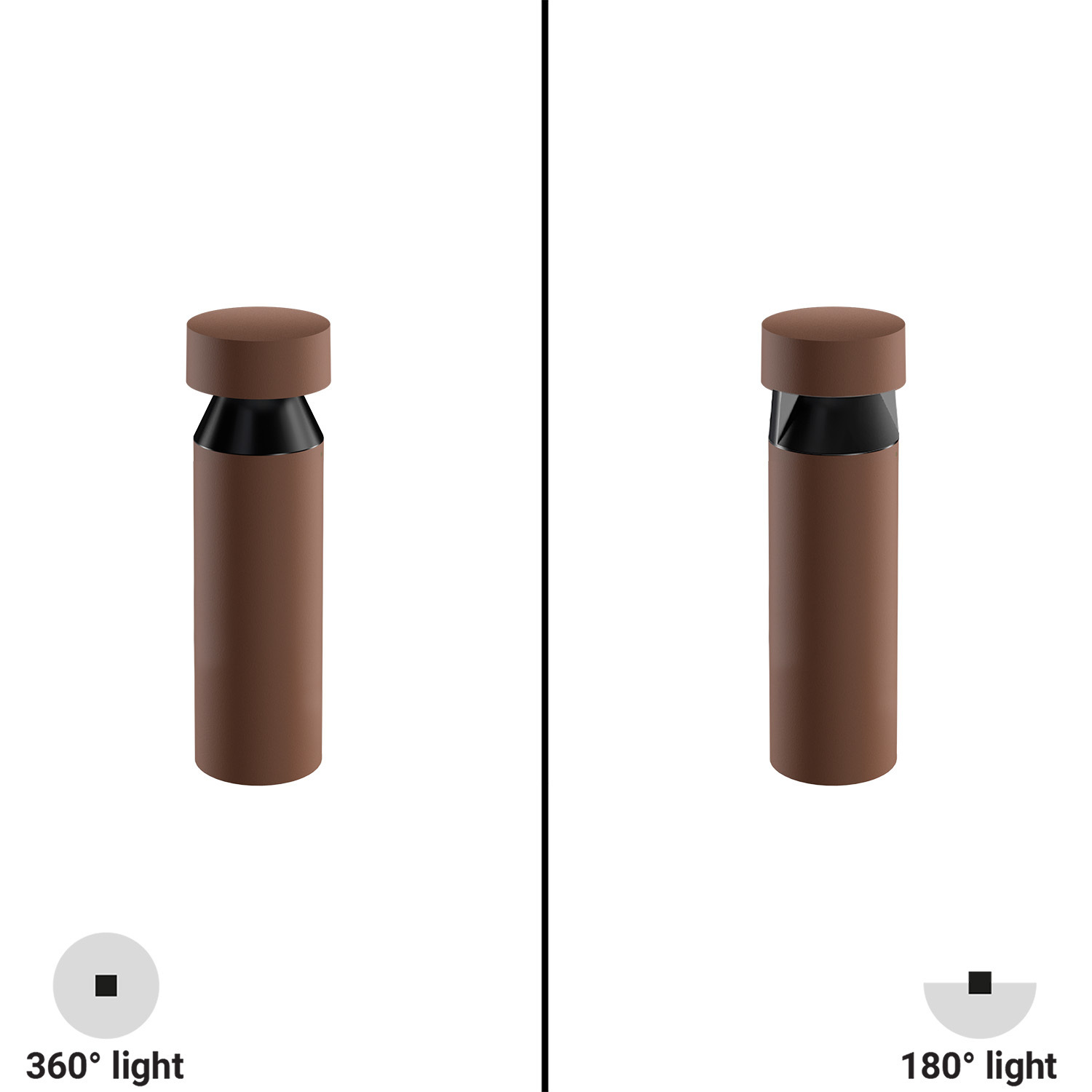

Radial diffusion bollard & pole for outdoor application. The natural white LED light source with a asymmetric 360° light distribution is composed of 1 arrayled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 1354 lm, with a 145.6 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP65; the total weight is of 1.4 kg.

The total absorbed power is 11 W.

The device features protection class II and can be floor-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.
