Cell_Ww

82940M07

Indoor / Recessed Downlights

Downlights

3 x powerLEDs 9 W DC 350 mA

IP
IP20
Optic
Asymmetric Wallwasher
Degree
99.6°
CCT
2700 K
CRI
92
Delivered lumens
482 lm
Finishes
Black
Installation position
Ceiling
Control
Efficiency
50.7 lm/W
Source Type
powerLEDs

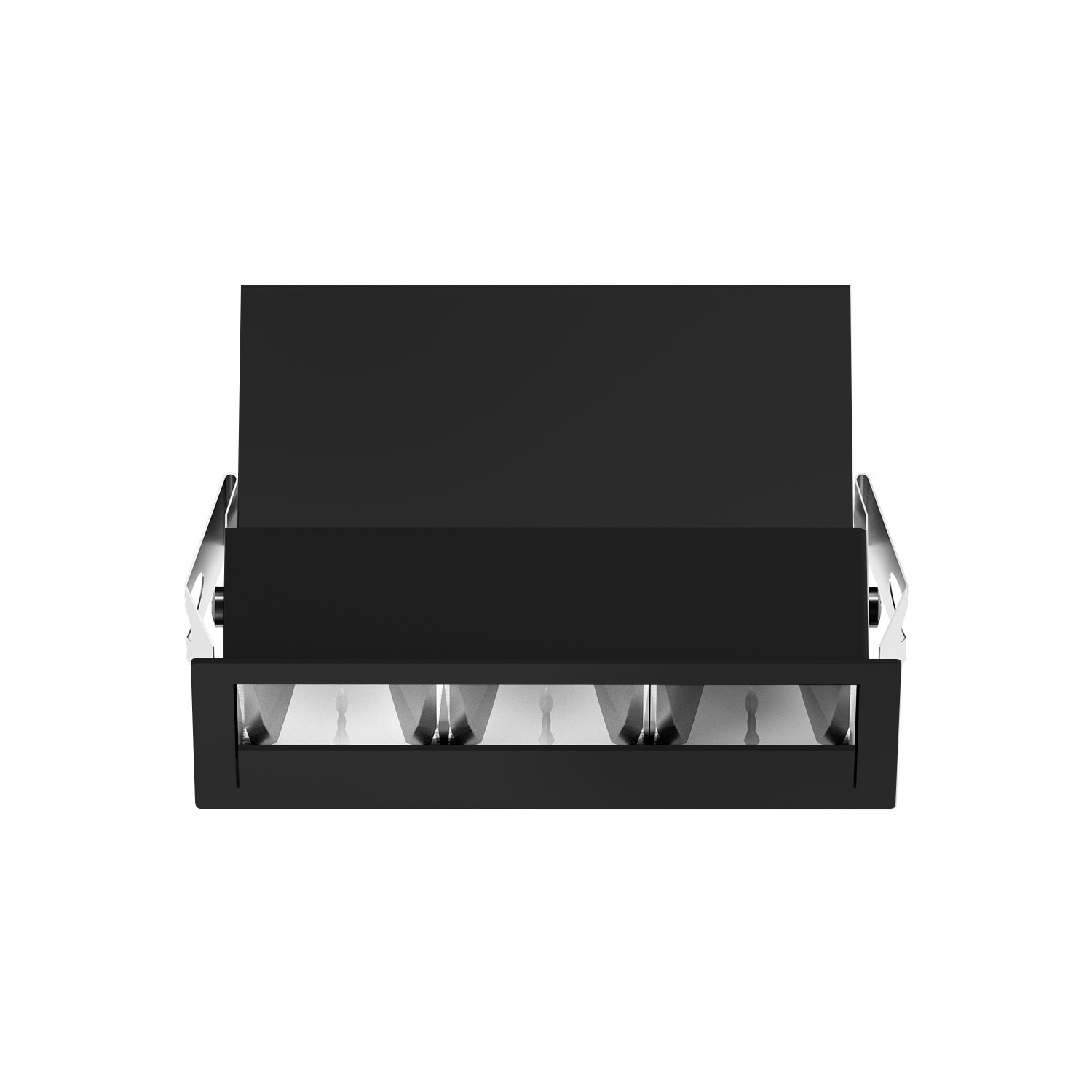

Single emission recessed downlights for indoor application. The super warm white LED light source with a asymmetric wallwasher light distribution is composed of 3 powerled LEDs with CCT of 2700 K and a CRI 92; the source luminous flux is 1099 lm, with a 122.1 lm/W nominal luminous efficacy.

The device body is made of iron and features a white + black finish, processed by means of powder coating; the diffuser is made of ABS. The ingress protection degree is IP20; the total weight is of 0.28 kg. The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 9 W. The power supply cable is included and features a 0.11 m length.

The device features protection class III and can be ceiling-mounted, with a 114 x 40 mm hole (in plasterboard).

Compliant with the EN 60598-1 standard and its specific provisions.

Electronics

Code 99126

Simon - On/Off Driver - 350mA 39V 13.5W / 350mA 39V 6-12W | On/Off Driver 198~264V AC

FamilyOn/Off Driver
IPIP40
OperationCC
Simon - On/Off Driver - 350mA 39V 13.5W / 350mA 39V 6-12W |   On/Off Driver 198~264V AC
.zip

Code C-E100001

Argo_PRO - DALI2 Push and Simply 400-450-500-550-600mA 15-36V 22W | Push and Simply Dim Multi Power 198~264V AC / 180~275V DC

FamilyMulti Power
IPIP40
OperationCC
Argo_PRO - DALI2 Push and Simply 400-450-500-550-600mA 15-36V 22W |  Push and Simply Dim  Multi Power 198~264V AC / 180~275V DC
.zip

You've seen 2 products out of 2

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

Photometric data

2D/3D Drawings
