Gypsum Cell

64548W45

Indoor / Recessed Downlights

Downlights

6 x powerLEDs 12 W DC 630 mA

IP
IP20
Optic
Medium Wide Flood
Degree
48.6°
CCT
3000 K
CRI
90
Delivered lumens
705 lm
Finishes
Black
Installation position
Ceiling
Control
Efficiency
58.8 lm/W
Source Type
powerLEDs

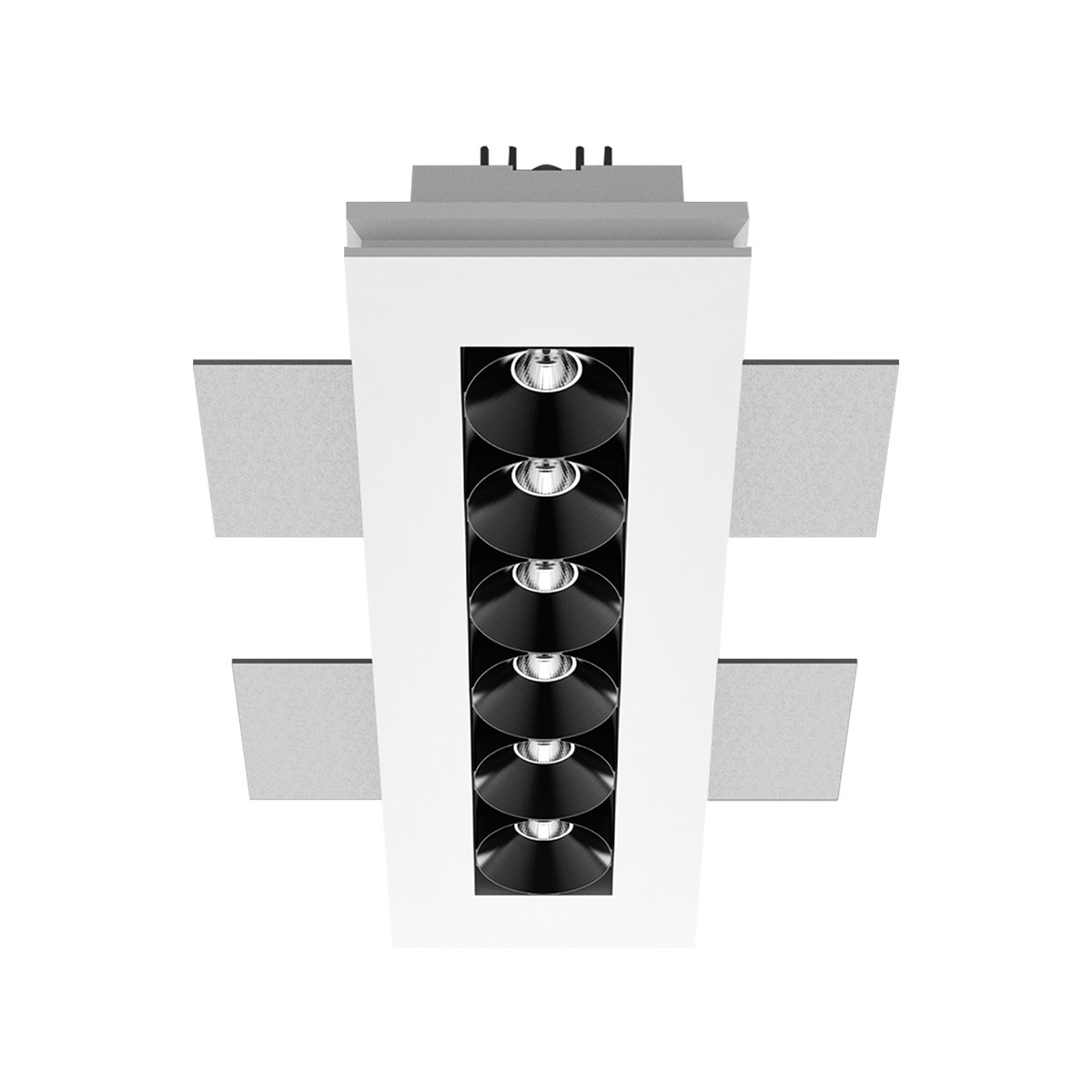

Single emission recessed downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 6 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1272 lm, with a 106.0 lm/W nominal luminous efficacy.

The device body is made of plaster and features a white finish; the diffuser is made of ABS. The ingress protection degree is IP20; the total weight is of 0.690 kg. The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 12 W. The power supply cable is included and features a 0.170 m length.

The device features protection class III and can be ceiling-mounted, with a 270 x 90 mm hole (in plasterboard).

Compliant with the EN 60598-1 standard and its specific provisions.

Electronics

Code 99105

Leon - On/Off Driver | On/Off Driver 198~264V AC

FamilyOn/Off Driver
IPIP40
OperationCC
Leon - On/Off Driver |   On/Off Driver 198~264V AC
.zip

Code 99129

Simon - On/Off Driver - 630mA 20V 6-12W | On/Off Driver 198~264V AC

FamilyOn/Off Driver
IPIP40
OperationCC
Simon - On/Off Driver - 630mA 20V 6-12W |   On/Off Driver 198~264V AC
.zip

Code C-E100001

Argo_PRO - DALI2 Push and Simply 400-450-500-550-600mA 15-36V 22W | Push and Simply Dim Multi Power 198~264V AC / 180~275V DC

FamilyMulti Power
IPIP40
OperationCC
Argo_PRO - DALI2 Push and Simply 400-450-500-550-600mA 15-36V 22W |  Push and Simply Dim  Multi Power 198~264V AC / 180~275V DC
.zip
