Circular
8406
Indoor / Wall Mounted Lights
Wall Lights | 220-240 V
40 topLED 7 W DC - 8 W AC
| IP | IP44 |
|---|---|
| Optic | Diffused |
| Degrees | 114.8° |
| CCT | 3000 K |
| CRI | 80 |
| Delivered lumens | 710 lm |
| Finishes | Chrome |
| Installation position | Wall lights, Ceiling |
| Control | |
| Efficiency | 88.8 lm/W |
| Source Type | topLED |

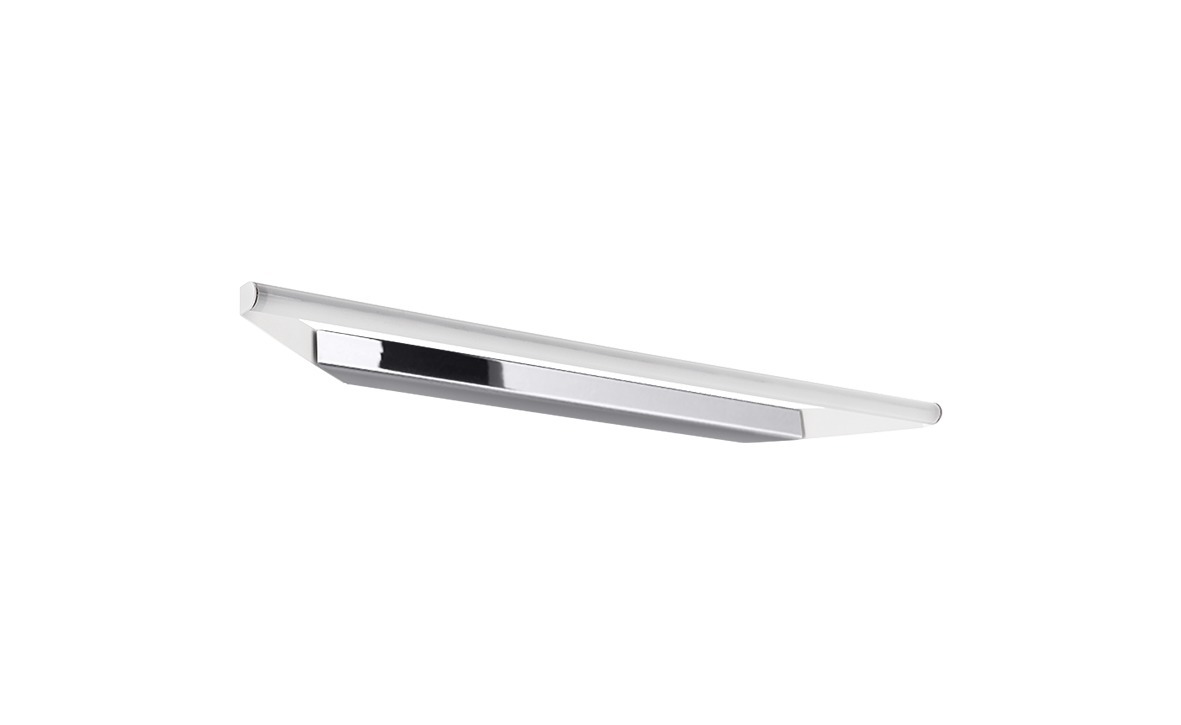

Technical description
Double emission wall lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 40 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1022 lm, with a 146.0 lm/W nominal luminous efficacy.
The device body is made of iron and features a chrome finish, processed by means of electroplating; the diffuser is made of PC; the mounting frame is made of iron, with a chrome finish, processed by means of electroplating. The ingress protection degree is IP44; the total weight is of 0.545 kg.
The total absorbed power is 8 W.
The device features protection class I and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
