Circular
8409
Indoor / Wall Mounted Lights
Wall Lights | 220-240 V
30 topLED 10 W DC - 11 W AC
| IP | IP44 |
|---|---|
| Optic | Diffused |
| Degrees | 114.8° |
| CCT | 3000 K |
| CRI | 80 |
| Delivered lumens | 971 lm |
| Finishes | White |
| Installation position | Wall lights, Ceiling |
| Control | |
| Efficiency | 88.3 lm/W |
| Source Type | topLED |
Technical description

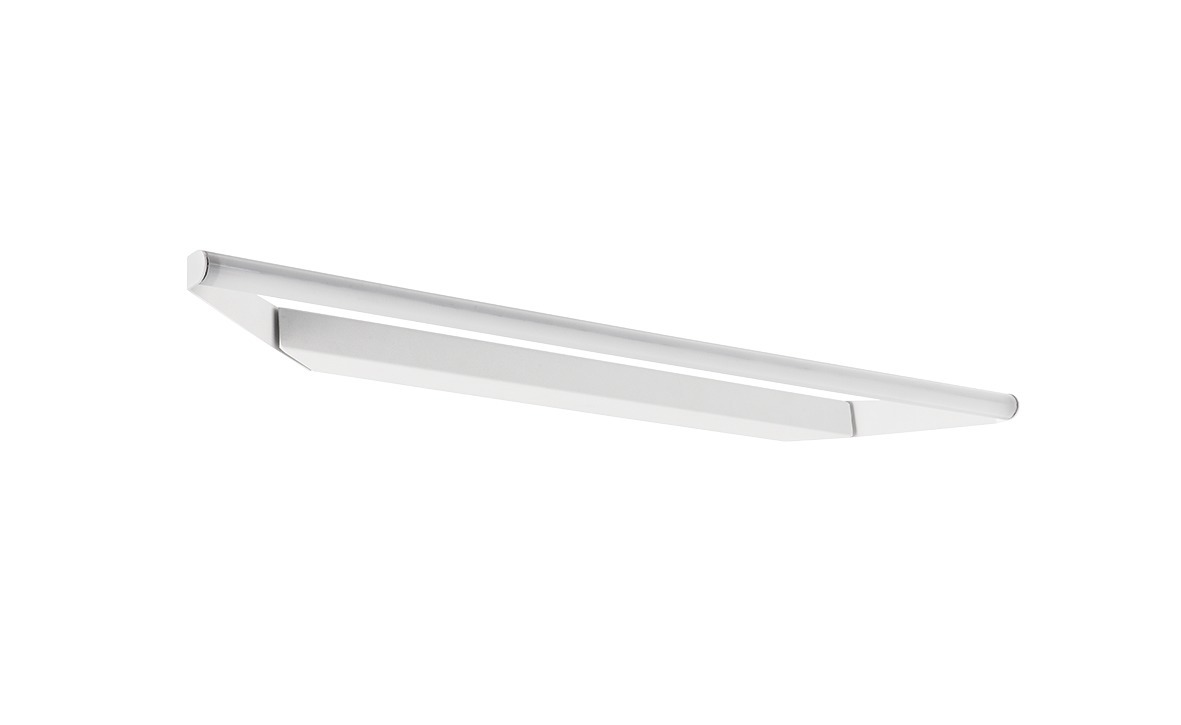

Double emission wall lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 30 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 1441 lm, with a 144.1 lm/W nominal luminous efficacy.
The device body is made of iron and features a white finish, processed by means of coating; the diffuser is made of PC; the mounting frame is made of iron, with a white finish, processed by means of coating. The ingress protection degree is IP44; the total weight is of 0.685 kg.
The total absorbed power is 11 W.
The device features protection class I and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
