Clark316
C00140SEWMW
Outdoor / Projectors
Projectors | 90-264 V AC /180-280 V DC
1 arrayLED 3.2 W DC - 4.3 W AC















IP | IP68 |
---|---|
IK | 10 |
Optic | Medium Wide Flood |
Degrees | 44.2° |
CCT | 3000 K |
CRI | 80 |
Delivered lumens | 354 lm |
Finishes | Stainless Steel |
Installation position | Wall lights, Ceiling, Floor |
Control | |
Efficiency | 82.3 lm/W |
Source Type | arrayLED |
Technical description

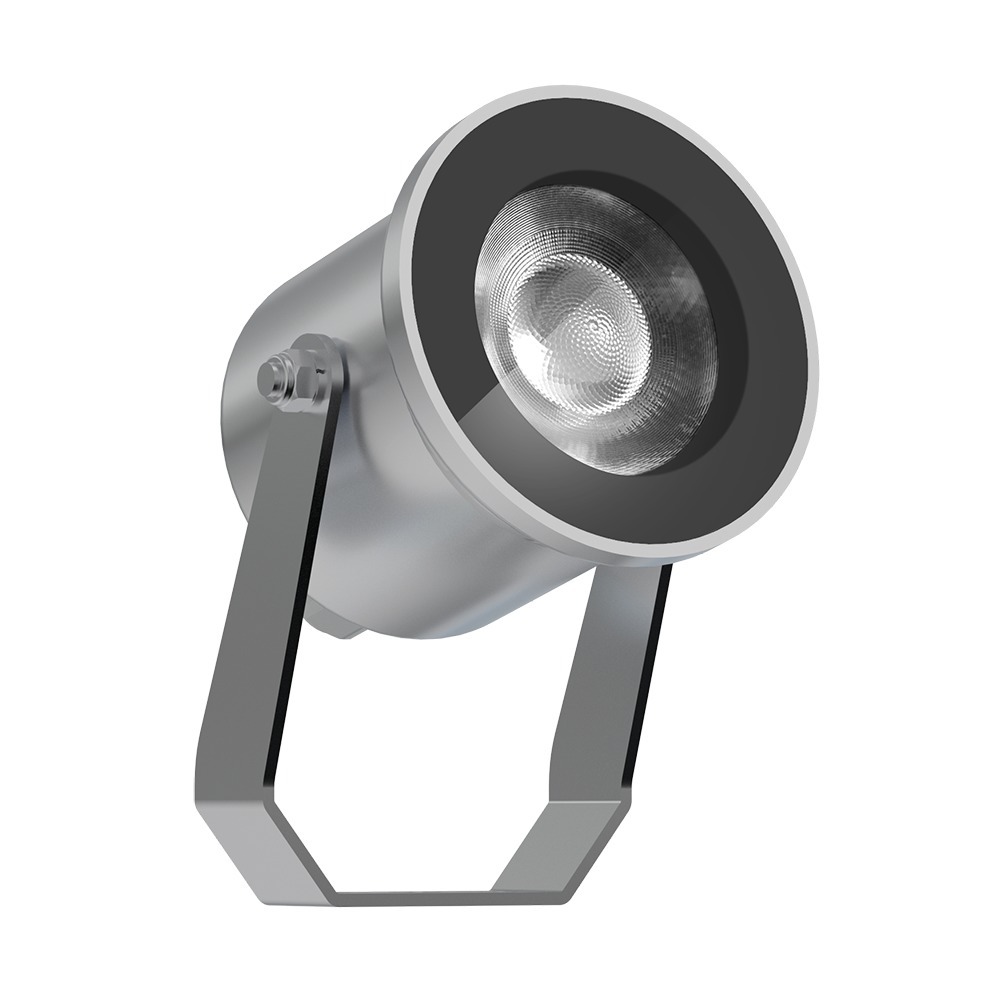

Single emission projectors for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 arrayled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 500 lm, with a 156.3 lm/W nominal luminous efficacy.
The device body is made of aisi 316 steel and features a steel finish, processed by means of electropolishing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 0.6 kg.
The total absorbed power is 4.3 W. The power supply cable is included and features a 1 m length.
The device features protection class II and can be wall lights, ceiling or floor-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
