Clivo

83571M85

Outdoor / Projectors

Projectors | 198-264 V AC /186-275 V DC

1 x powerLED 1.6 W DC - 3 W AC

IP
IP66
Optic
Adjustable Focus
Degrees
11.4°
CCT
2700 K
CRI
80
Delivered lumens
177 lm
Finishes
White
Installation position
Wall lights, Ceiling, Floor
Control
Source Type
powerLED

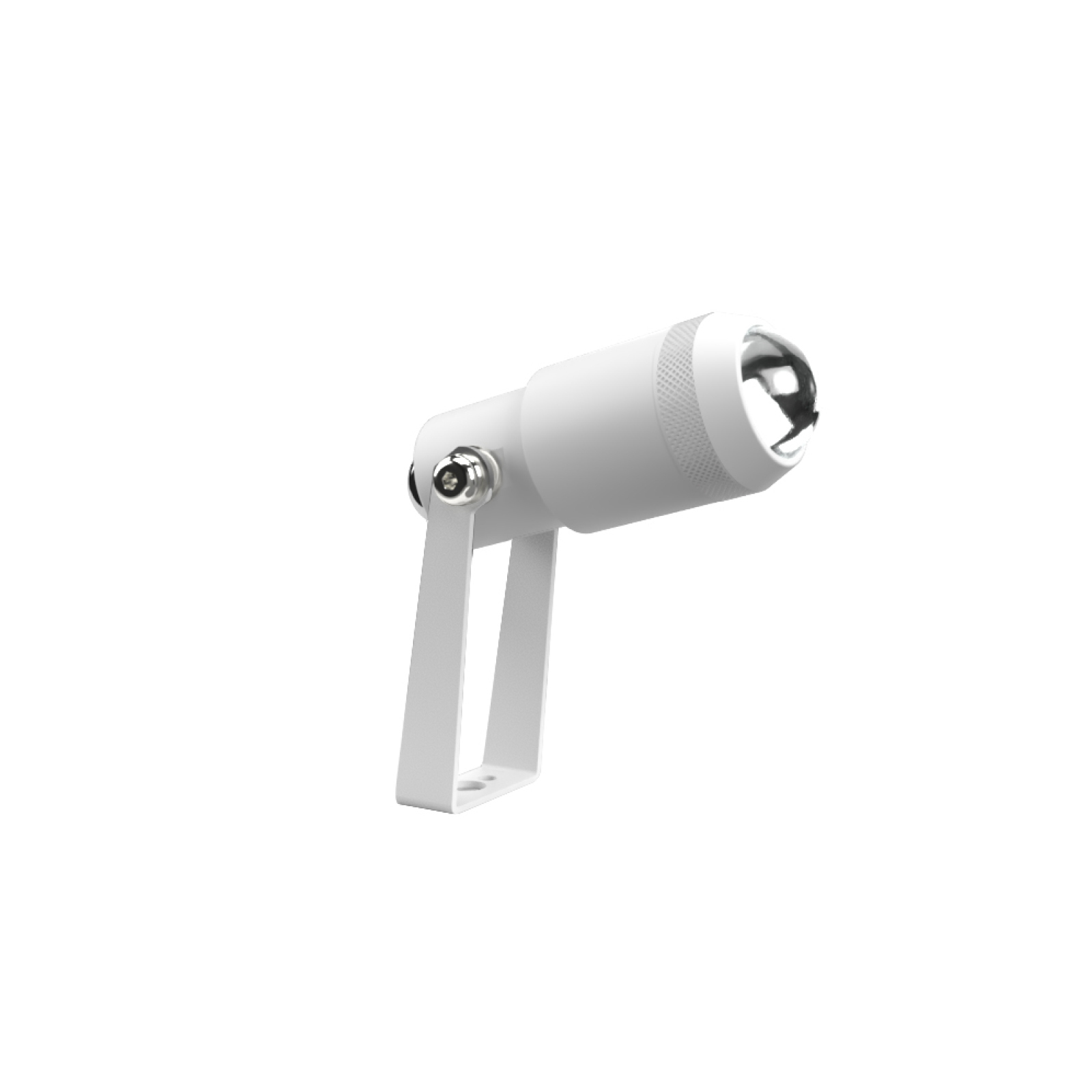

Single emission projectors for outdoor application. The super warm white LED light source with a adjustable focus light distribution is composed of 1 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 233 lm, with a 145.6 lm/W nominal luminous efficacy.

The device body is made of ot58 brass and features a white finish, processed by means of powder coating; the diffuser is made of extra clear glass. The ingress protection degree is IP66; the total weight is of 0.3 kg.

The total absorbed power is 3 W. The power supply cable is included and features a 1 m length.

The device features protection class II and can be wall lights, ceiling or floor-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

Photometric data

2D/3D Drawings

Accessories
