Crew_1
8281
Indoor / Ceiling Lights, Pendant Lights, Wall Mounted Lights
Wall Lights - Ceiling Downlights - Pendant Luminaires | 220-240 V
1 topLED 21 W DC - 22 W AC
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 124.2° |
| CCT | 3000 K |
| CRI | 80 |
| Delivered lumens | 1800 lm |
| Finishes | Grey |
| Installation position | Wall lights, Ceiling |
| Control | |
| Efficiency | 81.8 lm/W |
| Source Type | topLED |
Technical description

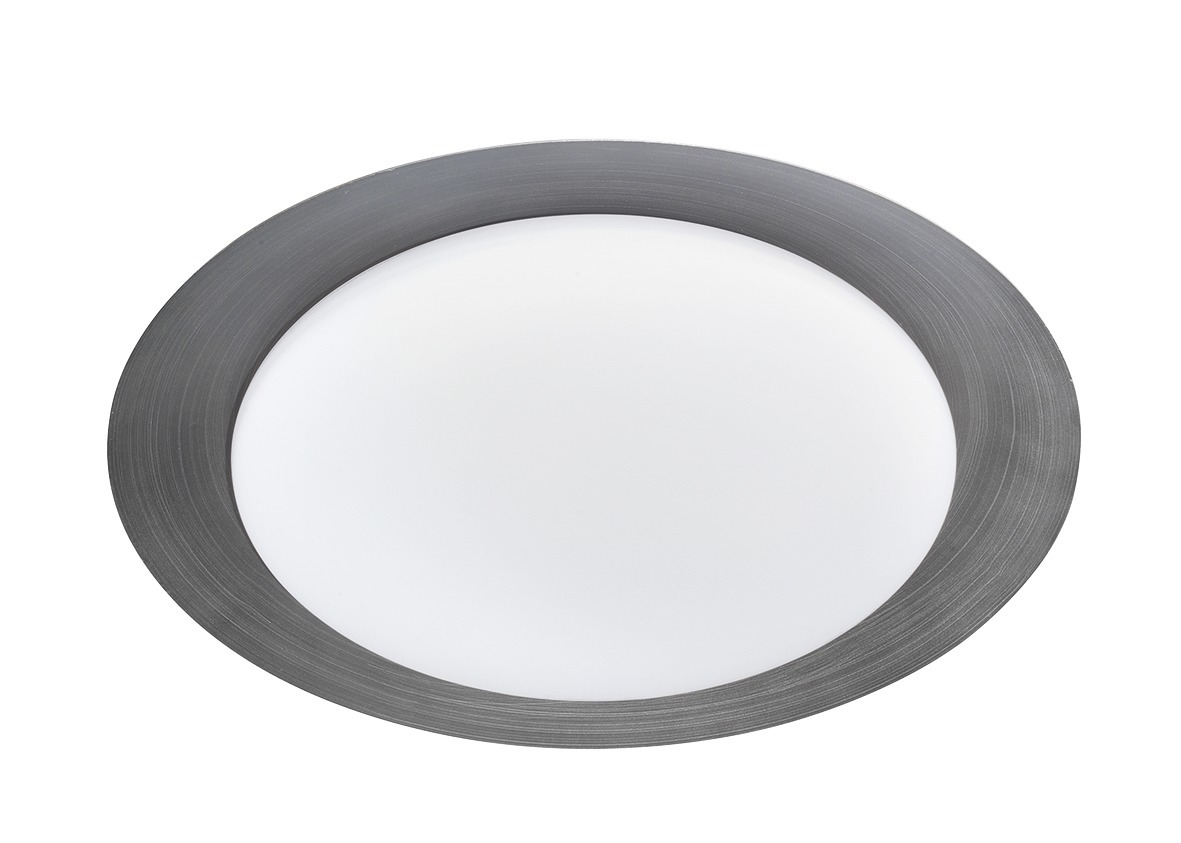

Single emission wall lights, wall lights, ceiling downlights, pendant luminaires or pendant luminaires for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 2460 lm, with a 117.1 lm/W nominal luminous efficacy.
The device body is made of iron and features a dark iron finish, processed by means of brushing; the diffuser is made of pmma. The ingress protection degree is IP40; the total weight is of 1.5 kg.
The total absorbed power is 22 W.
The device features protection class I and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
