Cubit Pro
76367M15
Outdoor / Wall lighting
Wall Lights | 198-264 V AC /200-300 V DC
4 x powerLEDs - 1 arrayLED 12.6 W DC - 15 W AC












IP | IP65 |
---|---|
IK | 08 |
Optic | Ultra Spot + Spot |
Degrees | 15° |
CCT | 2700 K |
CRI | 80 |
Delivered lumens | 678 lm |
Finishes | Black |
Installation position | Wall lights |
Control | DALI-2 |
Efficiency | 45.2 lm/W |
Source Type | powerLEDs, arrayLED |
Technical description

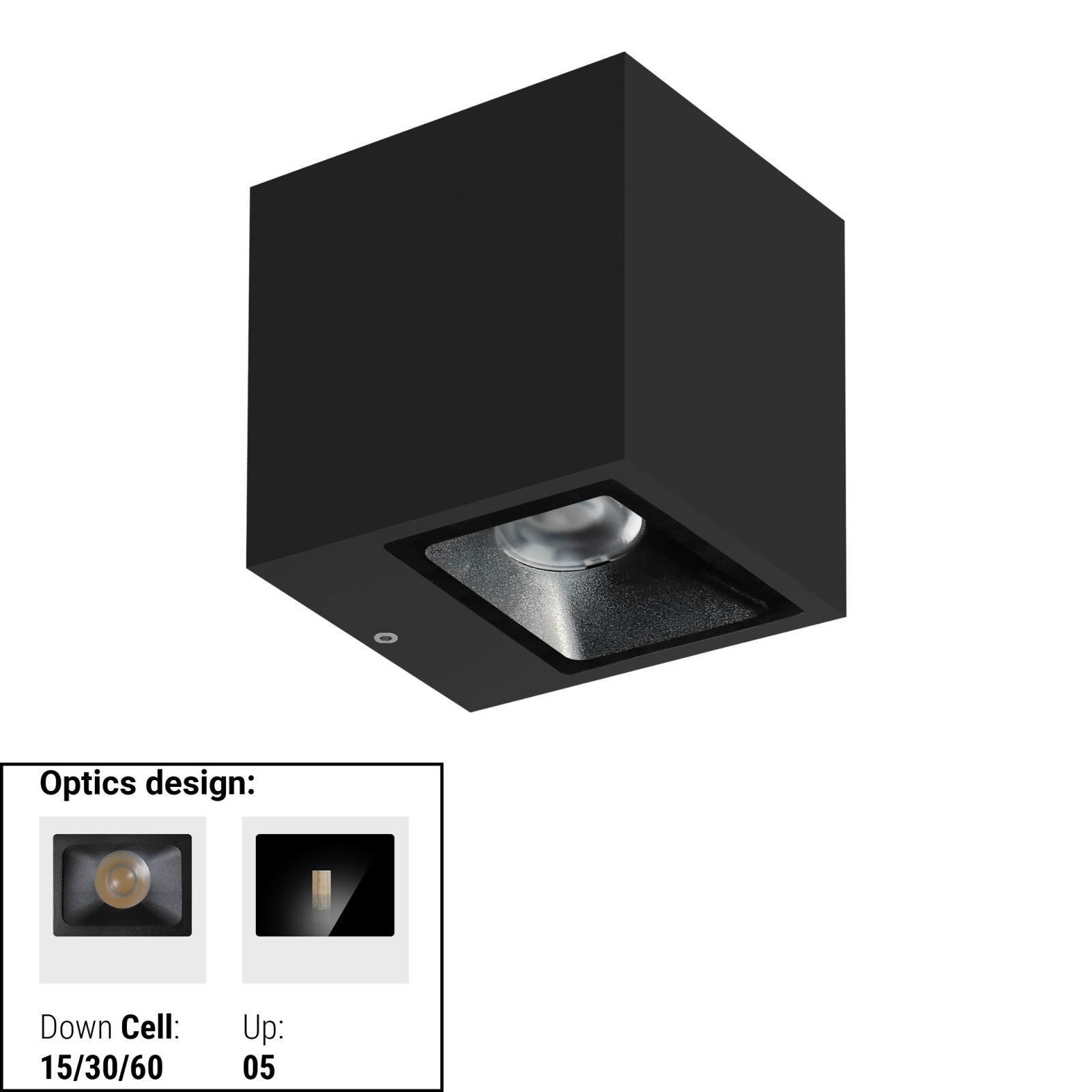

Double emission wall lights for outdoor application. The super warm white LED light source with a ultra spot light distribution is composed of 4 powerled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 837 lm, with a 132.9 lm/W nominal luminous efficacy The super warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 925 lm, with a 146.8 lm/W nominal luminous efficacy.
The device body is made of die-cast aluminium en ab - 46100 and features a black finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 1.53 kg.
The total absorbed power is 15 W.
The device features protection class I and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
Downloads
Documentation
Photometric data
2D/3D Drawings
