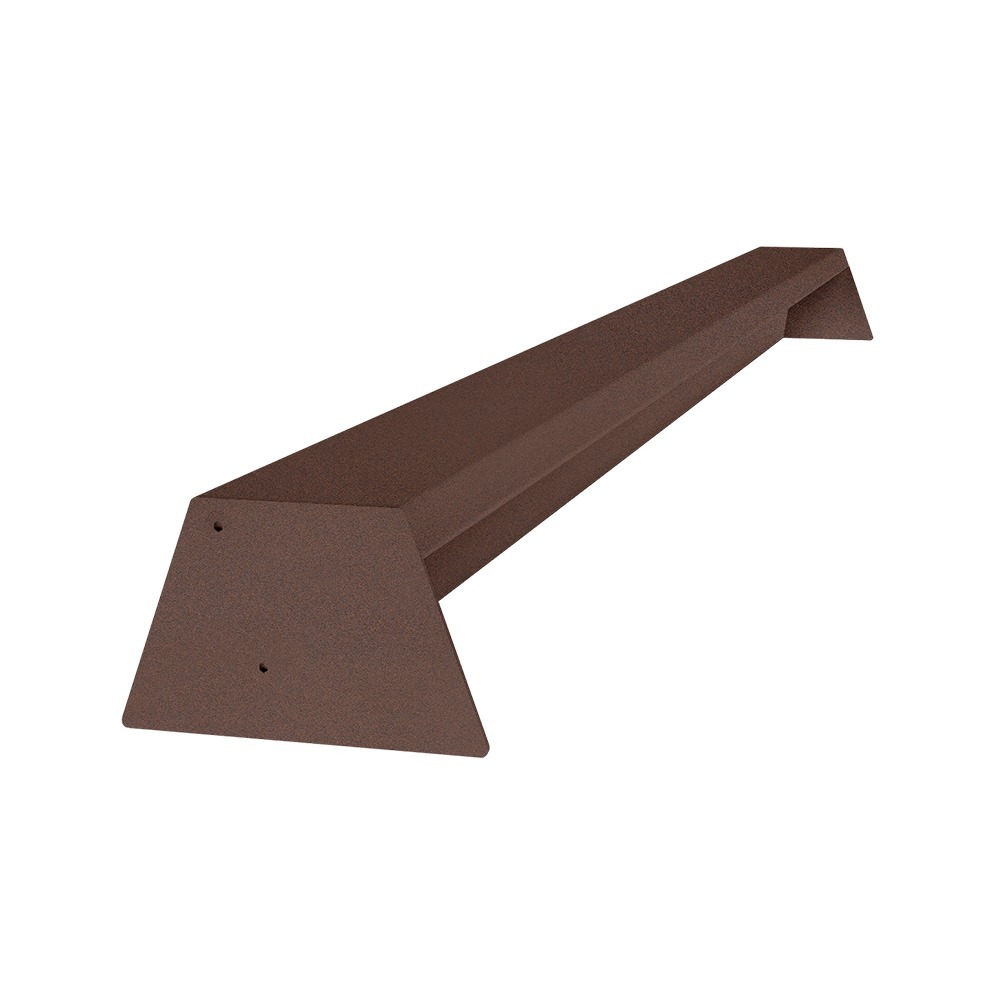

Dirigo Cut-Off Complete Module
C00222DBNWW
Outdoor / Linear Lighting
Lines | 180-264 V AC /254-370 V DC
140 topLED 6.5 W DC - 9 W AC
| IP | IP67 |
|---|---|
| IK | 09 |
| Optic | Asymmetric Wallwasher |
| Degrees | 180° |
| CCT | 4000 K |
| CRI | >90 |
| Delivered lumens | 343 lm |
| Finishes | Dark brown |
| Installation position | Wall lights, Ceiling, Floor |
| Control | |
| Efficiency | 47.6 lm/W |
| Source Type | topLED |
Technical description
Single emission lines for outdoor application. The natural white LED light source with a asymmetric wallwasher light distribution is composed of 140 topled LEDs with CCT of 4000 K and a CRI >90; the source luminous flux is 914 lm, with a 140.6 lm/W nominal luminous efficacy.
The device body is made of aluminium 6060 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of uv resistant polymethylmethacrylate. The ingress protection degree is IP67; the total weight is of 2 kg.
The total absorbed power is 9 W.
The device features protection class II and can be wall lights, ceiling or floor-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
