Dublight_SQ
7489
Indoor / Ceiling Lights
Ceiling Downlights | 220-240 V
2 topLED 21 W DC - 23 W AC
| IP | IP40 |
|---|---|
| Optic | Diffused |
| Degrees | 92° |
| CCT | 3000 K |
| CRI | 80 |
| Delivered lumens | 1824 lm |
| Finishes | White |
| Installation position | Ceiling |
| Control | |
| Efficiency | 79.3 lm/W |
| Source Type | topLED |

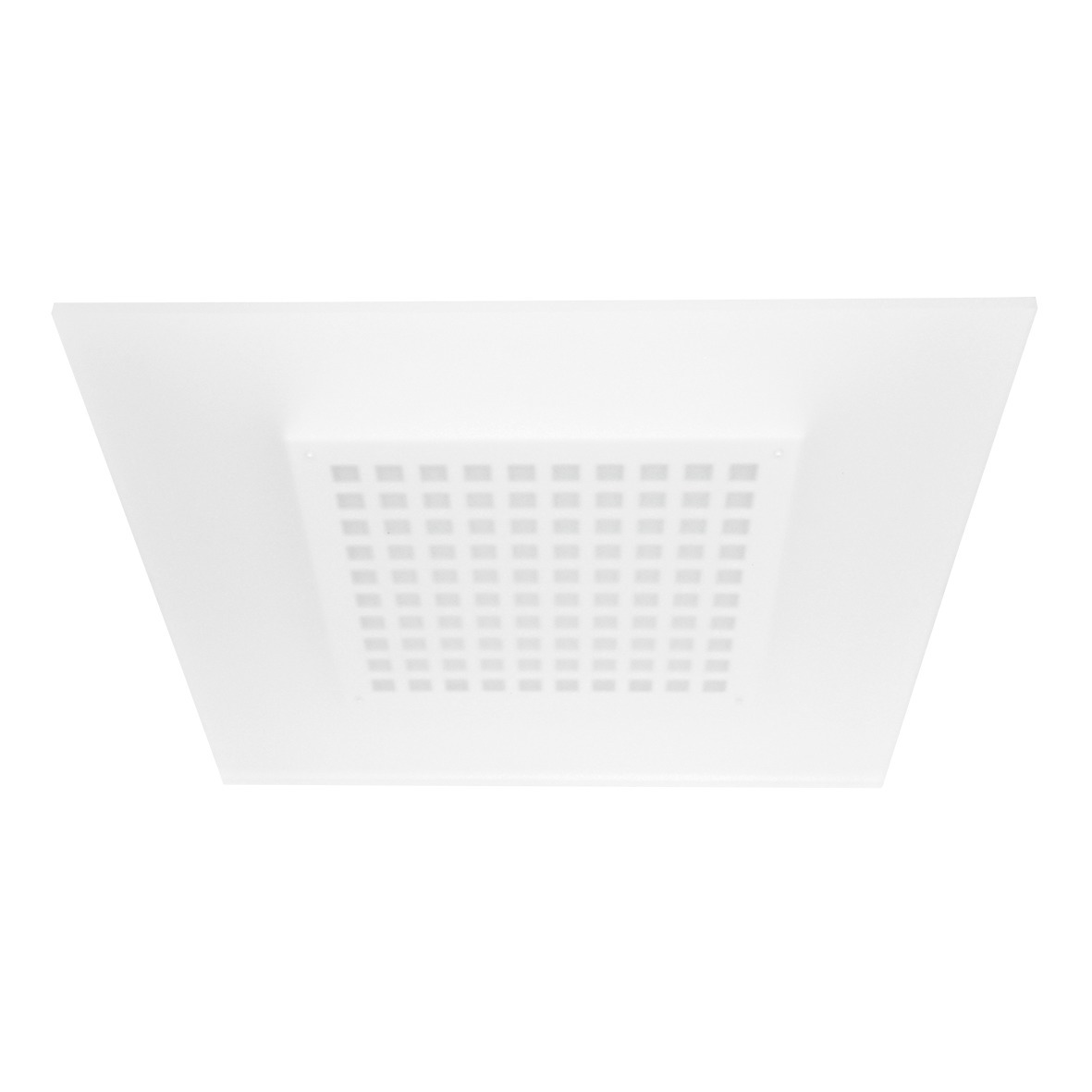

Technical description
Single emission ceiling downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 2 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 2800 lm, with a 133.3 lm/W nominal luminous efficacy.
The diffuser is made of pmma with a satin finishing treatment; the mounting frame is made of iron, with a white finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 4.5 kg.
The total absorbed power is 23 W.
The device features protection class I and can be ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
