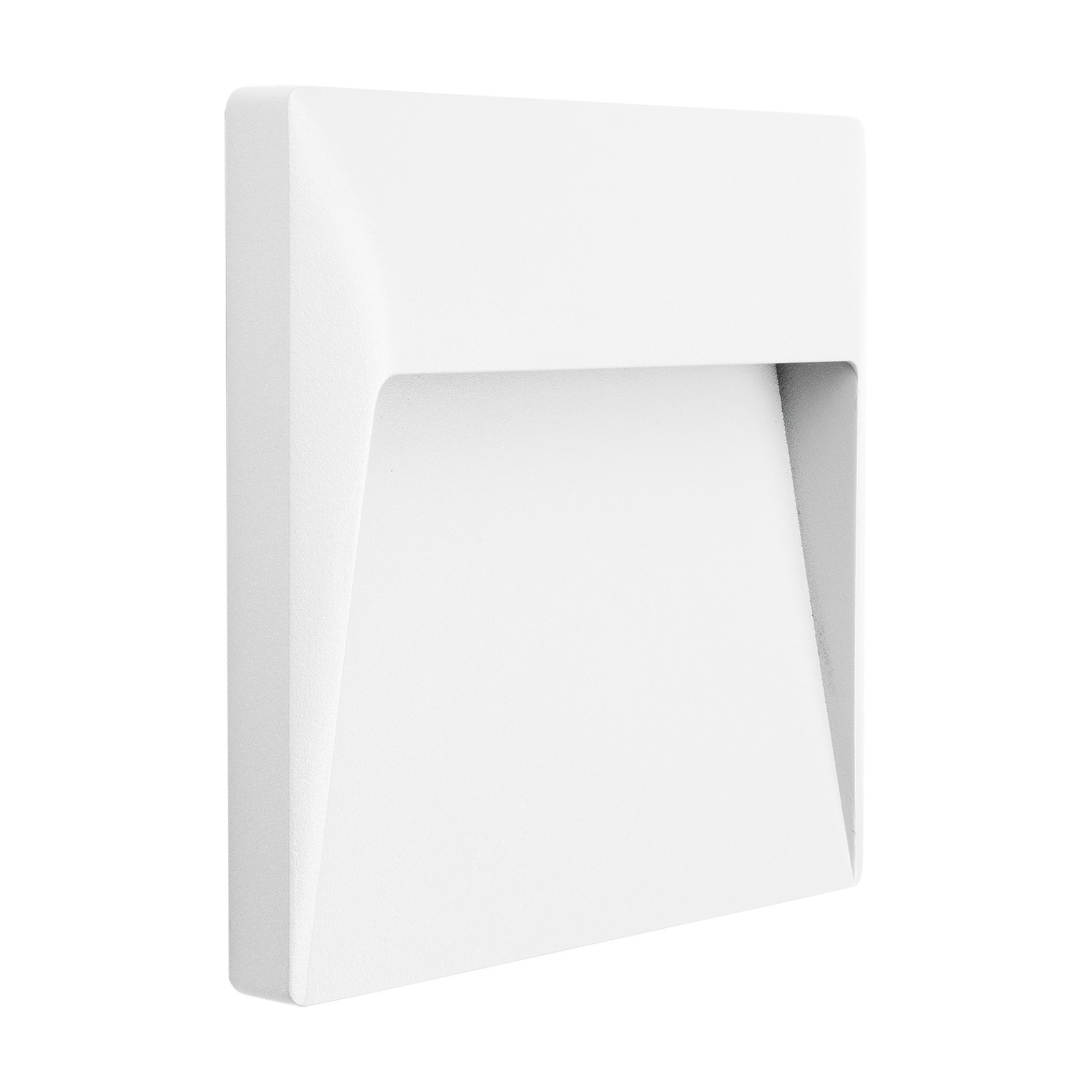

Envelope_W Wall-Recessed

81343W07

Outdoor / Wall lighting, Step lights

Wall Lights | 198-264 V AC /180-275 V DC

21 topLED 6 W DC - 8 W AC

IP
IP65
IK
10
Optic
Asymmetric Wallwasher
Degrees
123.4°
CCT
3000 K
CRI
80
Delivered lumens
445 lm
Finishes
White
Installation position
Wall lights
Control
Efficiency
55.6 lm/W
Source Type
topLED

Single emission wall lights for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 21 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 669 lm, with a 111.5 lm/W nominal luminous efficacy.

The device body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 0.850 kg.

The total absorbed power is 8 W. The power supply cable is included and features a 0.3 m length.

The device features protection class II and can be wall lights-mounted with an outer casing, code 99744(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.
