Eta-C30
9916
Indoor / Projectors, Catenary and Systems
Systems - Projectors | 198-264 V
2 arrayLED 25 W DC - 27 W AC
| IP | IP20 |
|---|---|
| Optic | Spot |
| Degrees | 15.4° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 2308 lm |
| Finishes | White |
| Installation position | Cable |
| Control | |
| Efficiency | 85.5 lm/W |
| Source Type | arrayLED |
Technical description

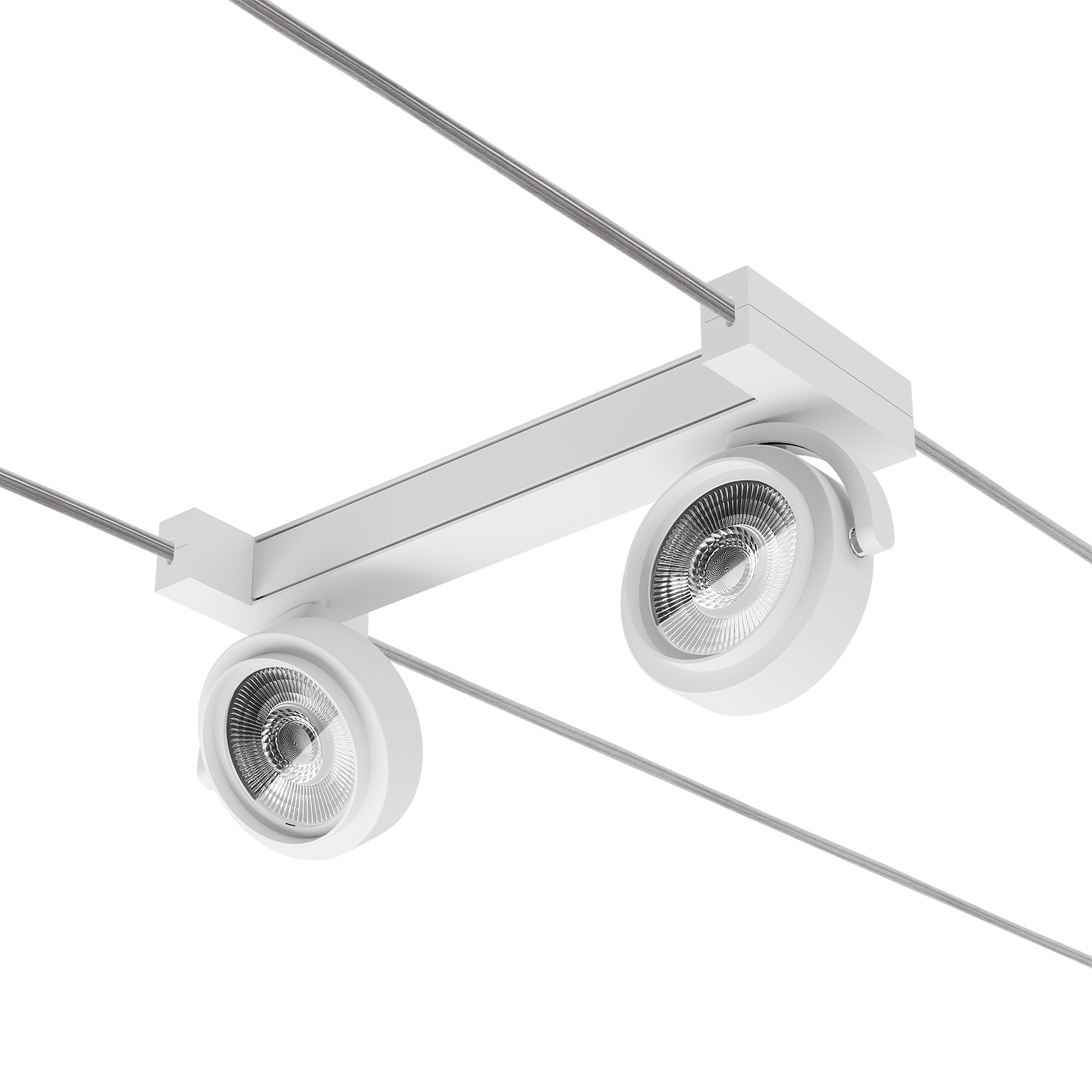

Single emission systems or projectors for indoor application. The warm white LED light source with a spot light distribution is composed of 2 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 2880 lm, with a 115.2 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a white finish, processed by means of coating; the diffuser is made of PC. The ingress protection degree is IP20; the total weight is of 1.100 kg.
The total absorbed power is 27 W.
The device features protection class II and can be cable-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
