Gemini_W2

9677M

New

Indoor / Wall Mounted Lights

Wall Lights | 220-240 V

72 topLED 18 W DC - 19 W AC

IP
IP40
Optic
Diffused
CCT
2700 K
CRI
90
Delivered lumens
1949 lm
Finishes
Mirrored bronze
Installation position
Wall lights
Control
Efficiency
102.6 lm/W
Source Type
topLED

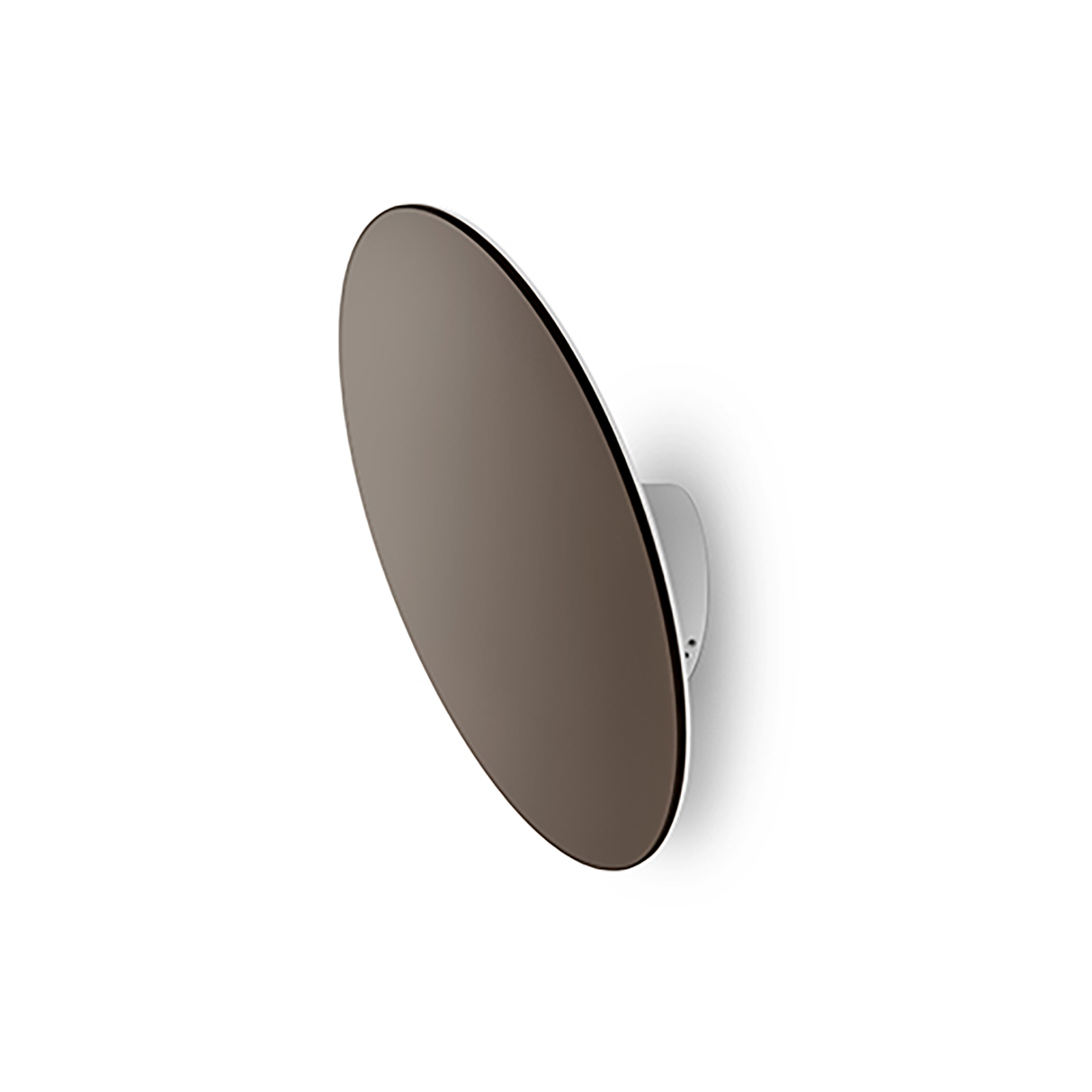

Double emission wall lights for indoor application. The super warm white LED light source with a diffused light distribution is composed of 72 topled LEDs with CCT of 2700 K and a CRI 90; the source luminous flux is 2006 lm, with a 111.4 lm/W nominal luminous efficacy.

The device body is made of glass; the diffuser is made of pmma with a satin finishing treatment; the mounting frame is made of aluminium, with a white finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 2.100 kg.

The total absorbed power is 19 W.

The device features protection class I and can be wall lights-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

Photometric data

2D/3D Drawings
