Gypsum_D
8873
Indoor / Recessed Downlights
Downlights | 220-240 V
3 topLED 31 W DC - 35 W AC
| IP | IP20 |
|---|---|
| Optic | Diffused |
| Degrees | 65.6° |
| CCT | 3000 K |
| CRI | 80 |
| Delivered lumens | 1916 lm |
| Finishes | Chalk white |
| Installation position | Ceiling |
| Control | |
| Efficiency | 54.7 lm/W |
| Source Type | topLED |
Technical description

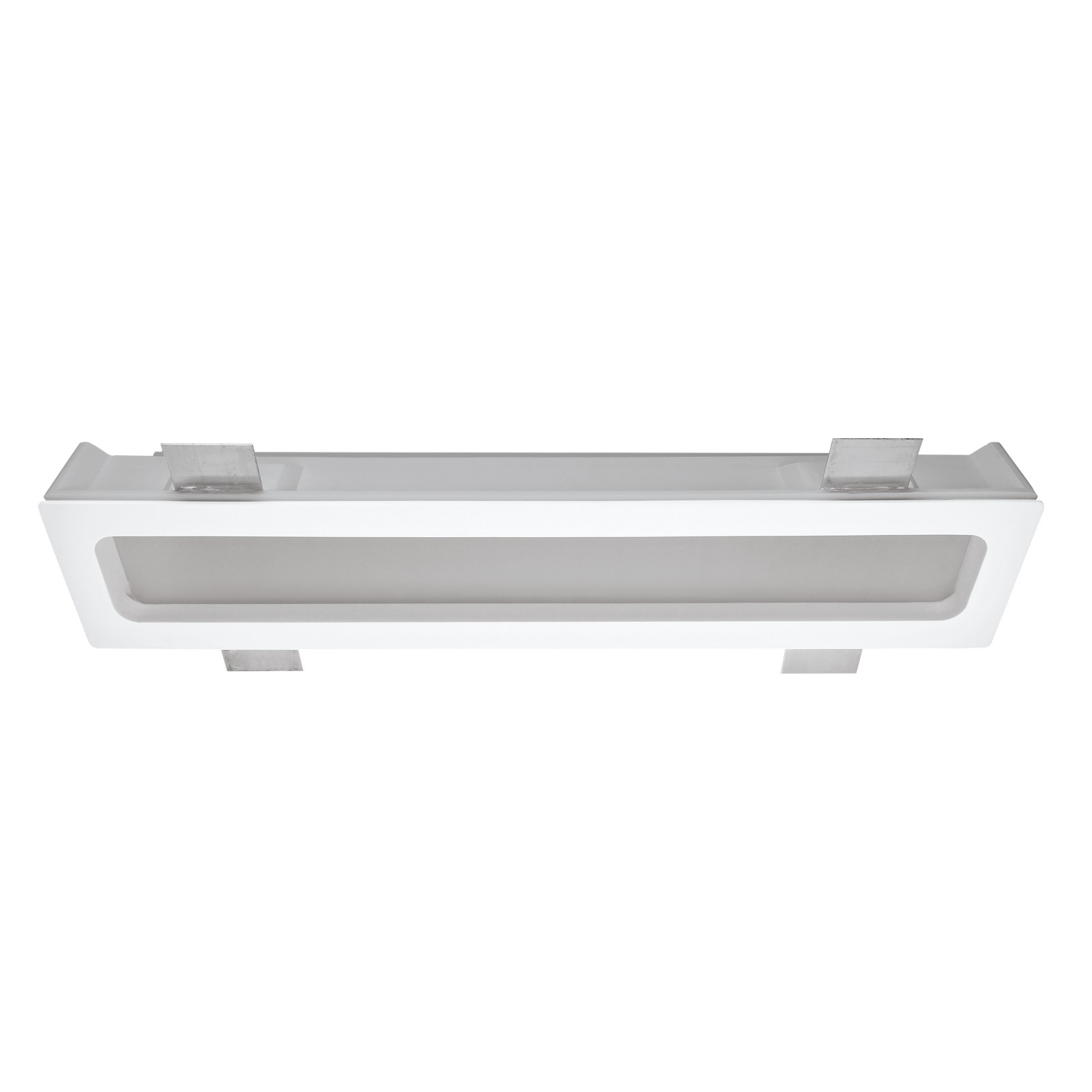

Single emission recessed downlights for indoor application. The warm white LED light source with a diffused light distribution is composed of 90 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 4149 lm, with a 133.8 lm/W nominal luminous efficacy.
The device body is made of plaster and features a white finish; the diffuser is made of PC with a sandblasting treatment. The ingress protection degree is IP20; the total weight is of 3.76 kg.
The total absorbed power is 35 W.
The device features protection class I and can be ceiling-mounted, with a 662 x 142 mm hole (in plasterboard).
Compliant with the EN 60598-1 standard and its specific provisions.
