Gypsum_QC2
8865
Indoor / Recessed Downlights
Downlights
arrayLED 0 W DC 700 mA
| IP | IP20 |
|---|---|
| Optic | Diffused |
| Degrees | 75.2° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 456 lm |
| Finishes | Chalk white |
| Installation position | Wall lights, Ceiling |
| Control | |
| Efficiency | 65.1 lm/W |
| Source Type | arrayLED |
Technical description

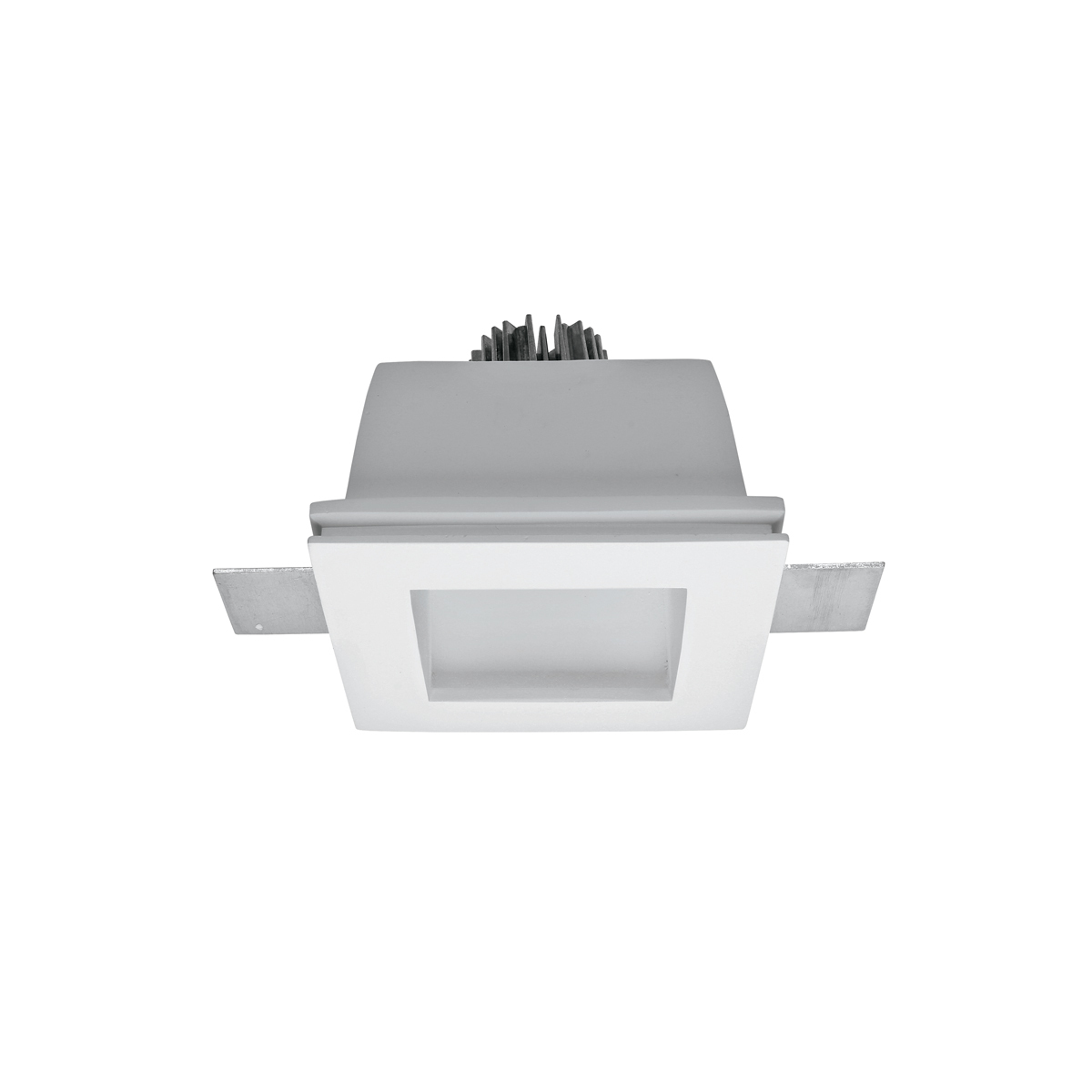

Single emission recessed downlights for indoor application. The warm white LED light source with a diffused light distribution arrayled LED with CCT of 3000 K and a CRI 90.
The device body is made of plaster and features a white finish; the diffuser is made of PC with a sandblasting treatment. The ingress protection degree is IP20; the total weight is of 0.6298 kg. The power supply driver is not provided and is to be ordered separately.
The total absorbed power is 0 W.
The device features protection class III and can be wall lights or ceiling-mounted, with a 126 x 126 mm hole (in plasterboard).
Compliant with the EN 60598-1 standard and its specific provisions.
