All Gypsum_WR

Gypsum_WR

60910W00

Indoor / Wall Mounted Lights, Step lights

Wall Lights

1 x powerLED 1 W DC 350 mA

IP
IP20
Optic
Diffused
CCT
3000 K
CRI
90
Delivered lumens
67 lm
Finishes
Chalk white
Installation position
Wall lights, Ceiling
Control
Efficiency
33.5 lm/W
Source Type
powerLED

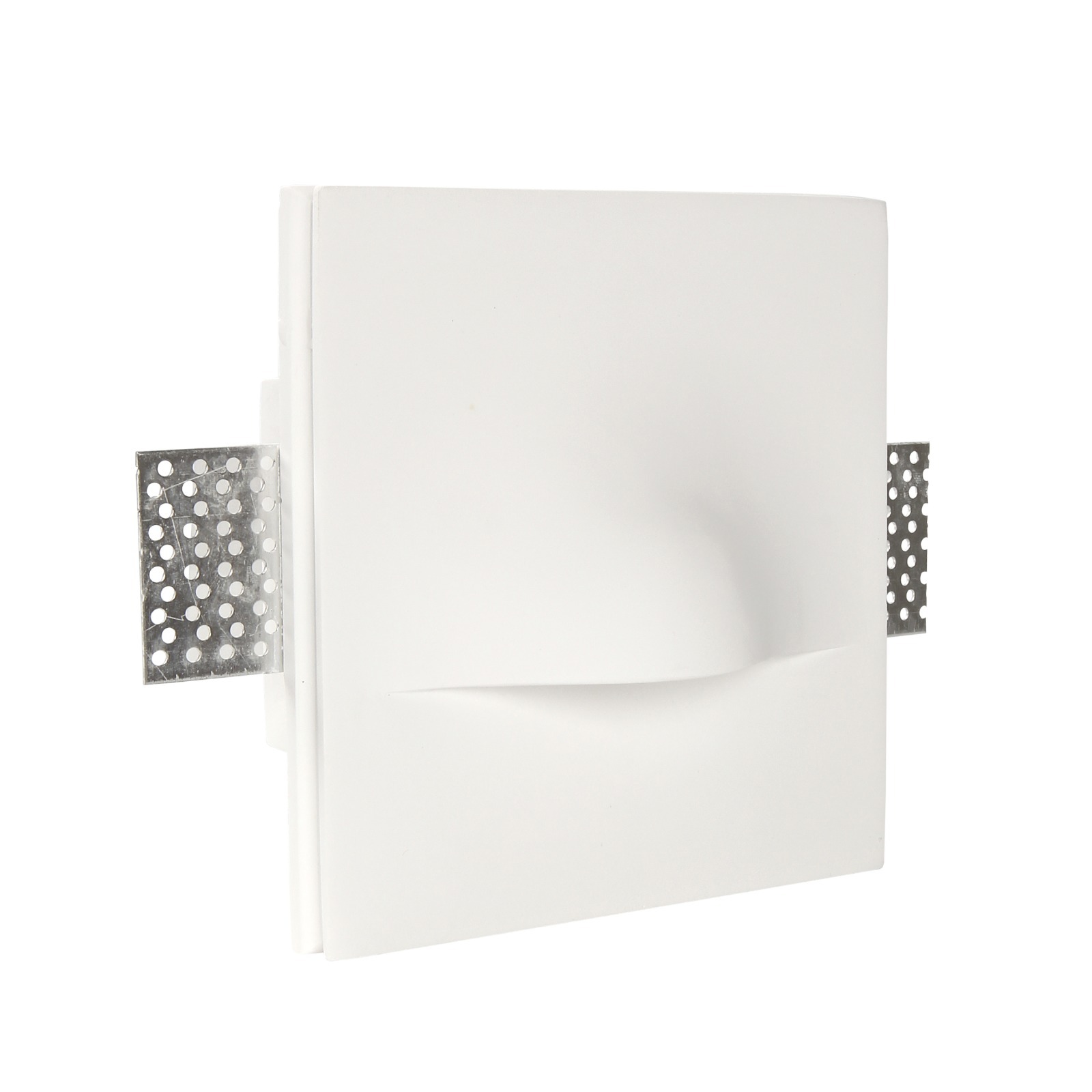

Single emission wall lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 1 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 126 lm, with a 126.0 lm/W nominal luminous efficacy.

The device body is made of plaster and features a white finish; the diffuser is made of pmma. The ingress protection degree is IP20; the total weight is of 0.79 kg. The power supply driver is not provided and is to be ordered separately.

The total absorbed power is 1 W.

The device features protection class III and can be wall lights, wall lights, ceiling or ceiling-mounted, with a 170 x 170 mm hole (in plasterboard) with an outer casing, code 61260(for concrete or masonry).

Compliant with the EN 60598-1 standard and its specific provisions.

Electronics

Code 89144

Slim - On/Off Driver - 350mA 6.6V 1-2W | On/Off Driver 198~264V AC / 180~275V DC

FamilyOn/Off Driver
IPIP40
OperationCC
Slim - On/Off Driver - 350mA 6.6V 1-2W | On/Off Driver 198~264V AC / 180~275V DC
.zip

Code 89145

Slim - On/Off Driver - 350mA 20V 3-6W / 350mA 20V 3.5-7W | On/Off Driver 198~264V AC / 180~275V DC

FamilyOn/Off Driver
IPIP40
OperationCC
Slim - On/Off Driver - 350mA 20V 3-6W / 350mA 20V 3.5-7W | On/Off Driver 198~264V AC / 180~275V DC
.zip

Code 99115

Boson - 0/1-10V N/O button Multi Current - 1-15 W DC powerLEDs - 350mA 45V / 15 W DC topLED - 350mA 39V / 1.5-18 W DC powerLEDs - 500mA 39V / 19 W DC topLED - 500mA 39V / 2-20 W DC powerLEDs - 630mA 33V | 1-10V N/O button Multi Power 198~264V AC / 180~275V DC

FamilyMulti Power
IPIP40
OperationCC
Boson - 0/1-10V N/O button Multi Current - 1-15 W DC powerLEDs - 350mA 45V / 15 W DC topLED - 350mA 39V / 1.5-18 W DC powerLEDs - 500mA 39V / 19 W DC topLED - 500mA 39V / 2-20 W DC powerLEDs - 630mA 33V | 1-10V N/O button Multi Power 198~264V AC / 180~275V DC
.zip

Code 99344

Argo - DALI Push and Simply Dim Multi Current 3.5-12W DC powerLEDs - 350mA 9-39V / 4.5-18W DC powerLEDs - 500mA 9-39V / 6-24W DC powerLEDs - 630mA 9-39V | DALI Push and Simply Dim Multi Power 198~264V AC / 176~275V DC

FamilyMulti Power
IPIP40
OperationCC
Argo - DALI Push and Simply Dim Multi Current 3.5-12W DC powerLEDs - 350mA 9-39V / 4.5-18W DC powerLEDs - 500mA 9-39V / 6-24W DC powerLEDs - 630mA 9-39V | DALI Push and Simply Dim Multi Power 198~264V AC / 176~275V DC
.zip

You've seen 4 products out of 4

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

Photometric data

2D/3D Drawings

Accessories
