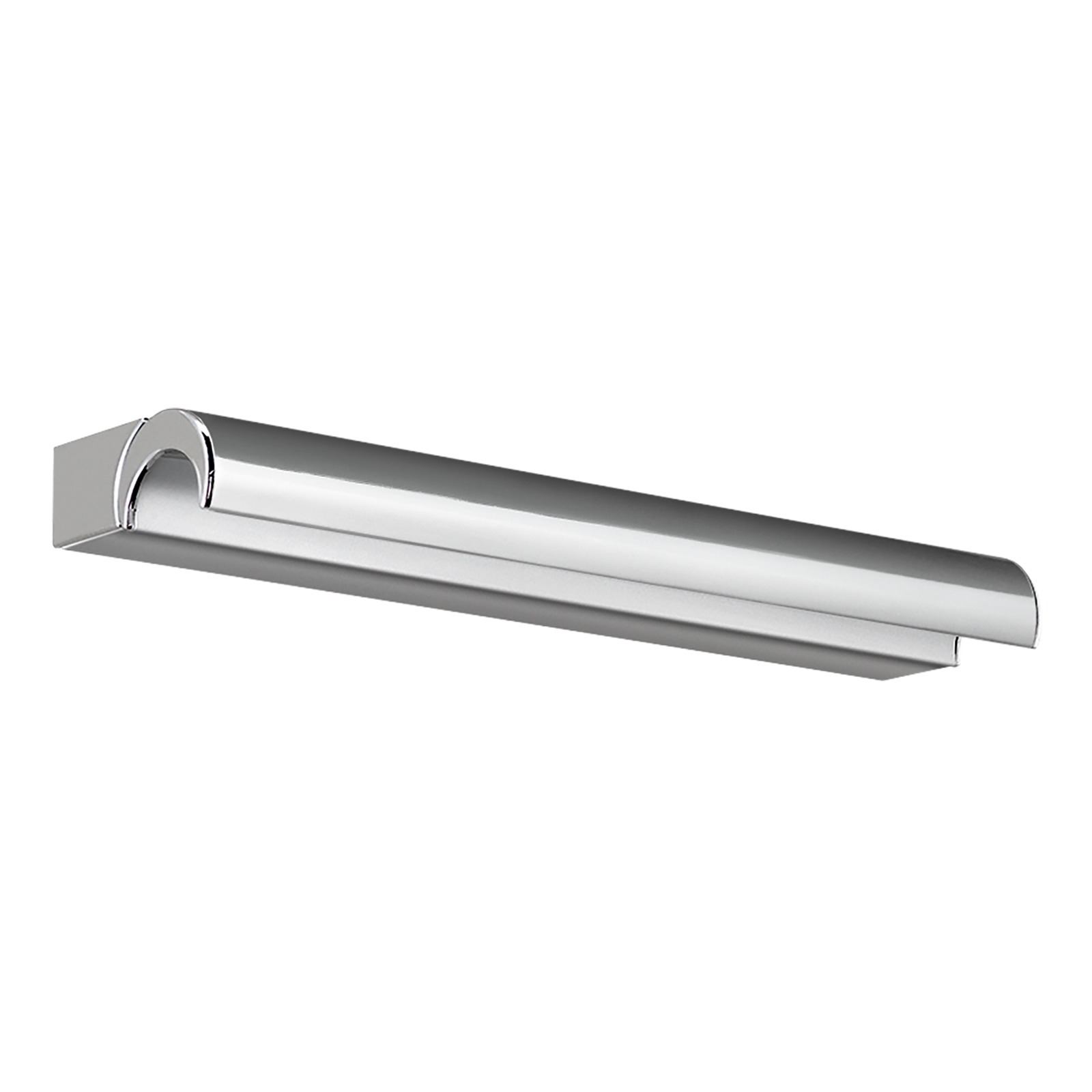

Halfpipe 2_W
9802
Indoor / Wall Mounted Lights
Wall Lights | 220-240 V
1 topLED 9 W DC - 11 W AC
| IP | IP44 |
|---|---|
| Optic | Diffused |
| Degrees | 117.8° |
| CCT | 3000 K |
| CRI | 90 |
| Delivered lumens | 673 lm |
| Finishes | Polished aluminium |
| Installation position | Wall lights |
| Control | |
| Efficiency | 61.2 lm/W |
| Source Type | topLED |
Technical description
Single emission wall lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 48 topled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 1175 lm, with a 130.6 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a translucent finish; the diffuser is made of PC; the mounting frame is made of aluminium, with a translucent finish. The ingress protection degree is IP44; the total weight is of 0.650 kg.
The total absorbed power is 11 W.
The device features protection class I and can be wall lights-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
