High Protection Wired

84411N30

Outdoor / Linear Lighting

Lines | 198-264 V

36 topLED 13 W DC - 14.5 W AC

IP
IP66
IK
08
Optic
Extra Wide Flood
Degrees
101.6°
CCT
4000 K
CRI
92
Delivered lumens
1114 lm
Finishes
Embossed
Installation position
Wall lights, Ceiling
Control
Efficiency
79.6 lm/W
Source Type
topLED

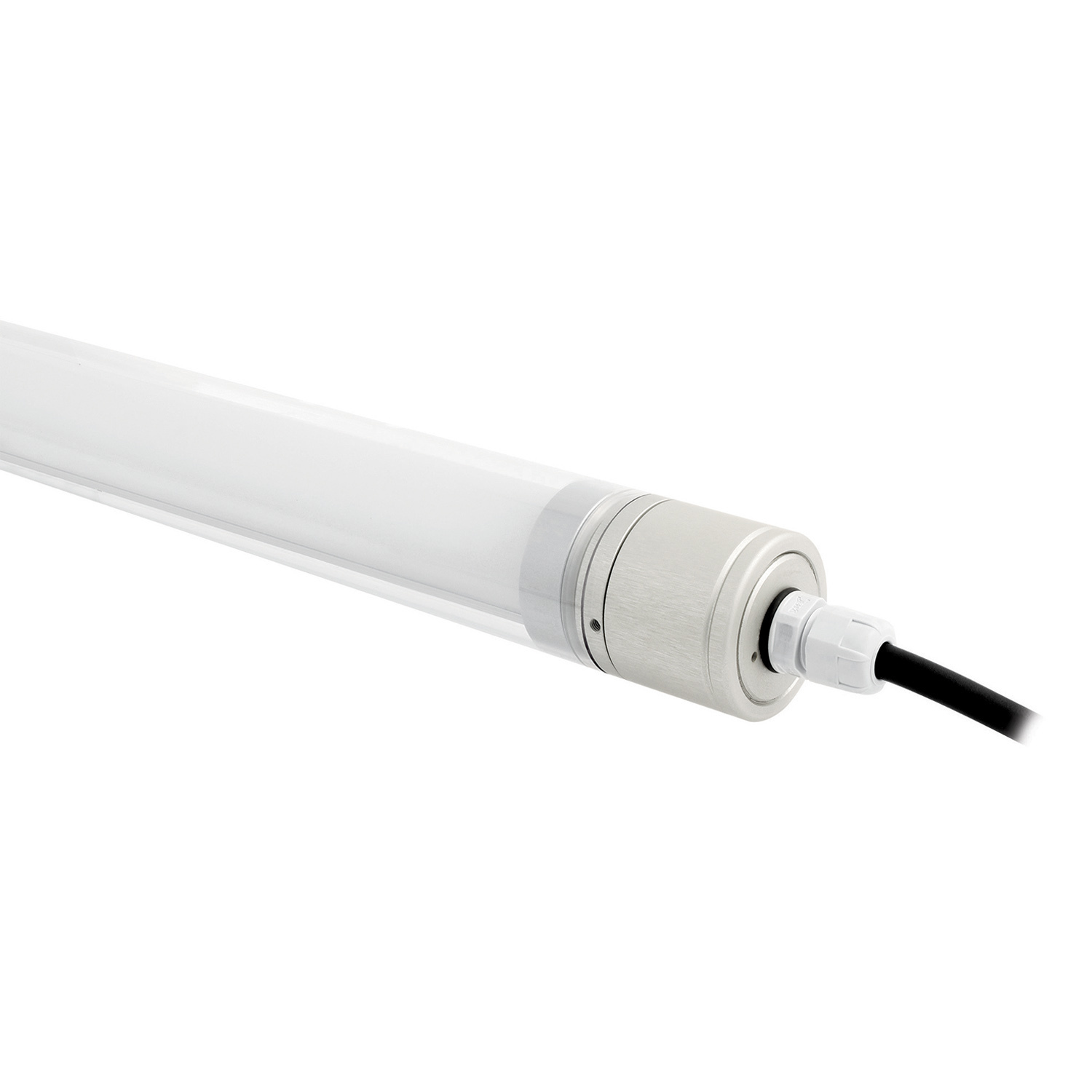

Single emission lines for outdoor application. The natural white LED light source with a extra wide flood light distribution is composed of 36 topled LEDs with CCT of 4000 K and a CRI 92; the source luminous flux is 1501 lm, with a 115.5 lm/W nominal luminous efficacy.

The device body is made of aluminium and features a anodised aluminum finish, processed by means of anodisation; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP66; the total weight is of 0.82 kg.

The total absorbed power is 14.5 W. The power supply cable is included and features a 1 m length.

The device features protection class II and can be wall lights or ceiling-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.

Downloads

Documentation

Data sheet

.pdf

Instruction sheet

.pdf

Product image

.jpeg

Specification text

.txt

Photometric data

2D/3D Drawings

Accessories
