High Protection Wired
84417W30
Outdoor / Linear Lighting
Lines | 198-264 V AC /176-276 V DC
144 topLED 20 W DC - 22 W AC
| IP | IP66 |
|---|---|
| IK | 08 |
| Optic | Extra Wide Flood |
| Degrees | 101.6° |
| CCT | 3000 K |
| CRI | 92 |
| Delivered lumens | 1629 lm |
| Finishes | Embossed |
| Installation position | Wall lights, Ceiling |
| Control | DALI |
| Efficiency | 74.0 lm/W |
| Source Type | topLED |
Technical description

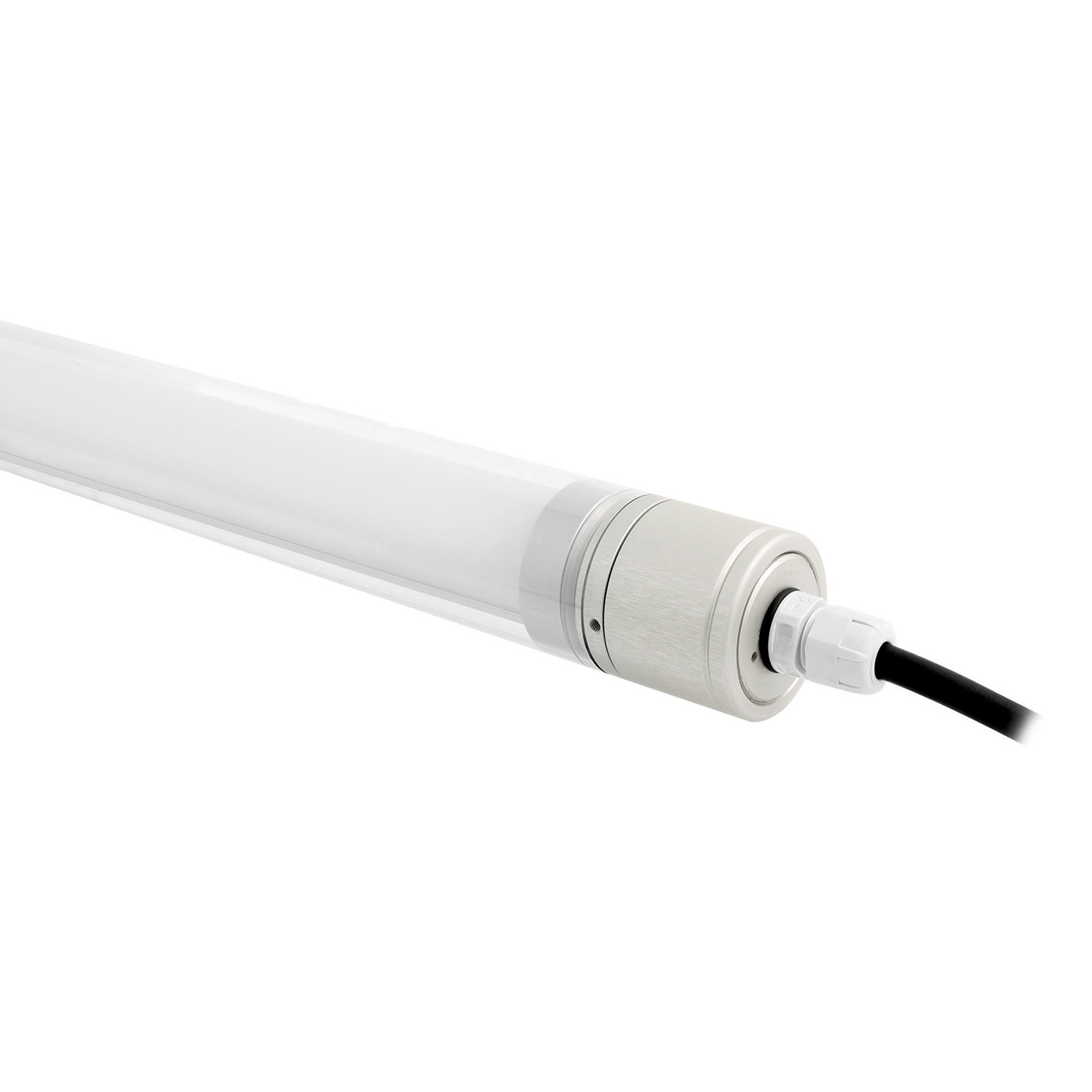

Single emission lines for outdoor application. The warm white LED light source with a extra wide flood light distribution is composed of 144 topled LEDs with CCT of 3000 K and a CRI 92; the source luminous flux is 2479 lm, with a 124.0 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a anodised aluminum finish, processed by means of anodisation; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP66; the total weight is of 1.57 kg.
The total absorbed power is 22 W. The power supply cable is included and features a 1 m length.
The device features protection class II and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
