High Protection Wired
95467N12
Outdoor / Linear Lighting
Lines | 90-264 V
144 topLED 37 W DC - 40.5 W AC
| IP | IP66 |
|---|---|
| IK | 08 |
| Optic | Diffused |
| Degrees | 118.8° |
| CCT | 4000 K |
| CRI | 92 |
| Delivered lumens | 3987 lm |
| Finishes | Embossed |
| Installation position | Wall lights, Ceiling |
| Control | |
| Efficiency | 98.4 lm/W |
| Source Type | topLED |
Technical description

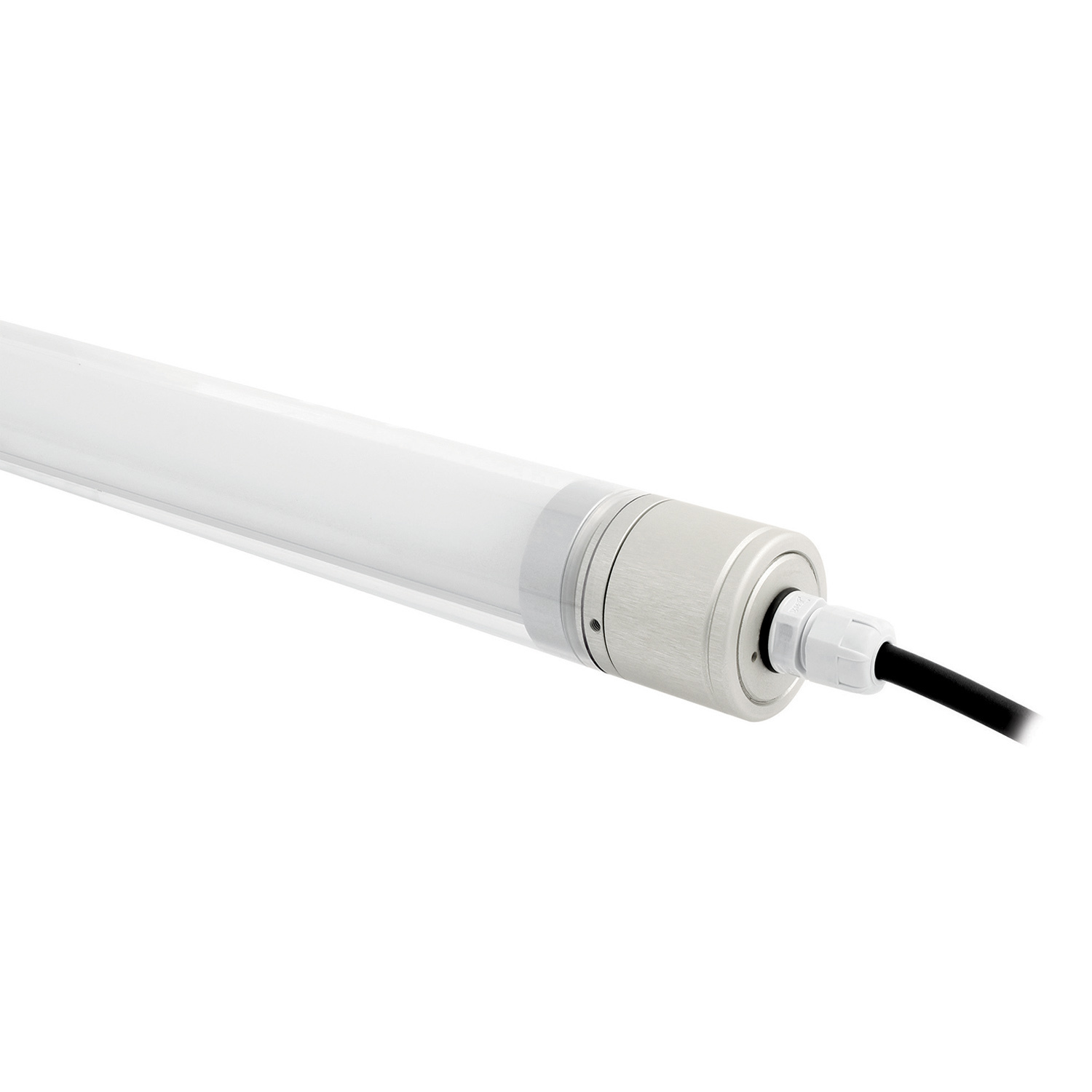

Single emission lines for outdoor application. The natural white LED light source with a diffused light distribution is composed of 144 topled LEDs with CCT of 4000 K and a CRI 92; the source luminous flux is 4248 lm, with a 114.8 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a anodised aluminum finish, processed by means of anodisation; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP66; the total weight is of 1.57 kg.
The total absorbed power is 40.5 W. The power supply cable is included and features a 1 m length.
The device features protection class II and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
