High Protection
84402N12
Outdoor / Linear Lighting
Lines | 198-264 V
36 topLED 13 W DC - 14.5 W AC | Modular
| IP | IP66 |
|---|---|
| IK | 08 |
| Optic | Extra Wide Flood |
| Degrees | 123.8° |
| CCT | 4000 K |
| CRI | 92 |
| Delivered lumens | 1244 lm |
| Finishes | Embossed |
| Installation position | Wall lights, Ceiling |
| Control | DALI |
| Efficiency | 88.9 lm/W |
| Source Type | topLED |

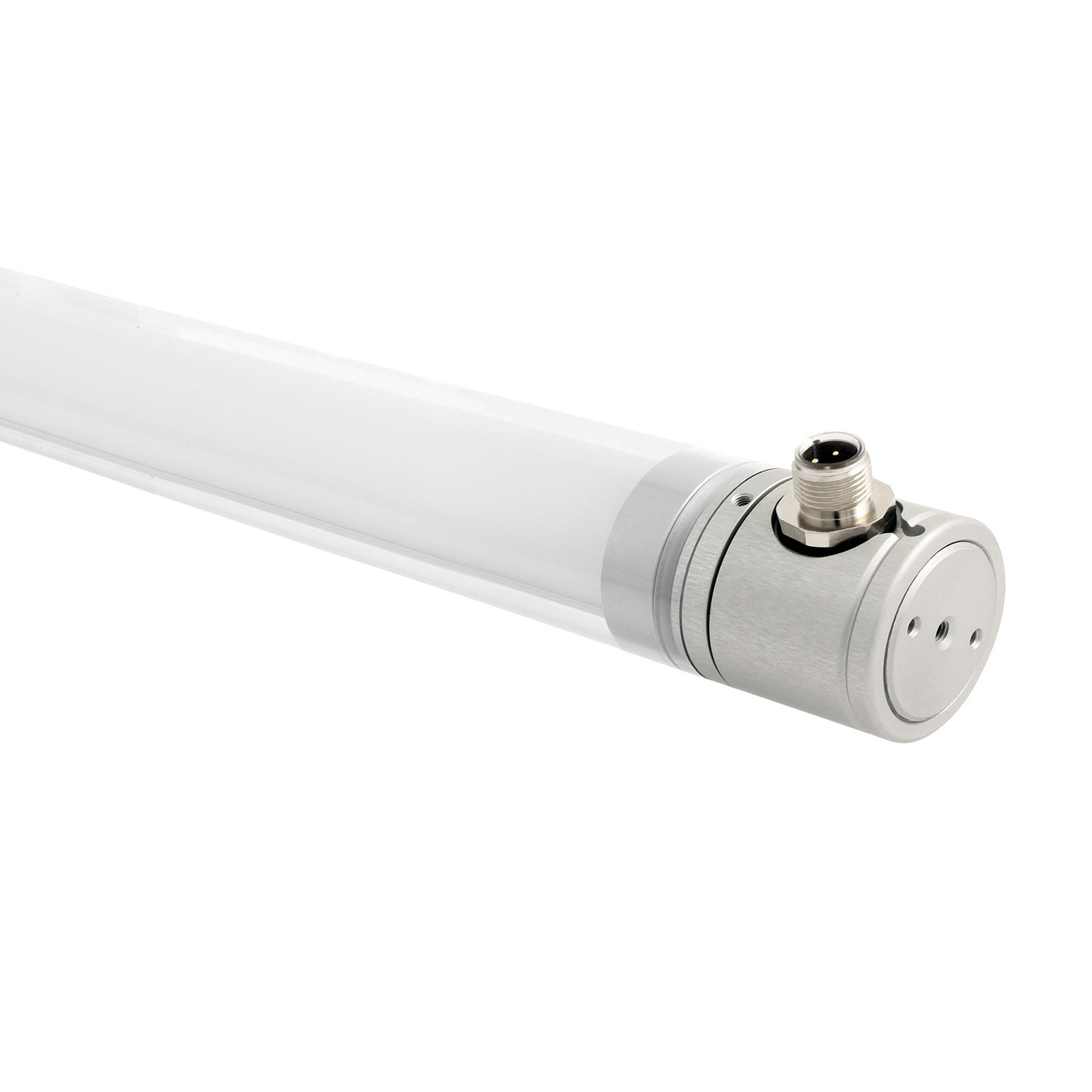

Technical description
Single emission lines for outdoor application. The natural white LED light source with a extra wide flood light distribution is composed of 36 topled LEDs with CCT of 4000 K and a CRI 92; the source luminous flux is 1501 lm, with a 115.5 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a anodised aluminum finish, processed by means of anodisation; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP66; the total weight is of 0.74 kg.
The total absorbed power is 14.5 W.
The device features protection class II and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
