High Wired
84382N12
Indoor / Linear Lights, Industrial lighting
Lines | 198-264 V AC /176-276 V DC
36 topLED 13 W DC 350 mA
| IP | IP40 |
|---|---|
| IK | 08 |
| Optic | Diffused |
| Degrees | 111.4° |
| CCT | 4000 K |
| CRI | 92 |
| Delivered lumens | 1306 lm |
| Finishes | Embossed |
| Installation position | Wall lights, Ceiling |
| Control | DALI |
| Efficiency | 90.1 lm/W |
| Source Type | topLED |
Technical description

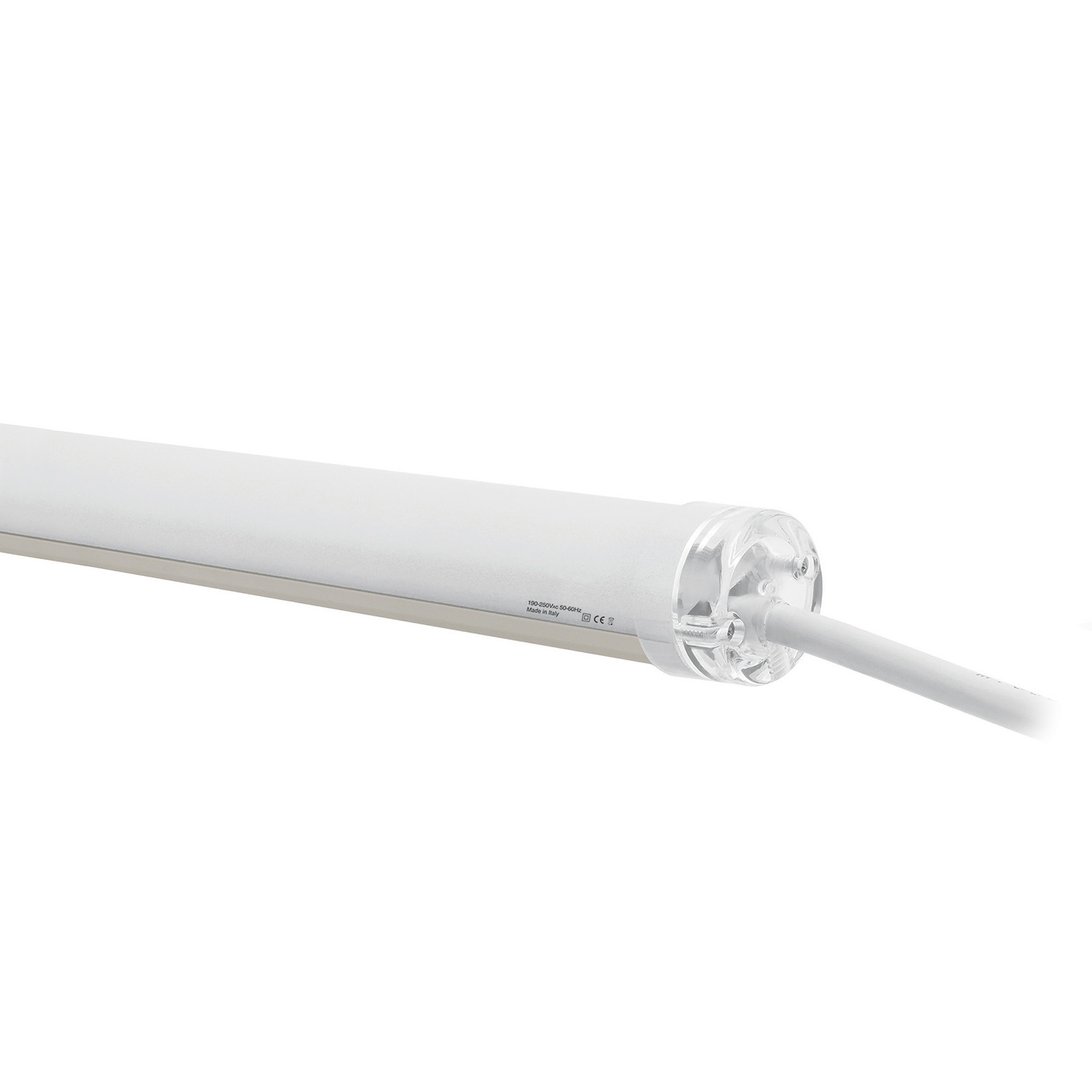

Single emission lines for indoor application. The natural white LED light source with a diffused light distribution is composed of 36 topled LEDs with CCT of 4000 K and a CRI 92.
The device body is made of aluminium and features a anodised aluminum finish, processed by means of anodisation; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 0.47 kg.
The total absorbed power is 14.5 W. The power supply cable is included and features a 1 m length.
The device features protection class II and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
