84388W30

Indoor / Linear Lights, Industrial lighting

Lines | 198-264 V AC /176-276 V DC

144 topLED 20 W DC - 22 W AC

IP
IP40
IK
08
Optic
Extra Wide Flood
Degrees
101.4°
CCT
3000 K
CRI
92
Delivered lumens
1773 lm
Finishes
Embossed
Installation position
Wall lights, Ceiling
Control
DALI
Efficiency
80.6 lm/W
Source Type
topLED

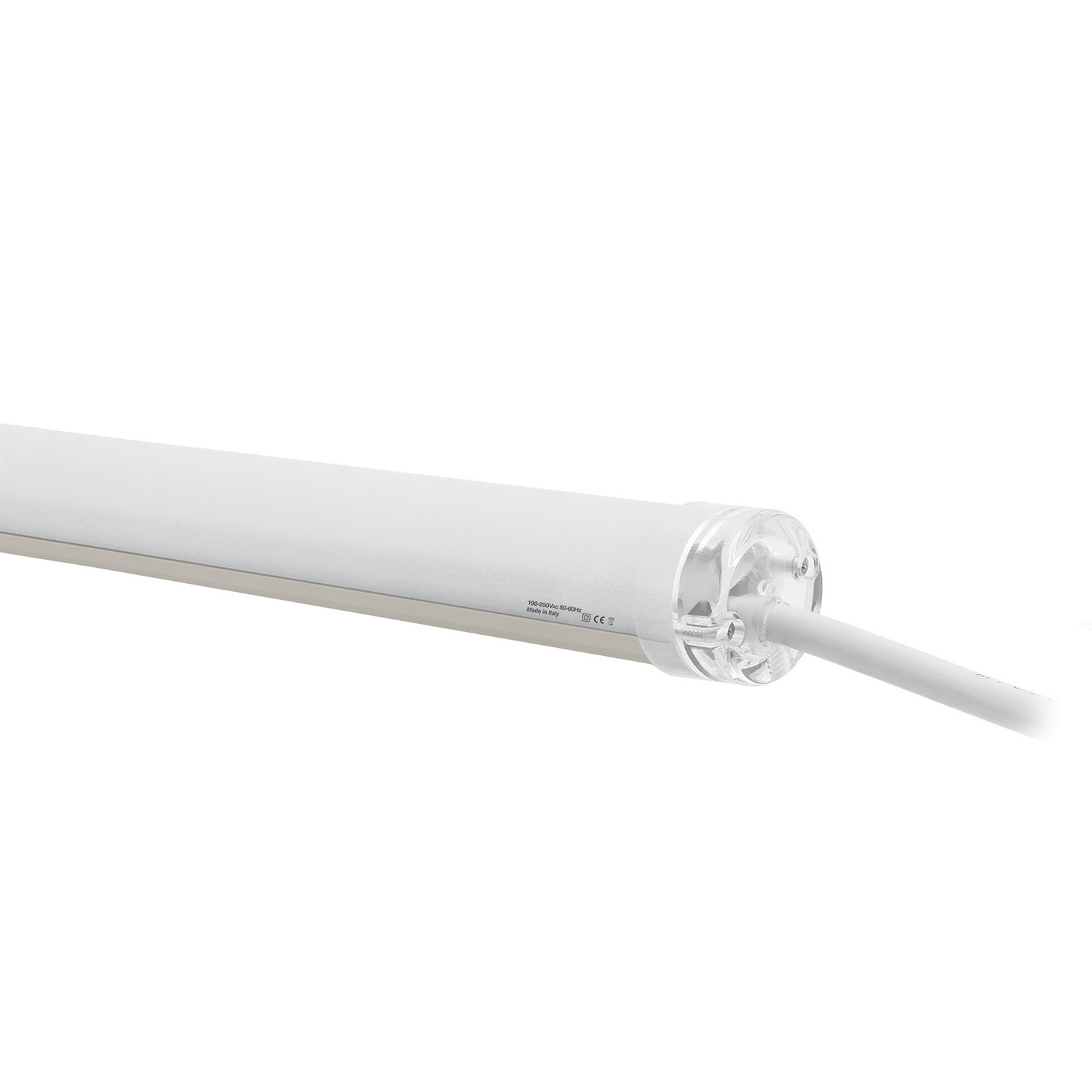

Single emission lines for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 144 topled LEDs with CCT of 3000 K and a CRI 92; the source luminous flux is 2479 lm, with a 124.0 lm/W nominal luminous efficacy.

The device body is made of aluminium and features a anodised aluminum finish, processed by means of anodisation; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 0.94 kg.

The total absorbed power is 22 W. The power supply cable is included and features a 1 m length.

The device features protection class II and can be wall lights or ceiling-mounted.

Compliant with the EN 60598-1 standard and its specific provisions.
