High Wired
94909W30
Indoor / Linear Lights, Industrial lighting
Lines | 90-264 V
84 topLED 20 W DC - 22 W AC












IP | IP40 |
---|---|
IK | 08 |
Optic | Diffused |
Degrees | 101.4° |
CCT | 3000 K |
CRI | 92 |
Delivered lumens | 1883 lm |
Finishes | Embossed |
Installation position | Wall lights, Ceiling |
Control | |
Efficiency | 85.6 lm/W |
Source Type | topLED |
Technical description

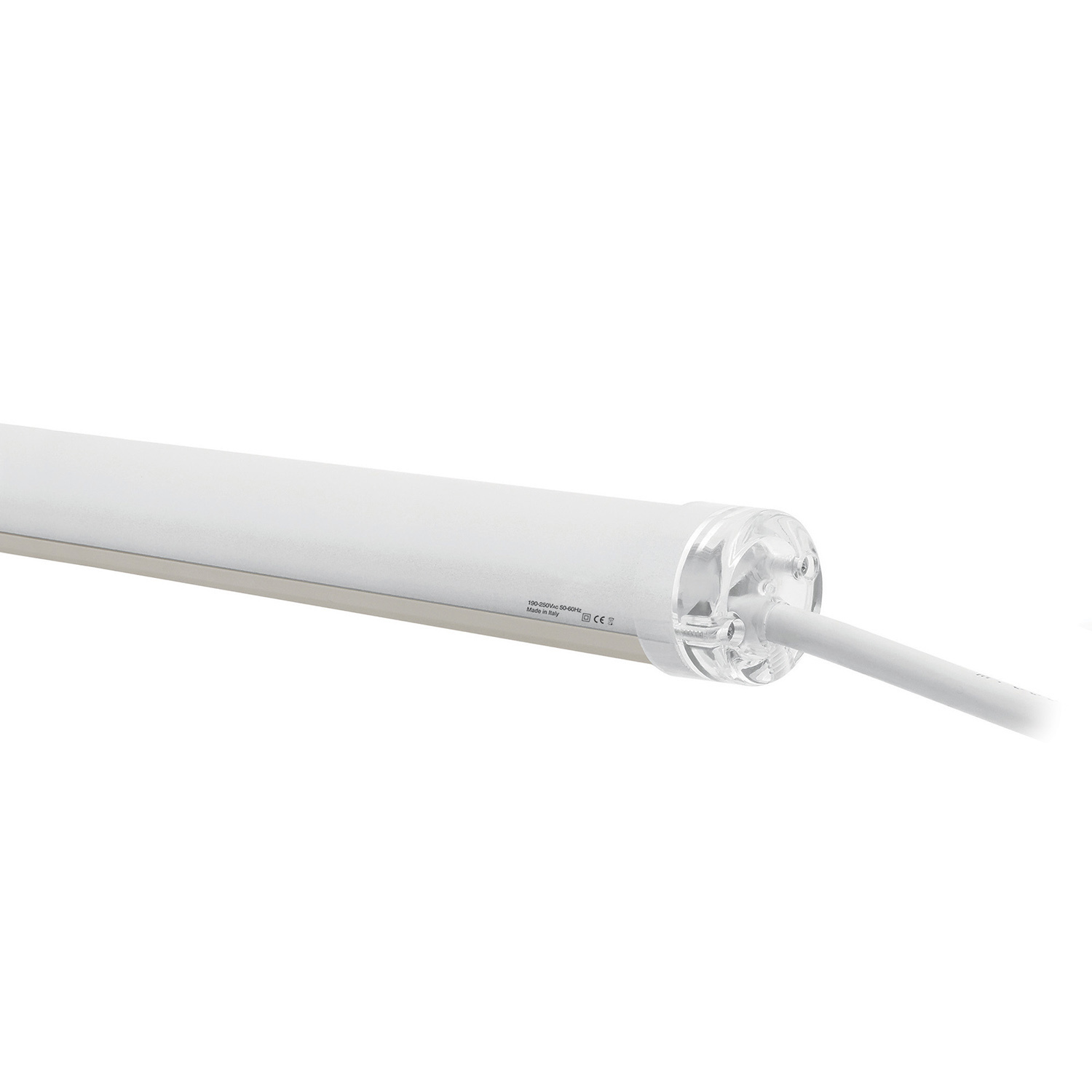

Single emission lines for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 84 topled LEDs with CCT of 3000 K and a CRI 92; the source luminous flux is 2318 lm, with a 115.9 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a anodised aluminum finish, processed by means of anodisation; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP40; the total weight is of 0.64 kg.
The total absorbed power is 22 W. The power supply cable is included and features a 1 m length.
The device features protection class II and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
