High Wired
94911W12
Indoor / Linear Lights, Industrial lighting
Lines | 198-264 V
36 topLED 13 W DC - 14.5 W AC












IP | IP44 |
---|---|
IK | 08 |
Optic | Extra Wide Flood |
Degrees | 111.4° |
CCT | 3000 K |
CRI | 92 |
Delivered lumens | 1230 lm |
Finishes | Embossed |
Installation position | Wall lights, Ceiling |
Control | |
Efficiency | 84.8 lm/W |
Source Type | topLED |
Technical description

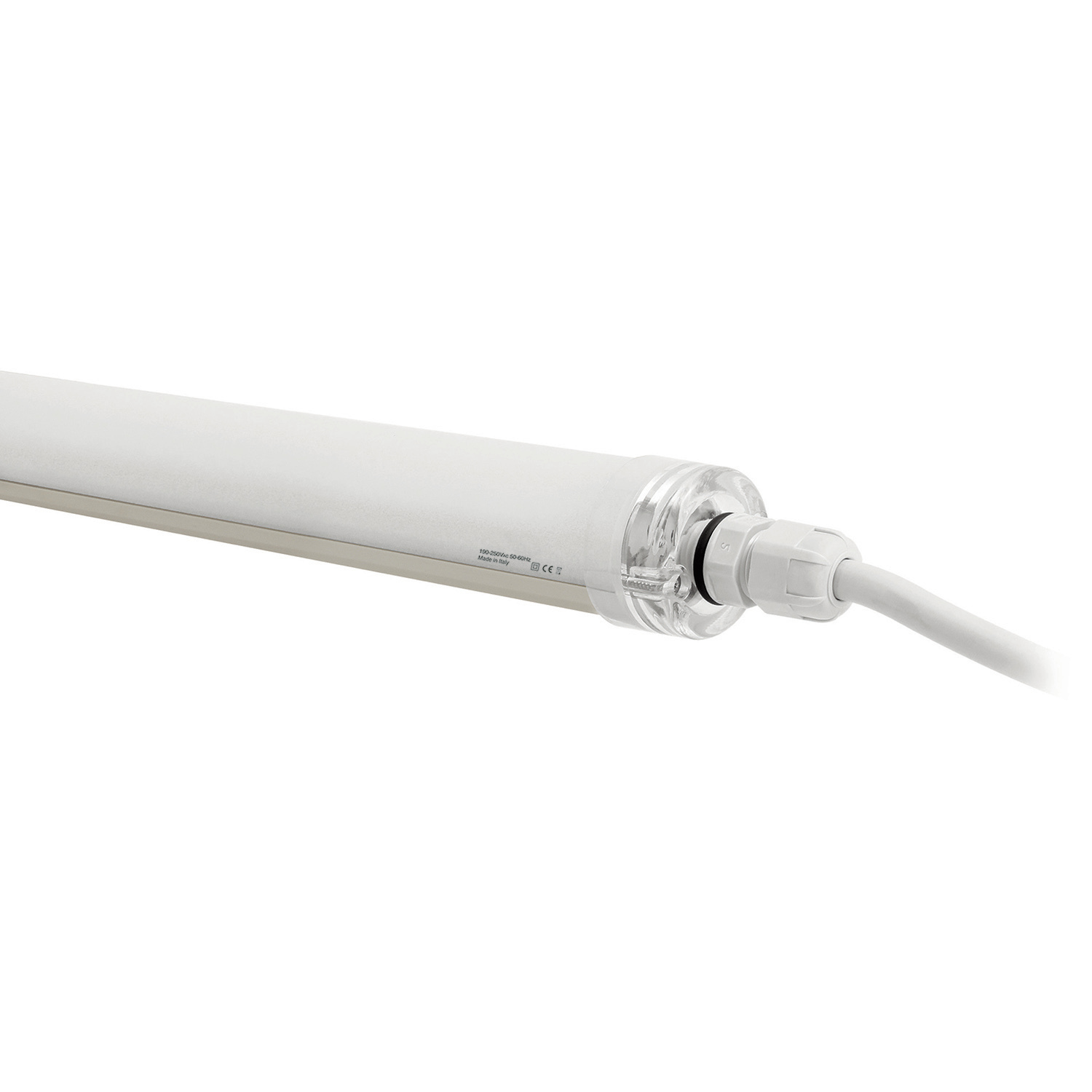

Single emission lines for indoor application. The warm white LED light source with a diffused light distribution is composed of 36 topled LEDs with CCT of 3000 K and a CRI 92; the source luminous flux is 1440 lm, with a 110.8 lm/W nominal luminous efficacy.
The device body is made of aluminium and features a anodised aluminum finish, processed by means of anodisation; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.47 kg.
The total absorbed power is 14.5 W. The power supply cable is included and features a 1 m length.
The device features protection class II and can be wall lights or ceiling-mounted.
Compliant with the EN 60598-1 standard and its specific provisions.
